Toyota LEXUS UX250H/200 — BRAKE MASTER CYLINDER

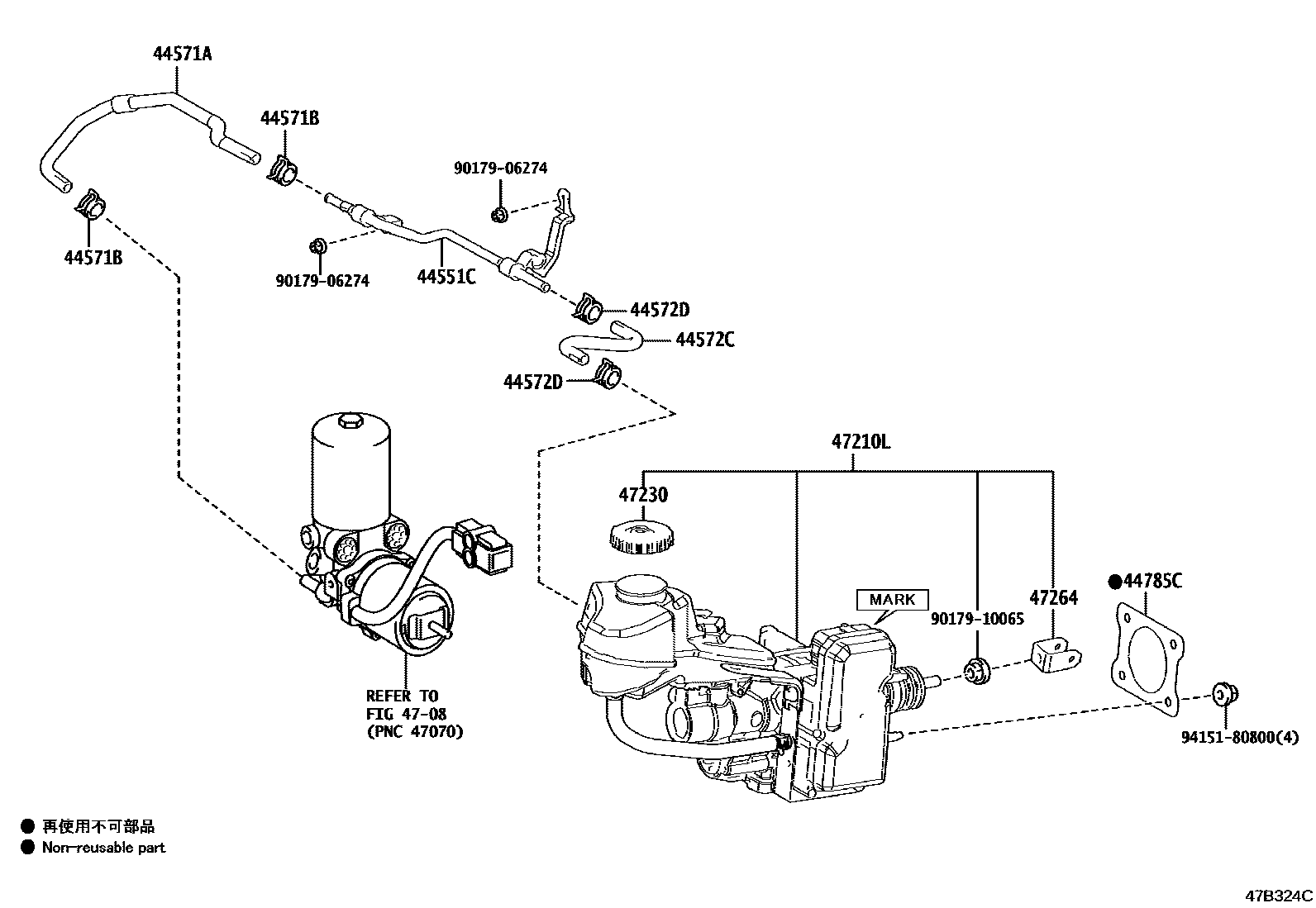

Parts diagram
44551CTUBE, BRAKE ACTUATOR, NO.1
44571AHOSE, BRAKE ACTUATOR, NO.1
44571BCLIP, HOSE(FOR BRAKE ACTUATOR HOSE NO.1)
44572CHOSE, BRAKE ACTUATOR, NO.2
44572DCLIP, HOSE(FOR BRAKE ACTUATOR HOSE NO.2)
44785CGASKET, BRAKE BOOSTER
4708BRAKE TUBE & CLAMP
→ Go to FIG 47-08
47210LBRAKE BOOSTER ASSY, W/MASTER CYLINDER
47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER
47230-33072
47230-47090
47230-33330
47264CLEVIS, MASTER CYLINDER PUSH ROD
47264-47010
9017906274
90179-06274
9017910065
90179-10065
9415180800
94151-80800

13 parts on this diagram · 2 diagrams in section

BRAKE MASTER CYLINDER for Toyota LEXUS UX250H/200

This section contains 22 genuine Toyota parts for the BRAKE MASTER CYLINDER system of the Toyota LEXUS UX250H/200. Key components include: TUBE, BRAKE ACTUATOR, NO.1, HOSE, BRAKE ACTUATOR, NO.1, CLIP, HOSE(FOR BRAKE ACTUATOR HOSE NO.1), HOSE, BRAKE ACTUATOR, NO.2, CLIP, HOSE(FOR BRAKE ACTUATOR HOSE NO.2).
