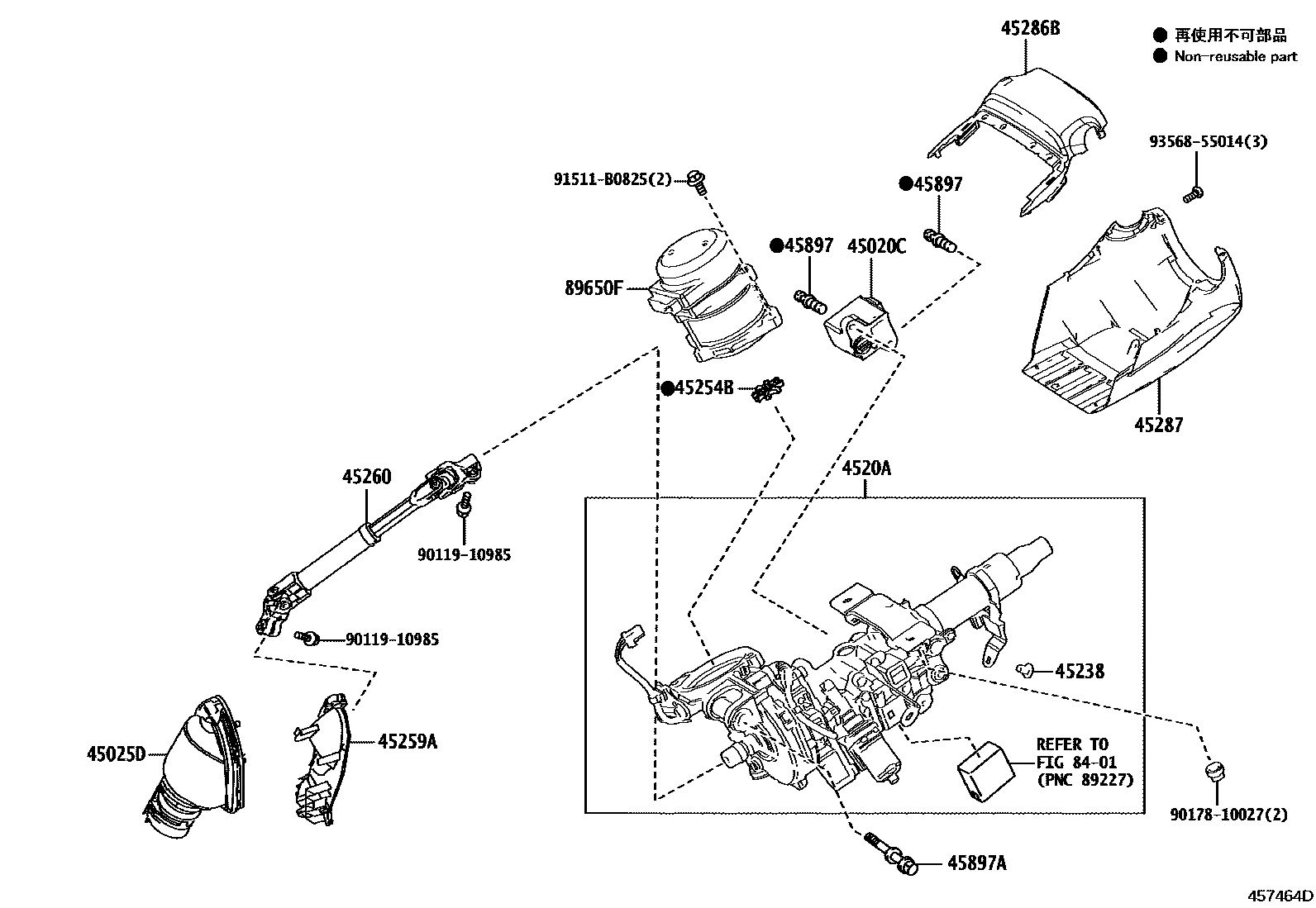

STEERING COLUMN & SHAFT

45020CACTUATOR ASSY, STEERING LOCK(W/ECU)

main45020-42270i201811-202108

KOREA SPEC

main45020-48090supersedes 45020-33240i201810-202207

F SPORT&AUDIO-EMV & 8SPEAKER; LUXURY PACKAGE&FRONT SEAT ADJUSTER-*DRP(8WAY POWER) & *DRS(SEAT MEMORY)&AUDIO-EMV& 8SPEAKER; PREMIUM PACKAGE&AUDIO-EMV & 8SPEAKER

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

main45025-76010i201810-202207

4520ACOLUMN SUB-ASSY, ELECTRIC POWER STEERING

main4520A-76040supersedes 4520A-12160i201810-202207

F SPORT&AUDIO-EMV & 8SPEAKER; LUXURY PACKAGE&FRONT SEAT ADJUSTER-*DRP(8WAY POWER) & *DRS(SEAT MEMORY)&AUDIO-EMV& 8SPEAKER; PREMIUM PACKAGE&AUDIO-EMV & 8SPEAKER

45238CLAMP, BOLT(FOR STEERING FLEXIBLE COUPLING)

main45238-11010supersedes 45238-52010i201810-202207

F SPORT&AUDIO-EMV & 8SPEAKER; LUXURY PACKAGE&FRONT SEAT ADJUSTER-*DRP(8WAY POWER) & *DRS(SEAT MEMORY)&AUDIO-EMV& 8SPEAKER; PREMIUM PACKAGE&AUDIO-EMV & 8SPEAKER

45254BDAMPER, ELECTRIC POWER STEERING MOTOR SHAFT

main45254-28040i201810-202207

45259ASHEET, COLUMN HOLE COVER SILENCER

main45259-76030i201810-202207

45260SHAFT ASSY, STEERING INTERMEDIATE, NO.2

main45260-76030i201810-202207

45286BCOVER, STEERING COLUMN, UPR

main45286-76020-C0i201810-202207

BLACK,TRIM0#,1#,2#,3#,4#,8#

45287COVER, STEERING COLUMN, LWR

main45024-76030-C0supersedes 45024-76020-C0i201810-202207

F SPORT&AUDIO-EMV & 8SPEAKER,BLACK,TRIM0#,1#,2#,3#,4#,8#; LUXURY PACKAGE&FRONT SEAT ADJUSTER-*DRP(8WAY POWER) & *DRS(SEAT MEMORY)&AUDIO-EMV& 8SPEAKER,BLACK,TRIM0#,1#,2#,3#,4#,8#; PREMIUM PACKAGE&AUDIO-EMV & 8SPEAKER,BLACK,TRIM0#,1#,2#,3#,4#,8#

45897BOLT, STEERING LOCK SET

main45897-12020×2i201810-202207

45897ABOLT, TILT STEERING PAWL SET

main90119-10981i201810-202207

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

89650FCOMPUTER ASSY, POWER STEERING W/MOTOR

main89650-76180i201810-202010

main89650-76320i202010-202207

9011910985

main90119-10985

9017810027

main90178-10027

91511B0825

main91511-B0825

9356855014

main93568-55014

17 parts on this diagram · 2 diagrams in section
