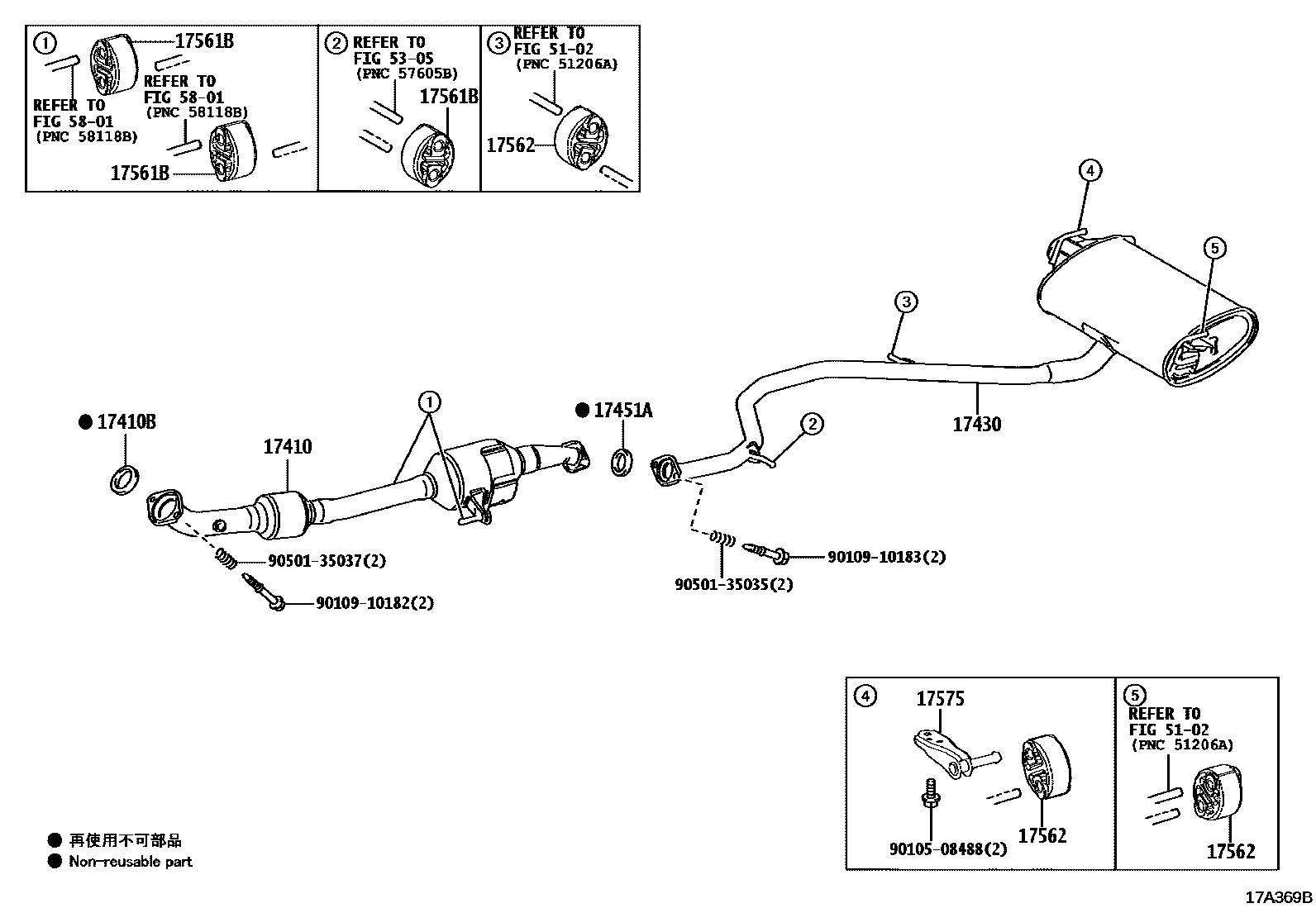

Toyota LEXUS UX250H/200 — EXHAUST PIPE
17410BGASKET, EXHAUST PIPE
17451AGASKET, EXHAUST PIPE, NO.2
17561BSUPPORT, EXHAUST PIPE, NO.1
17562SUPPORT, EXHAUST PIPE, NO.2
17575BRACKET, EXHAUST PIPE SUPPORT, NO.5
5102SUSPENSION CROSSMEMBER & UNDER COVER
5305FLOOR SIDE MEMBER
5801FLOOR PAN & LOWER BACK PANEL
9010508488
9010910182
9010910183
9050135035
9050135037
15 parts on this diagram · 2 diagrams in section
EXHAUST PIPE for Toyota LEXUS UX250H/200
This section contains 15 genuine Toyota parts for the EXHAUST PIPE system of the Toyota LEXUS UX250H/200. Key components include: PIPE ASSY, EXHAUST, FRONT, GASKET, EXHAUST PIPE, PIPE ASSY, EXHAUST, TAIL, GASKET, EXHAUST PIPE, NO.2, SUPPORT, EXHAUST PIPE, NO.1.
