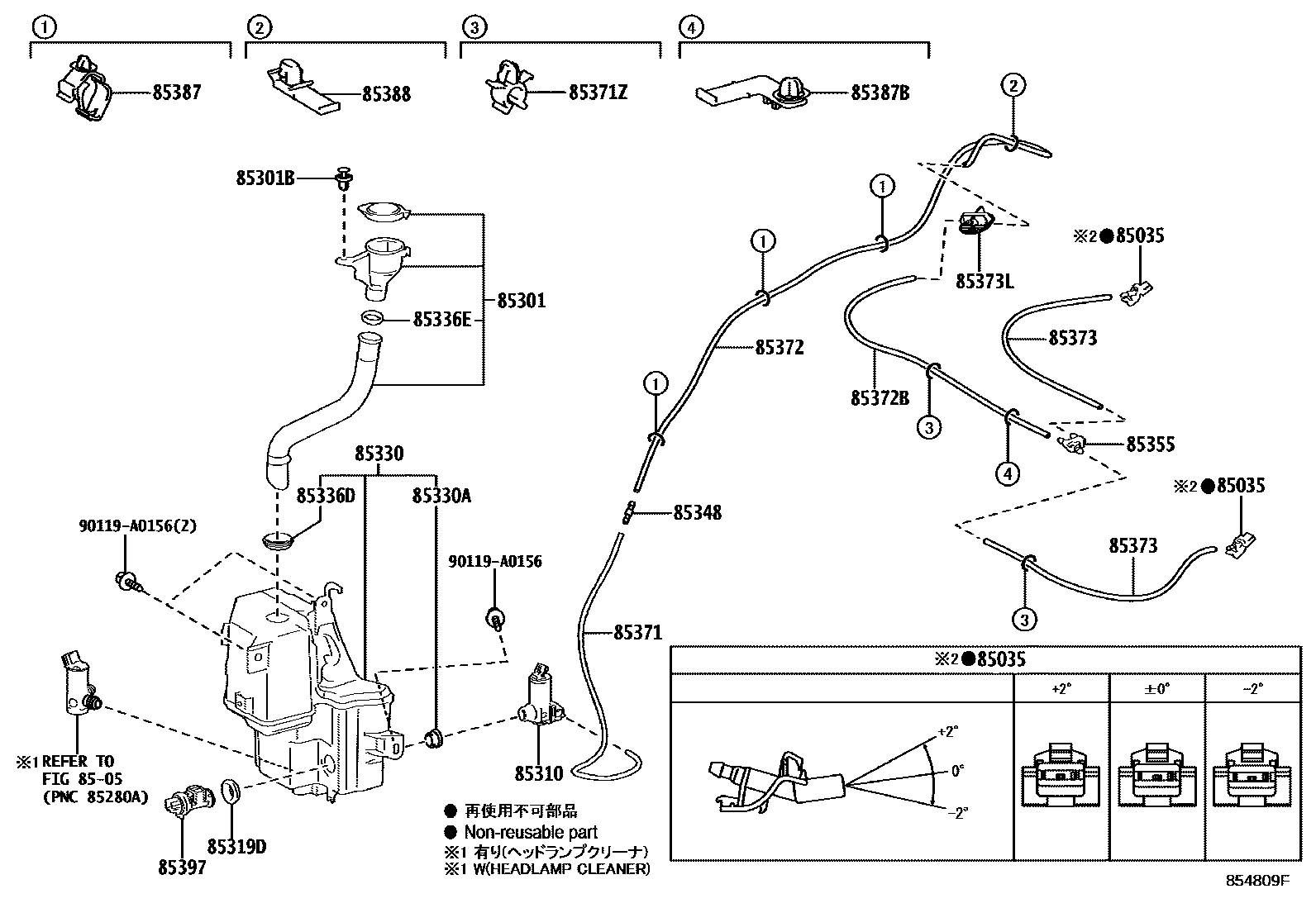

WINDSHIELD WASHER

85035NOZZLE SUB-ASSY, WASHER

main85381-78030×2i202203

ANGLE 0

main85381-78040×2i202203

ANGLE -2

main85381-78050×2i202203

ANGLE +2

8505HEADLAMP CLEANER

→ Go to FIG 85-05

85301INLET SUB-ASSY, WASHER

main85301-F6010i202203-202508

85301BCLIP, WASHER

main90467-07215i202203

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-0E031i202203

85319DPACKING, FRONT WASHER

main85319-AA020i202203-202508

85330JAR ASSY, WINDSHIELD WASHER

main85315-F6020i202203-202508

CANADA SPEC&HEADLAMP-LED(TRINOCULAR FULL LED) & WITH(*AHS); HEADLAMP-LED(TRINOCULAR FULL LED) & WITH(*AHB)

85330ABUSH, WINDSHIELD WASHER JAR

main90099-32089i202203-202508

85336DPACKING, WINDSHIELD WASHER JAR

main85336-30160i202203-202508

85336EPACKING, WINDSHIELD WASHER INLET HOSE

main85336-42320i202203-202508

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85375-0E010i202203-202508

85355VALVE, WINDSHIELD WASHER HOSE

main85321-28020i202203-202508

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90068-33082i202203-202508

L=620; L=620,CANADA SPEC&HEADLAMP-LED(TRINOCULAR FULL LED) & WITH(*AHS); L=620,HEADLAMP-LED(TRINOCULAR FULL LED) & WITH(*AHB)

85371ZCLAMP, WASHER HOSE

main90469-07011×2i202203-202508

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90068-33017i202203-202508

L=1250

85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2

main90099-33080i202203-202508

L=760

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90068-33415×2i202203-202508

L=490

85373LGROMMET, WASHER

main85373-12050i202203-202508

85387CLAMP NO.1 (FOR WINDSEIELD WASHER)

main82711-16790×3i202203-202508

85387BCLAMP, WASHER, NO.3

main82711-10500i202203-202508

85388CLAMP NO.2 (FOR WINDSEIELD WASHER)

main82711-3A640i202203-202508

85397SWITCH ASSY,LEVEL WARNING

main85397-AA040i202203-202508

90119A0156

main90119-A0156

23 parts on this diagram · 1 diagram in section
