WIRELESS DOOR LOCK

89000COMPUTER ASSY, DIGITAL KEY

main89000-78011i202203-202207

CARD KEY-WITH & W(DIGITAL KEY:DOOR&LUGGAGE&SEAT); CARD KEY-WITHOUT&W(DIGITAL KEY:DOOR&LUGGAGE&SEAT)

main89000-78012i202207-202304

CARD KEY-WITH & W(DIGITAL KEY:DOOR&LUGGAGE&SEAT); CARD KEY-WITHOUT&W(DIGITAL KEY:DOOR&LUGGAGE&SEAT)

main89000-78031i202304-202309

CARD KEY-WITH & W(DIGITAL KEY:DOOR&LUGGAGE&SEAT); CARD KEY-WITHOUT&W(DIGITAL KEY:DOOR&LUGGAGE&SEAT)

main89000-78080i202310-202507

CARD KEY-WITH & W(DIGITAL KEY:DOOR&LUGGAGE&SEAT); CARD KEY-WITHOUT&W(DIGITAL KEY:DOOR&LUGGAGE&SEAT)

890D0RECEIVER ASSY, BLE DOOR DIGITAL KEY

main890D0-78010×2i202203-202508

CARD KEY-WITH & W(DIGITAL KEY:DOOR&LUGGAGE&SEAT); CARD KEY-WITHOUT&W(DIGITAL KEY:DOOR&LUGGAGE&SEAT)

890F0RECEIVER ASSY, BLE LUGGAGE DIGITAL KEY

CARD KEY-WITH & W(DIGITAL KEY:DOOR&LUGGAGE&SEAT); CARD KEY-WITHOUT&W(DIGITAL KEY:DOOR&LUGGAGE&SEAT)

890G0RECEIVER ASSY, BLE INDOOR DIGITAL KEY

main890G0-78010i202203-202508

CARD KEY-WITH & W(DIGITAL KEY:DOOR&LUGGAGE&SEAT); CARD KEY-WITHOUT&W(DIGITAL KEY:DOOR&LUGGAGE&SEAT)

89747BUZZER, WIRELESS DOOR LOCK

8974FCASE, W/O DIGITAL KEY

main8974F-78010×2i202203-202508

89990ACOMPUTER ASSY, SMART KEY

main899H0-F6010i202203-202304

main899H0-F6020i202203-202304

main899H0-F6030i202304-202404

main899H0-F6040i202304-202404

main899H0-F6050i202404-202508

main899H0-F6060i202404-202508

89997ANTENNA, ELECTRICAL KEY

main89997-0E050i202203-202508

899A0ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.1

main899A0-12130i202203-202508

899A0AANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.2

main899A0-42030i202203-202508

899A0BANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.3

main899A0-12130i202203-202508

9008017244

9011906A07

90119A0255

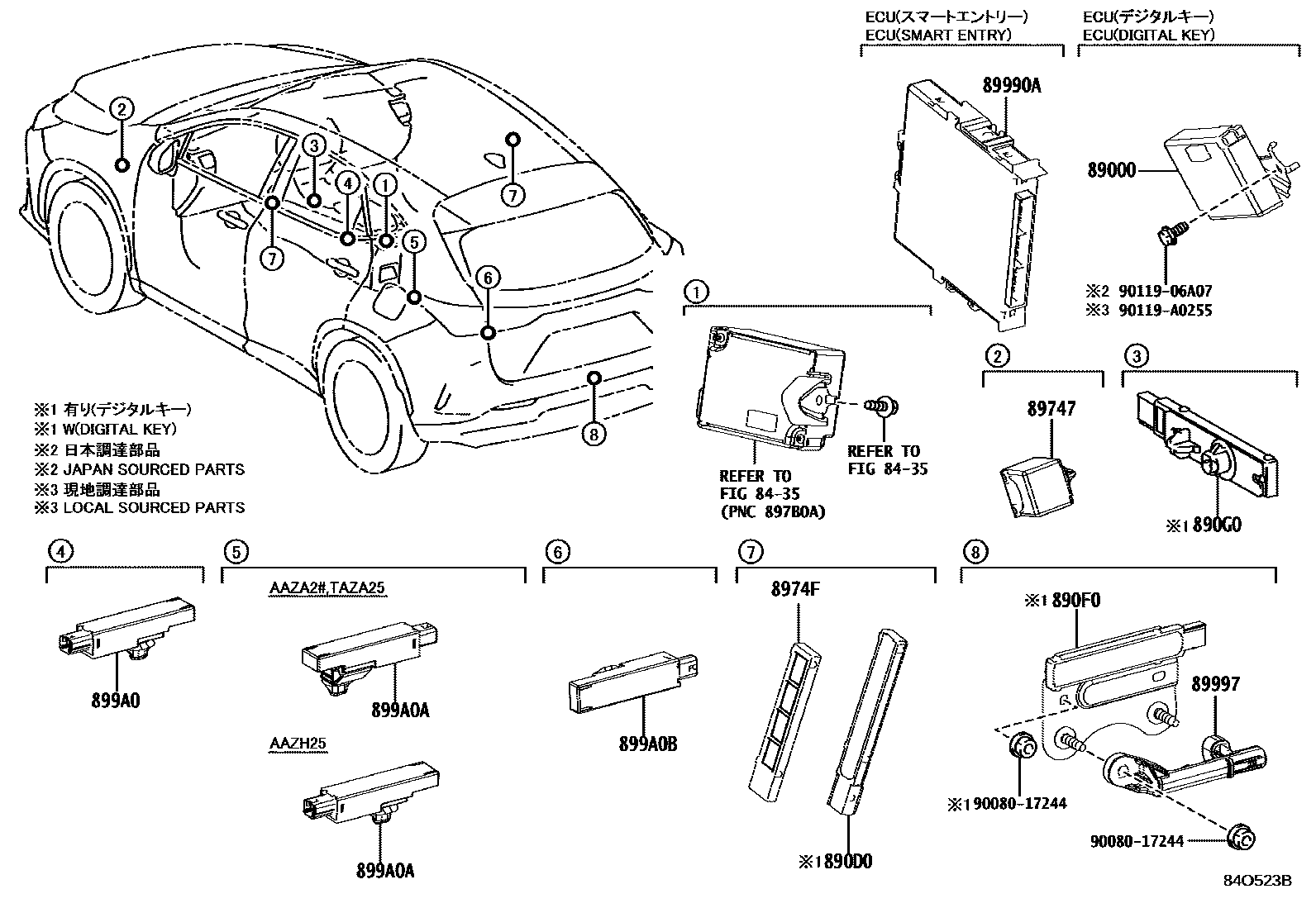

14 parts on this diagram · 1 diagram in section
