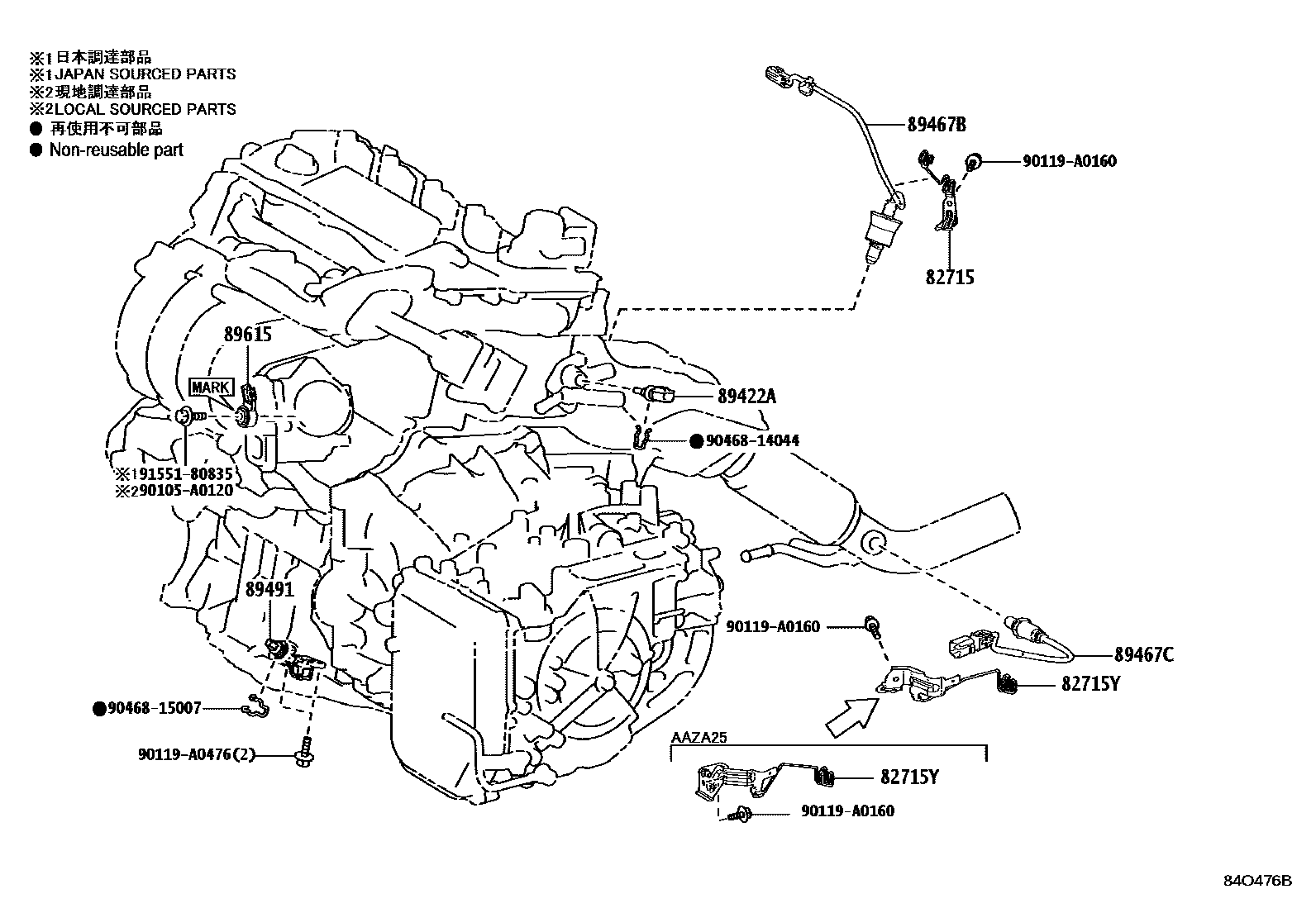

SWITCH & RELAY & COMPUTER

0001 1ENGINE & TRANSMISSION 0002 1ENGINE & TRANSMISSION 0003 1ENGINE & TRANSMISSION 0004 1ENGINE ROOM 0005 1ENGINE ROOM RELAY BLOCK 0006 1ENGINE ROOM RELAY BLOCK 0007 1COWL 0008 1INSTRUMENT PANEL 0009 1CONSOLE BOX 0010 1STEERING 0011 1SEAT 0012 1DOOR & ROOF 0013 1FLOOR & BACK DOOR 0014 1FLOOR & BACK DOOR 0015 1FLOOR RELAY BLOCK

82715BRACKET,WIRING HARNESS CLAMP

main82715-33K11iAAZA2#202203-202508

main82715-33V10iAAZH25202203

main8946A-78020iTAZA25202203

82715YBRACKET, WIRING HARNESS CLAMP, NO.3

main82715-42K60iAAZA20202203-202508

main82715-42K70iAAZA25202203-202508

main8946A-78030iTAZA25202203

89422ASENSOR, WATER TEMPERATURE

main89422-33040iAAZA2#202203-202508

89467BSENSOR, AIR FUEL RATIO

main89467-06250iAAZA2#202203-202508

main89467-F6010iTAZA25202203

main89467-F6030iAAZH25202203

89467CSENSOR, AIR FUEL RATIO, NO.2

main89467-0R100iAAZH25202203-202404

main89467-0R200iAAZA2#202404-202508

main89467-F6020iTAZA25202203

89491SENSOR, ENGINE OIL LEVEL

main89491-33051iAAZA2#,AAZH25,TAZA25202203-202204

sub89491-33052

main89491-33052iAAZA2#202205-202508

89615SENSOR, KNOCK CONTROL

main89615-06010iAAZA2#202203-202508

(L),MARK 89615-06010

main89615-06010iAAZH25202203

(L)

main89615-20090iAAZA2#202203-202508

(J),MARK 89615-20090

main89615-20090iAAZH25202203

(J)

main89615-78010iTAZA25202203

(J)

main89615-78010iAAZA2#202207-202508

(J),MARK 89615-78010

main89615-F6010iAAZA2#202207-202508

(L),MARK 89615-F6010

main89615-F6010iTAZA25202203

(L)

90105A0120

main90105-A0120

90119A0160

main90119-A0160

90119A0476

main90119-A0476

9046814044

main90468-14044

9046815007

main90468-15007

9155180835

main91551-80835

13 parts on this diagram · 15 diagrams in section
