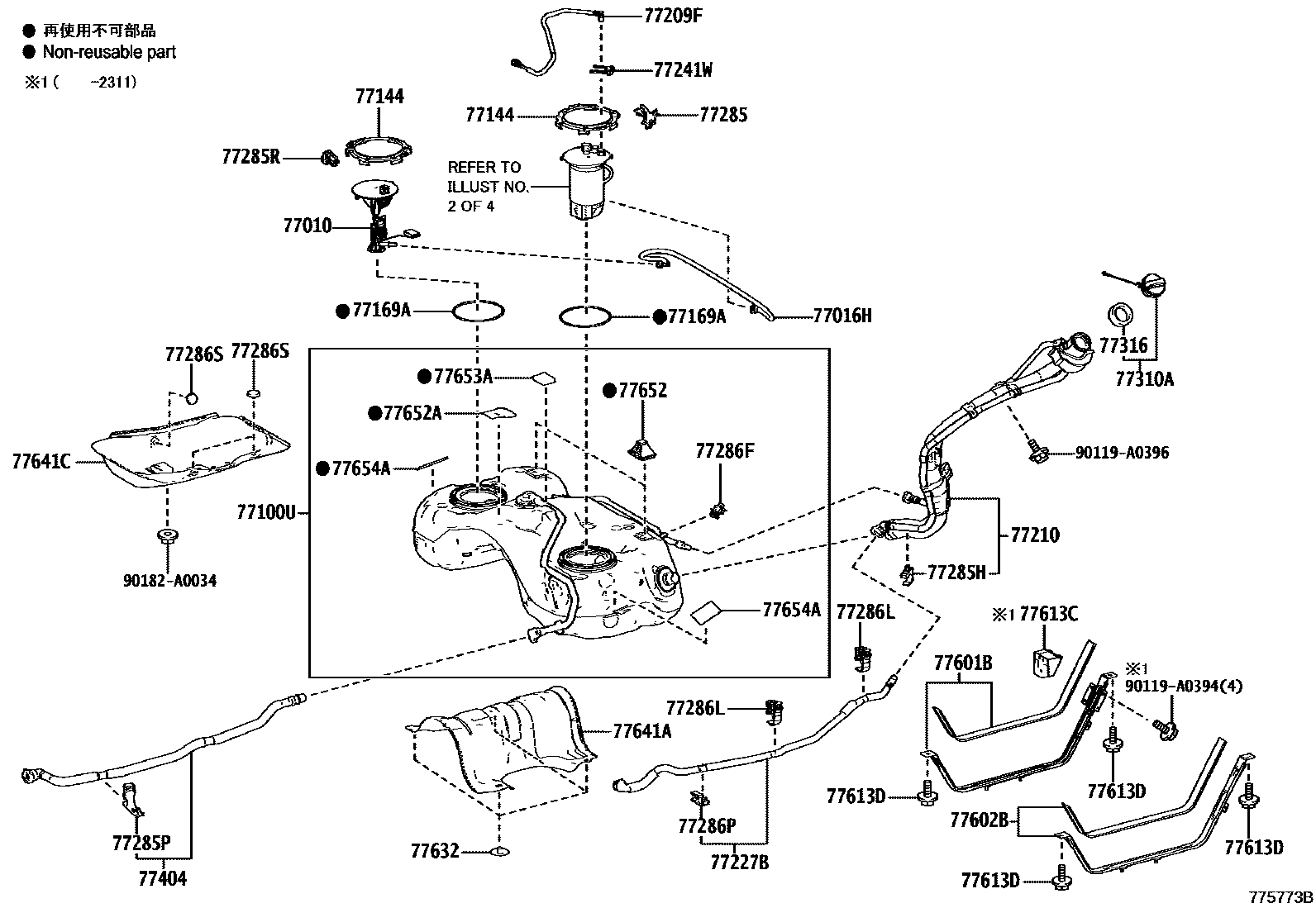

FUEL TANK & TUBE

0001 1FUEL TANK 0002 1FUEL TANK 0003 1FUEL PUMP 0004 1FUEL PUMP 0005 1FUEL TUBE 0006 1FUEL TUBE 0007 1FUEL TUBE 0008 1FUEL LID OPENER

77010TUBE ASSY, FUEL TANK VENT

main77010-0R010iAAZA2#202203-202508

77016HTUBE SUB-ASSY, FUEL RETURN VENT

main77016-F6010iAAZA2#202203-202508

77100UTANK SUB-ASSY, FUEL

main77001-0R101iAAZH25202203

main77001-F6010iTAZA25202203

77144RETAINER, FUEL PUMP GAUGE

main77144-06040iAAZH25; TAZA25202203

(L)

main77144-30030iAAZH25; TAZA25202203

(J)

77169AGASKET, FUEL SUCTION TUBE SET

main77169-0R030×2iAAZA2#,TAZA25202203-202308

main77169-F4050×2iAAZA2#202308-202508

77209FTUBE SUB-ASSY, FUEL TANK MAIN

main77209-0R070iAAZH25202203

main77209-F6010iAAZA2#202203-202508

main77209-F6030iTAZA25202203

77210PIPE ASSY, FUEL TANK FILLER

main77210-F6010iTAZA25202203

main77210-F6020iAAZH25202203

77227BTUBE, FUEL TANK BREATHER, NO.7

main77227-0R030iAAZA2#202203-202508

main77227-0R100iAAZH25202203

77241WCLIP, TUBE JOINT

main77241-02010iAAZA2#202203-202508

77285BRACKET, FUEL TUBE

main77285-F6020iAAZA2#202203-202508

77285HCLAMP, FUEL TUBE, NO.1

main77285-0R100iAAZA2#202203-202508

77285PCLAMP, NO.1(FOR CHARCOAL CANISTER PIPE)

main77285-0R080iAAZA2#202203-202508

main77285-42200×2iAAZH25202203

77285RCLAMP, FUEL TUBE, NO.1

main77285-06240iAAZH25202203-202404

main77285-78080iAAZH25202404

77286FCLAMP, FUEL TUBE, NO.2

main77286-0R100iAAZA2#202203-202508

77286LCLAMP, FUEL TUBE, NO.5

main77285-0R090×2iAAZA2#202203-202508

77286PCLAMP, FUEL TUBE, NO.8

main77285-0R070iAAZA2#202203-202508

77286SCUSHION, FUEL TANK PROTECTOR

main77286-12110×3iAAZA2#202203-202508

77310ACAP ASSY, FUEL TANK

main77300-06090iAAZH25202203

main77300-07040iAAZA2#202203-202508

77316GASKET, FUEL TANK CAP

main77316-06090iAAZA2#202203-202508

77404HOSE SUB-ASSY, FUEL TANK VENT

main77404-48140iAAZH25202203

(J)

main77404-F6020iAAZH25202203

(L)

main77404-F6030iTAZA25202203

77601BBAND SUB-ASSY, FUEL TANK, NO.1 RH

main77601-0R040iTAZA25202311

main77601-F6020iAAZA2#,TAZA25202203-202311

77602BBAND SUB-ASSY, FUEL TANK, NO.1 LH

main77601-0R040iAAZA2#202203-202508

77613CBAND, FUEL TANK, NO.3

main77613-F6010iAAZA2#,TAZA25202203-202311

77613DBOLT, FUEL TANK BAND SET, NO.2

main90119-A0509×2iAAZH25; TAZA25202203

77632BRACKET, FUEL TANK, NO.2

main77512-06060×4iAAZA2#202203-202508

77641APROTECTOR, FUEL TANK, NO.1

main77606-0R020iAAZH25202203

main77606-F6010iAAZA2#202203-202508

main77606-F6020iTAZA25202203-202211

77641CPROTECTOR ASSY, FUEL TANK

main77641-0R070iAAZA2#202203-202508

77652CUSHION, FUEL TANK, NO.1

main77651-06060×2iAAZA2#202203-202508

77652ACUSHION, FUEL TANK, NO.2

main77651-06130iAAZA2#202203-202508

77653ACUSHION, FUEL TANK, NO.3

main77652-12100iAAZA2#202203-202508

77654ACUSHION, FUEL TANK, NO.4

main77652-47010×2iAAZA2#202203-202508

90119A0394

main90119-A0394

90119A0396

main90119-A0396

90182A0034

main90182-A0034

34 parts on this diagram · 8 diagrams in section
