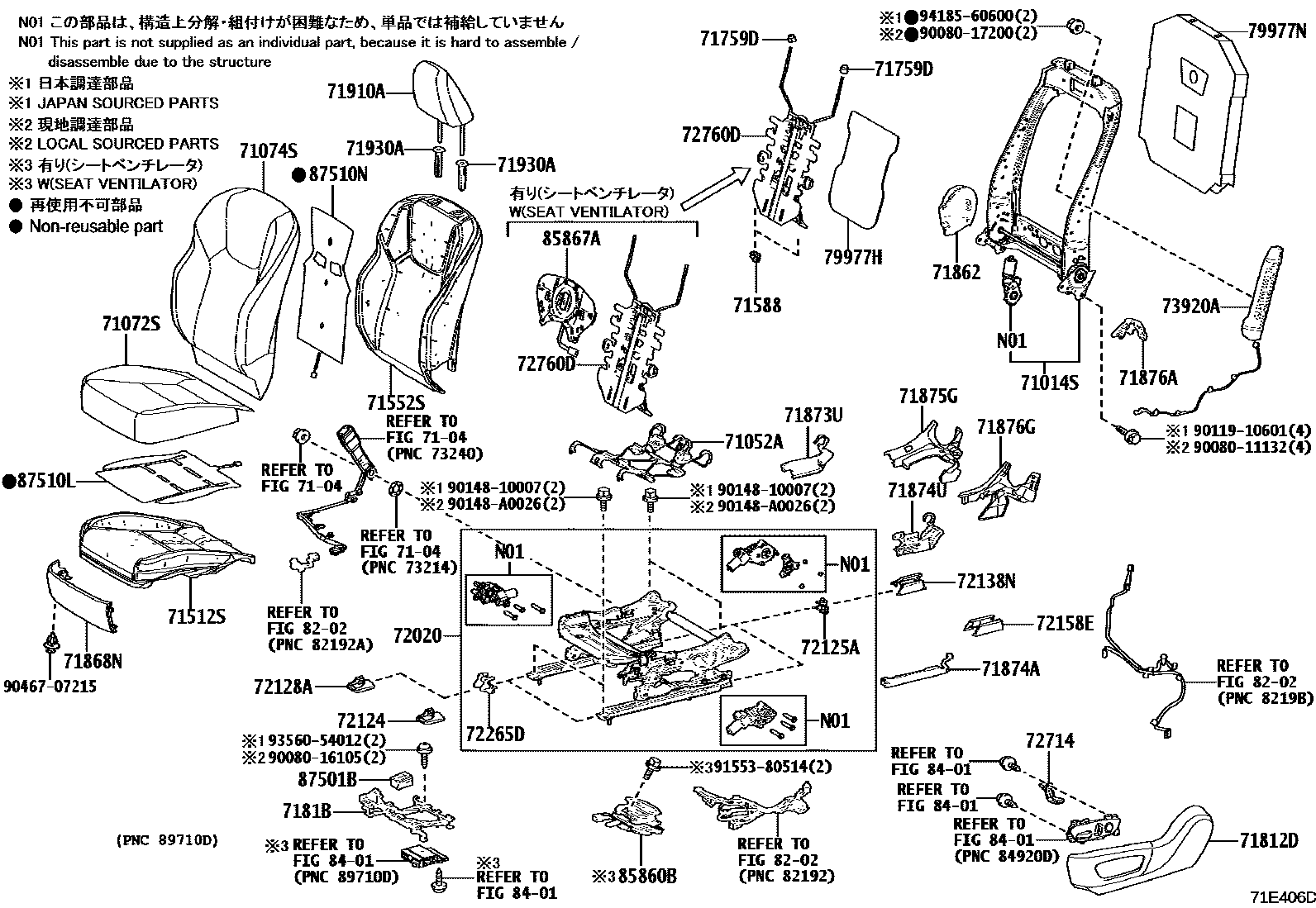

71014SFRAME SUB-ASSY, FRONT SEATBACK, LH

main71014-0E100supersedes 71014-0E090i202203

FRONT SEAT ADJUSTER-8WAY POWER & WITH(SEAT MEMORY = *DRS); LUXURY PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT ADJUSTER-8WAY POWER& WITH(SEAT MEMORY = *DRS); LUXURY PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(*DRP & *RES)&FRONT SEAT ADJUSTER-8WAY POWER & WITH(SEAT MEMORY = *DRS); PREMIUM PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT ADJUSTER-8WAY POWER& WITH(SEAT MEMORY = *DRS); PREMIUM PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(*DRP & *RES)&FRONT SEAT ADJUSTER-8WAY POWER & WITH(SEAT MEMORY = *DRS); PREMIUM PACKAGE&SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT ADJUSTER-8WAY POWER & WITH(SEAT MEMORY = *DRS); SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT ADJUSTER-8WAY POWER & WITH(SEAT MEMORY = *DRS); SEAT HEATER-WITH(*DRP & *RES)&FRONT SEAT ADJUSTER-8WAY POWER & WITH(SEAT MEMORY =*DRS)

71052ASPRING SUB-ASSY, FRONT SEAT CUSHION, LH

main71051-02360i202203-202508

71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

main71072-F6020-20i202203-202404

FRONT SEAT ADJUSTER-8WAY POWER & WITH(SEAT MEMORY = *DRS),RICH CREAM,TRIM0#; PREMIUM PACKAGE&SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT ADJUSTER-8WAY POWER & WITH(SEAT MEMORY = *DRS),RICH CREAM,TRIM0#; SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT ADJUSTER-8WAY POWER & WITH(SEAT MEMORY = *DRS),RICH CREAM,TRIM0#

main71072-F6020-21i202203

FRONT SEAT ADJUSTER-8WAY POWER & WITH(SEAT MEMORY = *DRS),BLACK,TRIM2#; PREMIUM PACKAGE&SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT ADJUSTER-8WAY POWER & WITH(SEAT MEMORY = *DRS),BLACK,TRIM2#; SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT ADJUSTER-8WAY POWER & WITH(SEAT MEMORY = *DRS),BLACK,TRIM2#

main71072-F6020-D5i202203

FRONT SEAT ADJUSTER-8WAY POWER & WITH(SEAT MEMORY = *DRS),DK.ROSE,TRIM3#; PREMIUM PACKAGE&SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT ADJUSTER-8WAY POWER & WITH(SEAT MEMORY = *DRS),DK.ROSE,TRIM3#; SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT ADJUSTER-8WAY POWER & WITH(SEAT MEMORY = *DRS),DK.ROSE,TRIM3#

main71072-F6020-E5i202203

FRONT SEAT ADJUSTER-8WAY POWER & WITH(SEAT MEMORY = *DRS),HAZEL,TRIM4#; PREMIUM PACKAGE&SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT ADJUSTER-8WAY POWER & WITH(SEAT MEMORY = *DRS),HAZEL,TRIM4#; SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT ADJUSTER-8WAY POWER & WITH(SEAT MEMORY = *DRS),HAZEL,TRIM4#

main71072-F6030-A0i202404

LUXURY PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT ADJUSTER-8WAY POWER& WITH(SEAT MEMORY = *DRS),FROMAGE,TRIM0#; LUXURY PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(*DRP & *RES)&FRONT SEAT ADJUSTER-8WAY POWER & WITH(SEAT MEMORY = *DRS),FROMAGE,TRIM0#; PREMIUM PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT ADJUSTER-8WAY POWER& WITH(SEAT MEMORY = *DRS),FROMAGE,TRIM0#; PREMIUM PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(*DRP & *RES)&FRONT SEAT ADJUSTER-8WAY POWER & WITH(SEAT MEMORY = *DRS),FROMAGE,TRIM0#

main71072-F6030-C6i202203-202404

LUXURY PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT ADJUSTER-8WAY POWER& WITH(SEAT MEMORY = *DRS),RICH CREAM,TRIM0#; LUXURY PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(*DRP & *RES)&FRONT SEAT ADJUSTER-8WAY POWER & WITH(SEAT MEMORY = *DRS),RICH CREAM,TRIM0#; PREMIUM PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT ADJUSTER-8WAY POWER& WITH(SEAT MEMORY = *DRS),RICH CREAM,TRIM0#; PREMIUM PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(*DRP & *RES)&FRONT SEAT ADJUSTER-8WAY POWER & WITH(SEAT MEMORY = *DRS),RICH CREAM,TRIM0#

main71072-F6030-C7i202203

LUXURY PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT ADJUSTER-8WAY POWER& WITH(SEAT MEMORY = *DRS),BLACK/LT.GRAY NO.831,TRIM2#; LUXURY PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(*DRP & *RES)&FRONT SEAT ADJUSTER-8WAY POWER & WITH(SEAT MEMORY = *DRS),BLACK/LT.GRAY NO.831,TRIM2#; PREMIUM PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT ADJUSTER-8WAY POWER& WITH(SEAT MEMORY = *DRS),BLACK/LT.GRAY NO.831,TRIM2#; PREMIUM PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(*DRP & *RES)&FRONT SEAT ADJUSTER-8WAY POWER & WITH(SEAT MEMORY = *DRS),BLACK/LT.GRAY NO.831,TRIM2#

main71072-F6030-D4supersedes 71072-F6080-D6i202203-202508

LUXURY PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT ADJUSTER-8WAY POWER& WITH(SEAT MEMORY = *DRS),DK.ROSE,TRIM3#; LUXURY PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(*DRP & *RES)&FRONT SEAT ADJUSTER-8WAY POWER & WITH(SEAT MEMORY = *DRS),DK.ROSE,TRIM3#; PREMIUM PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT ADJUSTER-8WAY POWER& WITH(SEAT MEMORY = *DRS),DK.ROSE,TRIM3#; PREMIUM PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(*DRP & *RES)&FRONT SEAT ADJUSTER-8WAY POWER & WITH(SEAT MEMORY = *DRS),DK.ROSE,TRIM3#

main71072-F6030-E4supersedes 71072-F6080-E6i202203-202508

LUXURY PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT ADJUSTER-8WAY POWER& WITH(SEAT MEMORY = *DRS),HAZEL,TRIM4#; LUXURY PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(*DRP & *RES)&FRONT SEAT ADJUSTER-8WAY POWER & WITH(SEAT MEMORY = *DRS),HAZEL,TRIM4#; PREMIUM PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT ADJUSTER-8WAY POWER& WITH(SEAT MEMORY = *DRS),HAZEL,TRIM4#; PREMIUM PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(*DRP & *RES)&FRONT SEAT ADJUSTER-8WAY POWER & WITH(SEAT MEMORY = *DRS),HAZEL,TRIM4#

main71072-F6080-22i202203-202404

PREMIUM PACKAGE&SEAT COVER MATERIAL-SYNTHETIC LEATHER,RICH CREAM,TRIM0#; RICH CREAM,TRIM0#; SEAT COVER MATERIAL-SYNTHETIC LEATHER,RICH CREAM,TRIM0#

main71072-F6080-23i202203

BLACK,TRIM2#; PREMIUM PACKAGE&SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM2#; SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM2#

main71072-F6080-D6i202203

DK.ROSE,TRIM3#; PREMIUM PACKAGE&SEAT COVER MATERIAL-SYNTHETIC LEATHER,DK.ROSE,TRIM3#; SEAT COVER MATERIAL-SYNTHETIC LEATHER,DK.ROSE,TRIM3#

main71072-F6080-E6i202203

HAZEL,TRIM4#; PREMIUM PACKAGE&SEAT COVER MATERIAL-SYNTHETIC LEATHER,HAZEL,TRIM4#; SEAT COVER MATERIAL-SYNTHETIC LEATHER,HAZEL,TRIM4#

71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71074-F6020-A6i202203-202404

FRONT SEAT ADJUSTER-8WAY POWER & WITH(SEAT MEMORY = *DRS),RICH CREAM,TRIM0#; PREMIUM PACKAGE&SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT ADJUSTER-8WAY POWER & WITH(SEAT MEMORY = *DRS),RICH CREAM,TRIM0#; SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT ADJUSTER-8WAY POWER & WITH(SEAT MEMORY = *DRS),RICH CREAM,TRIM0#

main71074-F6020-C6supersedes 71074-F6080-C7i202203

FRONT SEAT ADJUSTER-8WAY POWER & WITH(SEAT MEMORY = *DRS),BLACK,TRIM2#; PREMIUM PACKAGE&SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT ADJUSTER-8WAY POWER & WITH(SEAT MEMORY = *DRS),BLACK,TRIM2#; SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT ADJUSTER-8WAY POWER & WITH(SEAT MEMORY = *DRS),BLACK,TRIM2#

main71074-F6020-D6supersedes 71074-F6080-D7i202203

FRONT SEAT ADJUSTER-8WAY POWER & WITH(SEAT MEMORY = *DRS),DK.ROSE,TRIM3#; PREMIUM PACKAGE&SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT ADJUSTER-8WAY POWER & WITH(SEAT MEMORY = *DRS),DK.ROSE,TRIM3#; SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT ADJUSTER-8WAY POWER & WITH(SEAT MEMORY = *DRS),DK.ROSE,TRIM3#

main71074-F6020-E6supersedes 71074-F6080-E7i202203

FRONT SEAT ADJUSTER-8WAY POWER & WITH(SEAT MEMORY = *DRS),HAZEL,TRIM4#; PREMIUM PACKAGE&SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT ADJUSTER-8WAY POWER & WITH(SEAT MEMORY = *DRS),HAZEL,TRIM4#; SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT ADJUSTER-8WAY POWER & WITH(SEAT MEMORY = *DRS),HAZEL,TRIM4#

main71074-F6030-A4i202203-202404

LUXURY PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT ADJUSTER-8WAY POWER& WITH(SEAT MEMORY = *DRS),RICH CREAM,TRIM0#; LUXURY PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(*DRP & *RES)&FRONT SEAT ADJUSTER-8WAY POWER & WITH(SEAT MEMORY = *DRS),RICH CREAM,TRIM0#; PREMIUM PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT ADJUSTER-8WAY POWER& WITH(SEAT MEMORY = *DRS),RICH CREAM,TRIM0#; PREMIUM PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(*DRP & *RES)&FRONT SEAT ADJUSTER-8WAY POWER & WITH(SEAT MEMORY = *DRS),RICH CREAM,TRIM0#

main71074-F6030-A5i202404-202508

LUXURY PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT ADJUSTER-8WAY POWER& WITH(SEAT MEMORY = *DRS),FROMAGE,TRIM0#; LUXURY PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(*DRP & *RES)&FRONT SEAT ADJUSTER-8WAY POWER & WITH(SEAT MEMORY = *DRS),FROMAGE,TRIM0#; PREMIUM PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT ADJUSTER-8WAY POWER& WITH(SEAT MEMORY = *DRS),FROMAGE,TRIM0#; PREMIUM PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(*DRP & *RES)&FRONT SEAT ADJUSTER-8WAY POWER & WITH(SEAT MEMORY = *DRS),FROMAGE,TRIM0#

main71074-F6030-C4i202203

LUXURY PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT ADJUSTER-8WAY POWER& WITH(SEAT MEMORY = *DRS),BLACK,TRIM2#; LUXURY PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(*DRP & *RES)&FRONT SEAT ADJUSTER-8WAY POWER & WITH(SEAT MEMORY = *DRS),BLACK,TRIM2#; PREMIUM PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT ADJUSTER-8WAY POWER& WITH(SEAT MEMORY = *DRS),BLACK,TRIM2#; PREMIUM PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(*DRP & *RES)&FRONT SEAT ADJUSTER-8WAY POWER & WITH(SEAT MEMORY = *DRS),BLACK,TRIM2#

main71074-F6030-D5supersedes 71074-F6080-D7i202203-202508

LUXURY PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT ADJUSTER-8WAY POWER& WITH(SEAT MEMORY = *DRS),DK.ROSE,TRIM3#; LUXURY PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(*DRP & *RES)&FRONT SEAT ADJUSTER-8WAY POWER & WITH(SEAT MEMORY = *DRS),DK.ROSE,TRIM3#; PREMIUM PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT ADJUSTER-8WAY POWER& WITH(SEAT MEMORY = *DRS),DK.ROSE,TRIM3#; PREMIUM PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(*DRP & *RES)&FRONT SEAT ADJUSTER-8WAY POWER & WITH(SEAT MEMORY = *DRS),DK.ROSE,TRIM3#

main71074-F6030-E5supersedes 71074-F6080-E7i202203-202508

LUXURY PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT ADJUSTER-8WAY POWER& WITH(SEAT MEMORY = *DRS),HAZEL,TRIM4#; LUXURY PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(*DRP & *RES)&FRONT SEAT ADJUSTER-8WAY POWER & WITH(SEAT MEMORY = *DRS),HAZEL,TRIM4#; PREMIUM PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT ADJUSTER-8WAY POWER& WITH(SEAT MEMORY = *DRS),HAZEL,TRIM4#; PREMIUM PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(*DRP & *RES)&FRONT SEAT ADJUSTER-8WAY POWER & WITH(SEAT MEMORY = *DRS),HAZEL,TRIM4#

main71074-F6080-A7i202203-202404

PREMIUM PACKAGE&SEAT COVER MATERIAL-SYNTHETIC LEATHER,RICH CREAM,TRIM0#; RICH CREAM,TRIM0#; SEAT COVER MATERIAL-SYNTHETIC LEATHER,RICH CREAM,TRIM0#

main71074-F6080-C7i202203

BLACK,TRIM2#; PREMIUM PACKAGE&SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM2#; SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM2#

main71074-F6080-D7i202203

DK.ROSE,TRIM3#; PREMIUM PACKAGE&SEAT COVER MATERIAL-SYNTHETIC LEATHER,DK.ROSE,TRIM3#; SEAT COVER MATERIAL-SYNTHETIC LEATHER,DK.ROSE,TRIM3#

main71074-F6080-E7i202203

HAZEL,TRIM4#; PREMIUM PACKAGE&SEAT COVER MATERIAL-SYNTHETIC LEATHER,HAZEL,TRIM4#; SEAT COVER MATERIAL-SYNTHETIC LEATHER,HAZEL,TRIM4#

71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

main71512-F6010i202203

PREMIUM PACKAGE&SEAT COVER MATERIAL-SYNTHETIC LEATHER; SEAT COVER MATERIAL-SYNTHETIC LEATHER

main71512-F6020i202203

FRONT SEAT ADJUSTER-8WAY POWER & WITH(SEAT MEMORY = *DRS); LUXURY PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT ADJUSTER-8WAY POWER& WITH(SEAT MEMORY = *DRS); LUXURY PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(*DRP & *RES)&FRONT SEAT ADJUSTER-8WAY POWER & WITH(SEAT MEMORY = *DRS); PREMIUM PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT ADJUSTER-8WAY POWER& WITH(SEAT MEMORY = *DRS); PREMIUM PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(*DRP & *RES)&FRONT SEAT ADJUSTER-8WAY POWER & WITH(SEAT MEMORY = *DRS); PREMIUM PACKAGE&SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT ADJUSTER-8WAY POWER & WITH(SEAT MEMORY = *DRS); SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT ADJUSTER-8WAY POWER & WITH(SEAT MEMORY = *DRS)

71552SPAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71552-F6011i202203

PREMIUM PACKAGE&SEAT COVER MATERIAL-SYNTHETIC LEATHER; SEAT COVER MATERIAL-SYNTHETIC LEATHER

main71552-F6021i202203

FRONT SEAT ADJUSTER-8WAY POWER & WITH(SEAT MEMORY = *DRS); LUXURY PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT ADJUSTER-8WAY POWER& WITH(SEAT MEMORY = *DRS); LUXURY PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(*DRP & *RES)&FRONT SEAT ADJUSTER-8WAY POWER & WITH(SEAT MEMORY = *DRS); PREMIUM PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT ADJUSTER-8WAY POWER& WITH(SEAT MEMORY = *DRS); PREMIUM PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(*DRP & *RES)&FRONT SEAT ADJUSTER-8WAY POWER & WITH(SEAT MEMORY = *DRS); PREMIUM PACKAGE&SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT ADJUSTER-8WAY POWER & WITH(SEAT MEMORY = *DRS); SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT ADJUSTER-8WAY POWER & WITH(SEAT MEMORY = *DRS)

71588PROTECTOR, FRONT SEATBACK EDGE, NO.2

main71587-0R010×2i202203-202508

71759DHOOK, FRONT SEATBACK, NO.2

main71759-0R020×2i202203-202508

71812DSHIELD, FRONT SEAT CUSHION, LH

main71812-F6010-C0i202203

BLACK,TRIM0#,2#,3#; BLACK,TRIM0#,2#,3#,4#

7181BHOLDER, FRONT SEAT CUSHION WIRE HARNESS, LH

main7181B-0R010i202203-202508

71862SHIELD, FRONT SEAT CUSHION, INNER LH

main71862-0R100-C0i202203

BLACK,TRIM0#,2#,3#; BLACK,TRIM0#,2#,3#,4#

71868NSHIELD, FRONT SEAT CUSHION, FRONT LH

main71868-F6010-C0i202203

BLACK,TRIM0#,2#,3#; BLACK,TRIM0#,2#,3#,4#

71873SHIELD, FRONT SEAT CUSHION, LOWER RH

main71873-F6020-C0i202203

BLACK; BLACK,TRIM0#,2#,3#,4#

71873USHIELD, FRONT SEAT CUSHION, LOWER RH

main71874-0R020i202203-202508

71874SHIELD, FRONT SEAT CUSHION, LOWER LH

main71873-0E170-C0i202203

BLACK; BLACK,TRIM0#,2#,3#,4#

71874ASHIELD, FRONT SEAT CUSHION, LOWER LH

main71874-F6010i202203-202508

71874USHIELD, FRONT SEAT CUSHION, LOWER LH

main71874-0R030i202203-202508

71875GCOVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT)

main71876-0R030-C0i202203

BLACK,TRIM0#,2#,3#; BLACK,TRIM0#,2#,3#,4#

71876ACOVER, RECLINING ADJUSTER INSIDE, LH

main71876-08230-C0i202203

BLACK

71876GCOVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT)

main71876-0R040-C0i202203

BLACK,TRIM0#,2#,3#; BLACK,TRIM0#,2#,3#,4#

71910AHEADREST ASSY, FRONT SEAT

main71910-F6010-C2×2i202203

BLACK,TRIM0#,2#; PREMIUM PACKAGE&SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT ADJUSTER-8WAY POWER & WITH(SEAT MEMORY = *DRS),BLACK,TRIM0#,2#; PREMIUM PACKAGE&SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM0#,2#; SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT ADJUSTER-8WAY POWER & WITH(SEAT MEMORY = *DRS),BLACK,TRIM0#,2#; SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM0#,2#

main71910-F6010-D2×2supersedes 71910-F6030-D0i202203

DK.ROSE,TRIM3#; PREMIUM PACKAGE&SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT ADJUSTER-8WAY POWER & WITH(SEAT MEMORY = *DRS),DK.ROSE,TRIM3#; PREMIUM PACKAGE&SEAT COVER MATERIAL-SYNTHETIC LEATHER,DK.ROSE,TRIM3#; SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT ADJUSTER-8WAY POWER & WITH(SEAT MEMORY = *DRS),DK.ROSE,TRIM3#; SEAT COVER MATERIAL-SYNTHETIC LEATHER,DK.ROSE,TRIM3#

main71910-F6010-E2×2i202203

HAZEL,TRIM4#; PREMIUM PACKAGE&SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT ADJUSTER-8WAY POWER & WITH(SEAT MEMORY = *DRS),HAZEL,TRIM4#; PREMIUM PACKAGE&SEAT COVER MATERIAL-SYNTHETIC LEATHER,HAZEL,TRIM4#; SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT ADJUSTER-8WAY POWER & WITH(SEAT MEMORY = *DRS),HAZEL,TRIM4#; SEAT COVER MATERIAL-SYNTHETIC LEATHER,HAZEL,TRIM4#

main71910-F6030-A1×2i202203-202304

WHITE,TRIM0#

main71910-F6030-C0×2i202203

BLACK,TRIM2#

main71910-F6020-A1×2i202404-202508

LUXURY PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT ADJUSTER-8WAY POWER& WITH(SEAT MEMORY = *DRS),FROMAGE,TRIM0#; LUXURY PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(*DRP & *RES)&FRONT SEAT ADJUSTER-8WAY POWER & WITH(SEAT MEMORY = *DRS),FROMAGE,TRIM0#; PREMIUM PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT ADJUSTER-8WAY POWER& WITH(SEAT MEMORY = *DRS),FROMAGE,TRIM0#; PREMIUM PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(*DRP & *RES)&FRONT SEAT ADJUSTER-8WAY POWER & WITH(SEAT MEMORY = *DRS),FROMAGE,TRIM0#

main71910-F6020-C2×2i202203

LUXURY PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT ADJUSTER-8WAY POWER& WITH(SEAT MEMORY = *DRS),BLACK/LT.GRAY NO.831,TRIM2#; LUXURY PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(*DRP & *RES)&FRONT SEAT ADJUSTER-8WAY POWER & WITH(SEAT MEMORY = *DRS),BLACK/LT.GRAY NO.831,TRIM2#; PREMIUM PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT ADJUSTER-8WAY POWER& WITH(SEAT MEMORY = *DRS),BLACK/LT.GRAY NO.831,TRIM2#; PREMIUM PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(*DRP & *RES)&FRONT SEAT ADJUSTER-8WAY POWER & WITH(SEAT MEMORY = *DRS),BLACK/LT.GRAY NO.831,TRIM2#

main71910-F6020-C3×2i202203-202404

LUXURY PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT ADJUSTER-8WAY POWER& WITH(SEAT MEMORY = *DRS),BLACK/ORANGE NO.85,TRIM0#; LUXURY PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(*DRP & *RES)&FRONT SEAT ADJUSTER-8WAY POWER & WITH(SEAT MEMORY = *DRS),BLACK/ORANGE NO.85,TRIM0#; PREMIUM PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT ADJUSTER-8WAY POWER& WITH(SEAT MEMORY = *DRS),BLACK/ORANGE NO.85,TRIM0#; PREMIUM PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(*DRP & *RES)&FRONT SEAT ADJUSTER-8WAY POWER & WITH(SEAT MEMORY = *DRS),BLACK/ORANGE NO.85,TRIM0#

main71910-F6020-D2×2i202203

LUXURY PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT ADJUSTER-8WAY POWER& WITH(SEAT MEMORY = *DRS),DK.ROSE,TRIM3#; LUXURY PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(*DRP & *RES)&FRONT SEAT ADJUSTER-8WAY POWER & WITH(SEAT MEMORY = *DRS),DK.ROSE,TRIM3#; PREMIUM PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT ADJUSTER-8WAY POWER& WITH(SEAT MEMORY = *DRS),DK.ROSE,TRIM3#; PREMIUM PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(*DRP & *RES)&FRONT SEAT ADJUSTER-8WAY POWER & WITH(SEAT MEMORY = *DRS),DK.ROSE,TRIM3#

main71910-F6020-E2×2i202203

LUXURY PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT ADJUSTER-8WAY POWER& WITH(SEAT MEMORY = *DRS),HAZEL,TRIM4#; LUXURY PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(*DRP & *RES)&FRONT SEAT ADJUSTER-8WAY POWER & WITH(SEAT MEMORY = *DRS),HAZEL,TRIM4#; PREMIUM PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT ADJUSTER-8WAY POWER& WITH(SEAT MEMORY = *DRS),HAZEL,TRIM4#; PREMIUM PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(*DRP & *RES)&FRONT SEAT ADJUSTER-8WAY POWER & WITH(SEAT MEMORY = *DRS),HAZEL,TRIM4#

71930ASUPPORT ASSY, FRONT SEAT HEADREST

main71930-0R070-C0×2i202203

W(LOCK),BLACK,TRIM0#,2#,3#,4#

main71931-0R050-C0×2i202203-202508

W/O(LOCK),BLACK,TRIM0#,2#,3#,4#

72020ADJUSTER ASSY, FRONT SEAT, LH

main72020-F6020supersedes 72020-F6010i202203

FRONT SEAT ADJUSTER-8WAY POWER & WITH(SEAT MEMORY = *DRS); LUXURY PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT ADJUSTER-8WAY POWER& WITH(SEAT MEMORY = *DRS); LUXURY PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(*DRP & *RES)&FRONT SEAT ADJUSTER-8WAY POWER & WITH(SEAT MEMORY = *DRS); PREMIUM PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT ADJUSTER-8WAY POWER& WITH(SEAT MEMORY = *DRS); PREMIUM PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(*DRP & *RES)&FRONT SEAT ADJUSTER-8WAY POWER & WITH(SEAT MEMORY = *DRS); PREMIUM PACKAGE&SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT ADJUSTER-8WAY POWER & WITH(SEAT MEMORY = *DRS); SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT ADJUSTER-8WAY POWER & WITH(SEAT MEMORY = *DRS); SEAT HEATER-WITH(*DRP & *RES)&FRONT SEAT ADJUSTER-8WAY POWER & WITH(SEAT MEMORY =*DRS)

72124COVER, SEAT TRACK BRACKET, OUTER FRONT LH

main72123-02110i202203-202508

72125ACOVER, SEAT TRACK, UPPER REAR

main72125-0R020×4i202203-202508

72128ACOVER, SEAT TRACK BRACKET, INNER FRONT LH

main72123-02110i202203-202508

72138NCOVER, SEAT TRACK BRACKET, OUTER REAR LH

main72137-02370i202203-202508

72158ECOVER, SEAT TRACK BRACKET, INNER REAR LH

main72158-02230i202203-202508

72265DCOVER, SEAT TRACK UPPER RAIL

main72265-0R020×4i202203-202508

72714BRACKET, SEAT ADJUSTER SHIELD CLAMP, LH

main72714-F6010i202203-202508

72760DADJUSTER ASSY, LUMBAR SUPPORT, LH

main72750-08020supersedes 72760-0R040i202203-202508

LUXURY PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT ADJUSTER-8WAY POWER& WITH(SEAT MEMORY = *DRS); LUXURY PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(*DRP & *RES)&FRONT SEAT ADJUSTER-8WAY POWER & WITH(SEAT MEMORY = *DRS); PREMIUM PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT ADJUSTER-8WAY POWER& WITH(SEAT MEMORY = *DRS); PREMIUM PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(*DRP & *RES)&FRONT SEAT ADJUSTER-8WAY POWER & WITH(SEAT MEMORY = *DRS)

main72760-0R050i202203

FRONT SEAT ADJUSTER-8WAY POWER & WITH(SEAT MEMORY = *DRS); PREMIUM PACKAGE&SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT ADJUSTER-8WAY POWER & WITH(SEAT MEMORY = *DRS); SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT ADJUSTER-8WAY POWER & WITH(SEAT MEMORY = *DRS); SEAT HEATER-WITH(*DRP & *RES)&FRONT SEAT ADJUSTER-8WAY POWER & WITH(SEAT MEMORY =*DRS)

73920AAIRBAG ASSY, FRONT SEAT, LH

main73920-0R080i202203-202508

79977HFELT, FRONT SEATBACK, LH

main79977-0R070i202203-202508

79977NFELT, SEATBACK

main79977-78020i202203-202508

8202WIRING & CLAMP

→ Go to FIG 82-02

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

85860BBLOWER ASSY, SEAT CUSHION CLIMATE CONTROL, LH

main85802-0R010i202203-202508

FRONT SEAT ADJUSTER-8WAY POWER & WITH(SEAT MEMORY = *DRS); LUXURY PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT ADJUSTER-8WAY POWER& WITH(SEAT MEMORY = *DRS); LUXURY PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(*DRP & *RES)&FRONT SEAT ADJUSTER-8WAY POWER & WITH(SEAT MEMORY = *DRS); PREMIUM PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT ADJUSTER-8WAY POWER& WITH(SEAT MEMORY = *DRS); PREMIUM PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(*DRP & *RES)&FRONT SEAT ADJUSTER-8WAY POWER & WITH(SEAT MEMORY = *DRS)

85867ABLOWER, SEATBACK CLIMATE CONTROL, LH

main85867-0R020i202203-202508

FRONT SEAT ADJUSTER-8WAY POWER & WITH(SEAT MEMORY = *DRS); LUXURY PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT ADJUSTER-8WAY POWER& WITH(SEAT MEMORY = *DRS); LUXURY PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(*DRP & *RES)&FRONT SEAT ADJUSTER-8WAY POWER & WITH(SEAT MEMORY = *DRS); PREMIUM PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT ADJUSTER-8WAY POWER& WITH(SEAT MEMORY = *DRS); PREMIUM PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(*DRP & *RES)&FRONT SEAT ADJUSTER-8WAY POWER & WITH(SEAT MEMORY = *DRS)

87501BCONTROL SUB-ASSY, SEAT HEATER, LH

main87501-0R030i202203-202508

87510LHEATER ASSY, FRONT SEAT CUSHION, LH

main87510-F6010i202203-202508

87510NHEATER ASSY, FRONT SEATBACK, LH

main87530-F6010i202203-202508

9008011132

main90080-11132

9008016105

main90080-16105

9008017200

main90080-17200
