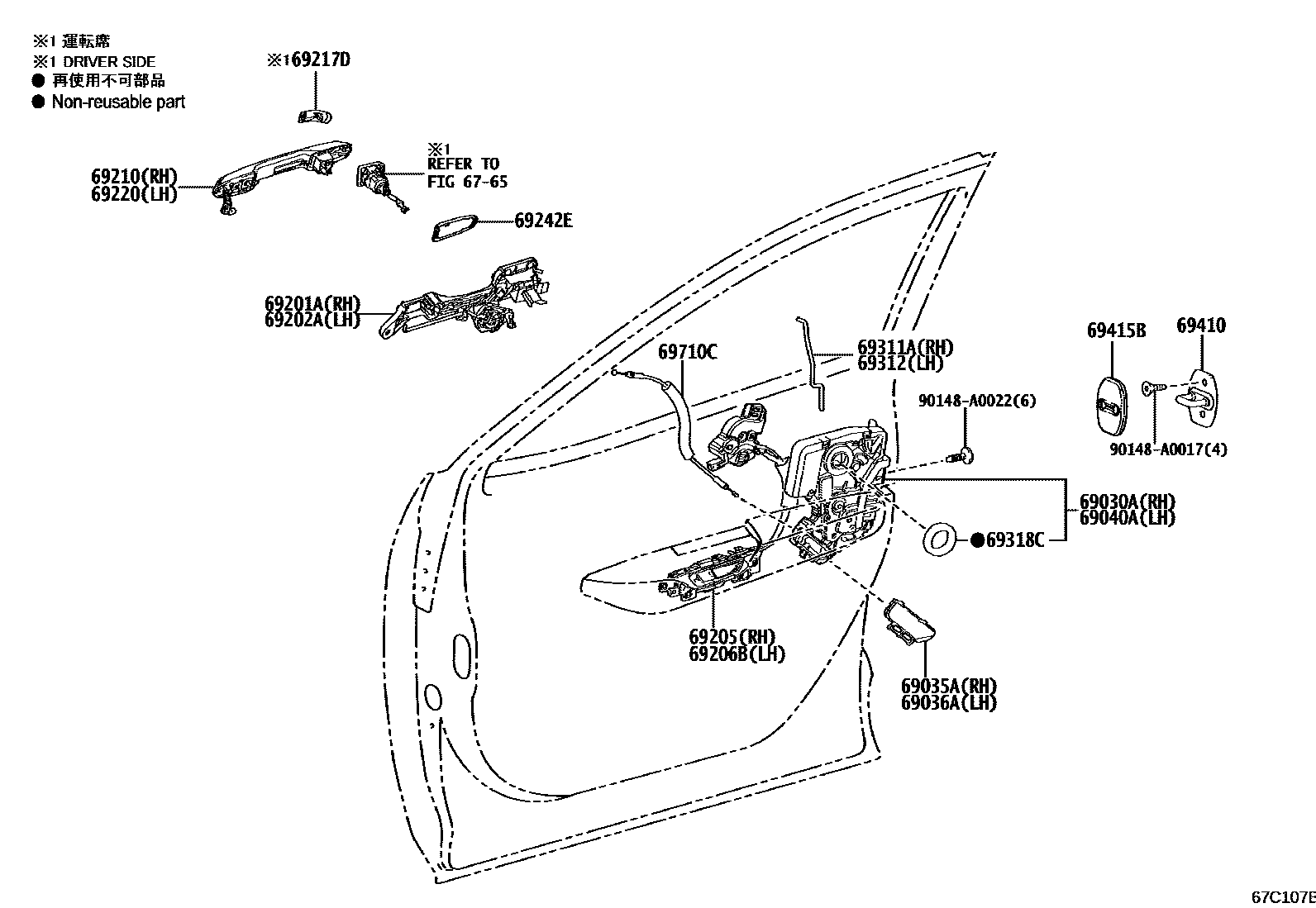

FRONT DOOR LOCK & HANDLE

6765LOCK CYLINDER SET

→ Go to FIG 67-65

69030ALOCK ASSY, FRONT DOOR W/MOTOR, RH

main69030-0E070iAAZA2#202311-202508

main69030-78110iAAZA2#,AAZH25,TAZA25202203-202310

69035ACOVER SUB-ASSY, FRONT DOOR LOCK, RH

main69035-0E020iAAZA2#202310-202508

main69035-78010iAAZA2#,AAZH25,TAZA25202203-202310

69036ACOVER SUB-ASSY, FRONT DOOR LOCK, LH

main69036-0E020iAAZA2#202310-202508

main69036-78010iAAZA2#,AAZH25,TAZA25202203-202310

69040ALOCK ASSY, FRONT DOOR W/MOTOR, LH

main69040-0E070iAAZA2#202311-202508

main69040-78090iAAZA2#,AAZH25,TAZA25202203-202310

69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH

main69201-0E120iAAZH25,TAZA25202404

main69201-78050iAAZA2#,AAZH25,TAZA25202203-202404

69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH

main69202-0E160iAAZA2#202404-202508

main69202-78050iAAZA2#,AAZH25,TAZA25202203-202404

69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH

main69070-78110iAAZA2#,AAZH25,TAZA25202404-202508

main69070-78031supersedes 69070-78011iAAZA2#,AAZH25,TAZA25202203-202304

MULTI COLOR ILLUMINATION

main69070-78070supersedes 69070-78050iAAZA2#,AAZH25,TAZA25202304-202404

MULTI COLOR ILLUMINATION

main69070-78090iAAZH25,TAZA25202404

MULTI COLOR ILLUMINATION

69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH

main69080-78110iAAZA2#,AAZH25,TAZA25202404-202508

main69080-78031supersedes 69080-78011iAAZA2#,AAZH25,TAZA25202203-202304

MULTI COLOR ILLUMINATION

main69080-78070supersedes 69080-78050iAAZA2#,AAZH25,TAZA25202304-202404

MULTI COLOR ILLUMINATION

main69080-78090iAAZA2#202404-202508

MULTI COLOR ILLUMINATION

69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH

main69210-0E300-A1iAAZH25,TAZA25202404

WHITE NOVA GF.,083

main69210-0E300-A2iAAZA2#,AAZH25,TAZA25202404-202508

SONIC QUARTZ,085

main69210-0E300-B1iAAZA2#202404-202508

SONIC CHROME,1L1

main69210-0E300-B3iAAZA2#202404-202508

SONIC TITANIUM,1J7

main69210-0E300-C0iAAZH25,TAZA25202404

GRAPHITE BLACK GF.,223

main69210-0E300-C1iAAZA2#,AAZH25,TAZA25202404-202508

BLACK,212

main69210-0E300-D1iAAZA2#,AAZH25,TAZA25202404-202508

MADDER RED,3T2

main69210-0E300-E1iAAZA2#202404-202508

SONIC COPPER,4Y5

main69210-0E300-G0iAAZH25,TAZA25202404

TERRANE KHAKI M.M.,6X4

main69210-0E300-J1iAAZH25,TAZA25202404

HEAT BLUE CONTRAST LAYERI,8X1

main69210-0E300-J2iAAZH25,TAZA25202404

CELESTIAL BLUE GF.,8Y6

main69210-78070-A0iAAZH25,TAZA25202203-202304

WHITE NOVA GF.,083

main69210-78070-A1iAAZA2#,AAZH25,TAZA25202203-202304

SONIC QUARTZ,085

main69210-78070-B0iAAZA2#,AAZH25,TAZA25202203-202304

SONIC TITANIUM,1J7

main69210-78070-B1iAAZA2#,AAZH25,TAZA25202203-202304

SONIC CHROME,1L1

main69210-78070-C0iAAZA2#,AAZH25,TAZA25202203-202304

BLACK,212

main69210-78070-C1iAAZA2#,AAZH25,TAZA25202203-202304

GRAPHITE BLACK GF.,223

main69210-78070-D0iAAZA2#,AAZH25,TAZA25202203-202304

MADDER RED,3T2

main69210-78070-E0iAAZA2#,AAZH25,TAZA25202203-202304

BLAZING CARNELIAN CONTRAS,4Y1

main69210-78070-G0iAAZA2#,AAZH25,TAZA25202203-202304

TERRANE KHAKI M.M.,6X4

main69210-78070-J0iAAZH25,TAZA25202203-202304

HEAT BLUE CONTRAST LAYERI,8X1

main69210-78070-J1iAAZA2#,AAZH25,TAZA25202203-202304

CELESTIAL BLUE GF.,8Y6

main69210-78071-A0iTAZA25202305-202306

WHITE NOVA GF.,083

main69210-78071-A1iAAZA2#,AAZH25,TAZA25202305-202306

SONIC QUARTZ,085

main69210-78071-B0iAAZA2#,AAZH25,TAZA25202305-202306

SONIC TITANIUM,1J7

main69210-78071-B1iAAZA2#,AAZH25,TAZA25202305-202306

SONIC CHROME,1L1

main69210-78071-C0iAAZA2#,AAZH25,TAZA25202305-202306

BLACK,212

main69210-78071-C1iAAZA2#,AAZH25,TAZA25202305-202306

GRAPHITE BLACK GF.,223

main69210-78071-D0iAAZA2#,AAZH25,TAZA25202305-202306

MADDER RED,3T2

main69210-78071-E0iAAZA2#,AAZH25,TAZA25202305-202306

BLAZING CARNELIAN CONTRAS,4Y1

main69210-78071-G0iAAZA2#,AAZH25,TAZA25202305-202306

TERRANE KHAKI M.M.,6X4

main69210-78071-J0iTAZA25202305-202306

HEAT BLUE CONTRAST LAYERI,8X1

main69210-78071-J1iAAZA2#,AAZH25,TAZA25202305-202306

CELESTIAL BLUE GF.,8Y6

main69210-78072-A0iTAZA25202306-202404

WHITE NOVA GF.,083

main69210-78072-A1iAAZA2#,AAZH25,TAZA25202306-202404

SONIC QUARTZ,085

main69210-78072-B0iAAZA2#,AAZH25,TAZA25202306-202404

SONIC TITANIUM,1J7

main69210-78072-B1iAAZA2#,AAZH25,TAZA25202306-202404

SONIC CHROME,1L1

main69210-78072-C0iAAZA2#,AAZH25,TAZA25202306-202404

BLACK,212

main69210-78072-C1iAAZA2#,AAZH25,TAZA25202306-202404

GRAPHITE BLACK GF.,223

main69210-78072-D0iAAZA2#,AAZH25,TAZA25202306-202404

MADDER RED,3T2

main69210-78072-E0iAAZA2#,AAZH25,TAZA25202306-202404

BLAZING CARNELIAN CONTRAS,4Y1

main69210-78072-G0iAAZA2#,AAZH25,TAZA25202306-202404

TERRANE KHAKI M.M.,6X4

main69210-78072-J0iTAZA25202306-202404

HEAT BLUE CONTRAST LAYERI,8X1

main69210-78072-J1iAAZA2#,AAZH25,TAZA25202306-202404

CELESTIAL BLUE GF.,8Y6

69217DCOVER, FRONT DOOR OUTSIDE HANDLE

main69217-0E150-A1iAAZH25,TAZA25202404

WHITE NOVA GF.,083

main69217-0E150-A2iAAZA2#,AAZH25,TAZA25202404-202508

SONIC QUARTZ,085

main69217-0E150-B1iAAZA2#202404-202508

SONIC CHROME,1L1

main69217-0E150-B3iAAZA2#202404-202508

SONIC TITANIUM,1J7

main69217-0E150-C0iAAZA2#202404-202508

GRAPHITE BLACK GF.,223

main69217-0E150-C1iAAZA2#,AAZH25,TAZA25202404-202508

BLACK,212

main69217-0E150-D1iAAZA2#,AAZH25,TAZA25202404-202508

MADDER RED,3T2

main69217-0E150-E1iAAZA2#202404-202508

SONIC COPPER,4Y5

main69217-0E150-G0iAAZA2#202404-202508

TERRANE KHAKI M.M.,6X4

main69217-0E150-J1iAAZH25,TAZA25202404

HEAT BLUE CONTRAST LAYERI,8X1

main69217-0E150-J2iAAZA2#202404-202508

CELESTIAL BLUE GF.,8Y6

main69217-78020-A0iAAZH25,TAZA25202203-202404

WHITE NOVA GF.,083

main69217-78020-A1iAAZA2#,AAZH25,TAZA25202203-202404

SONIC QUARTZ,085

main69217-78020-B0iAAZA2#,AAZH25,TAZA25202203-202404

SONIC TITANIUM,1J7

main69217-78020-B1iAAZA2#,AAZH25,TAZA25202203-202404

SONIC CHROME,1L1

main69217-78020-C0iAAZA2#,AAZH25,TAZA25202203-202404

BLACK,212

main69217-78020-C1iAAZA2#,AAZH25,TAZA25202203-202404

GRAPHITE BLACK GF.,223

main69217-78020-D0iAAZA2#,AAZH25,TAZA25202203-202404

MADDER RED,3T2

main69217-78020-E0iAAZA2#,AAZH25,TAZA25202203-202404

BLAZING CARNELIAN CONTRAS,4Y1

main69217-78020-G0iAAZA2#,AAZH25,TAZA25202203-202404

TERRANE KHAKI M.M.,6X4

main69217-78020-J0iAAZH25,TAZA25202203-202404

HEAT BLUE CONTRAST LAYERI,8X1

main69217-78020-J1iAAZA2#,AAZH25,TAZA25202203-202404

CELESTIAL BLUE GF.,8Y6

69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH

main69220-0E070-A1iAAZH25,TAZA25202404

WHITE NOVA GF.,083

main69220-0E070-A2iAAZA2#,AAZH25,TAZA25202404-202508

SONIC QUARTZ,085

main69220-0E070-B1iAAZH25,TAZA25202404

SONIC CHROME,1L1

main69220-0E070-B3iAAZH25,TAZA25202404

SONIC TITANIUM,1J7

main69220-0E070-C0iAAZH25,TAZA25202404

GRAPHITE BLACK GF.,223

main69220-0E070-C1iAAZA2#,AAZH25,TAZA25202404-202508

BLACK,212

main69220-0E070-D1iAAZA2#,AAZH25,TAZA25202404-202508

MADDER RED,3T2

main69220-0E070-E1iAAZH25,TAZA25202404

SONIC COPPER,4Y5

main69220-0E070-G0iAAZA2#202404-202508

TERRANE KHAKI M.M.,6X4

main69220-0E070-J1iAAZH25,TAZA25202404

HEAT BLUE CONTRAST LAYERI,8X1

main69220-0E070-J2iAAZH25,TAZA25202404

CELESTIAL BLUE GF.,8Y6

main69220-78070-A0iAAZH25,TAZA25202203-202304

WHITE NOVA GF.,083

main69220-78070-A1iAAZA2#,AAZH25,TAZA25202203-202304

SONIC QUARTZ,085

main69220-78070-B0iAAZA2#,AAZH25,TAZA25202203-202304

SONIC TITANIUM,1J7

main69220-78070-B1iAAZA2#,AAZH25,TAZA25202203-202304

SONIC CHROME,1L1

main69220-78070-C0iAAZA2#,AAZH25,TAZA25202203-202304

BLACK,212

main69220-78070-C1iAAZA2#,AAZH25,TAZA25202203-202304

GRAPHITE BLACK GF.,223

main69220-78070-D0iAAZA2#,AAZH25,TAZA25202203-202304

MADDER RED,3T2

main69220-78070-E0iAAZA2#,AAZH25,TAZA25202203-202304

BLAZING CARNELIAN CONTRAS,4Y1

main69220-78070-G0iAAZA2#,AAZH25,TAZA25202203-202304

TERRANE KHAKI M.M.,6X4

main69220-78070-J0iAAZH25,TAZA25202203-202304

HEAT BLUE CONTRAST LAYERI,8X1

main69220-78070-J1iAAZA2#,AAZH25,TAZA25202203-202304

CELESTIAL BLUE GF.,8Y6

main69220-78071-A0iTAZA25202305-202306

WHITE NOVA GF.,083

main69220-78071-A1iAAZA2#,AAZH25,TAZA25202305-202306

SONIC QUARTZ,085

main69220-78071-B0iAAZA2#,AAZH25,TAZA25202305-202306

SONIC TITANIUM,1J7

main69220-78071-B1iAAZA2#,AAZH25,TAZA25202305-202306

SONIC CHROME,1L1

main69220-78071-C0iAAZA2#,AAZH25,TAZA25202305-202306

BLACK,212

main69220-78071-C1iAAZA2#,AAZH25,TAZA25202305-202306

GRAPHITE BLACK GF.,223

main69220-78071-D0iAAZA2#,AAZH25,TAZA25202305-202306

MADDER RED,3T2

main69220-78071-E0iAAZA2#,AAZH25,TAZA25202305-202306

BLAZING CARNELIAN CONTRAS,4Y1

main69220-78071-G0iAAZA2#,AAZH25,TAZA25202305-202306

TERRANE KHAKI M.M.,6X4

main69220-78071-J0iTAZA25202305-202306

HEAT BLUE CONTRAST LAYERI,8X1

main69220-78071-J1iAAZA2#,AAZH25,TAZA25202305-202306

CELESTIAL BLUE GF.,8Y6

main69220-78072-A0iTAZA25202306-202404

WHITE NOVA GF.,083

main69220-78072-A1iAAZA2#,AAZH25,TAZA25202306-202404

SONIC QUARTZ,085

main69220-78072-B0iAAZA2#,AAZH25,TAZA25202306-202404

SONIC TITANIUM,1J7

main69220-78072-B1iAAZA2#,AAZH25,TAZA25202306-202404

SONIC CHROME,1L1

main69220-78072-C0iAAZA2#,AAZH25,TAZA25202306-202404

BLACK,212

main69220-78072-C1iAAZA2#,AAZH25,TAZA25202306-202404

GRAPHITE BLACK GF.,223

main69220-78072-D0iAAZA2#,AAZH25,TAZA25202306-202404

MADDER RED,3T2

main69220-78072-E0iAAZA2#,AAZH25,TAZA25202306-202404

BLAZING CARNELIAN CONTRAS,4Y1

main69220-78072-G0iAAZA2#,AAZH25,TAZA25202306-202404

TERRANE KHAKI M.M.,6X4

main69220-78072-J0iTAZA25202306-202404

HEAT BLUE CONTRAST LAYERI,8X1

main69220-78072-J1iAAZA2#,AAZH25,TAZA25202306-202404

CELESTIAL BLUE GF.,8Y6

69242EPAD, FRONT DOOR OUTSIDE HANDLE, REAR

main69241-0E160×2iAAZA2#202404-202508

main69241-78030×2iAAZA2#,AAZH25,TAZA25202203-202404

69311AROD, FRONT DOOR LOCK OPEN, RH

main69311-F6010iAAZA2#202203-202508

69312ROD, FRONT DOOR LOCK OPEN, LH

main69312-F6010iAAZA2#202203-202508

69318CSEAL, DOOR LOCK WIRING HARNESS

main69318-51010×2iAAZA2#202203-202508

69410PLATE ASSY, FRONT DOOR LOCK STRIKER

main69410-33030×2iAAZA2#202203-202508

69415BCOVER, DOOR LOCK STRIKER, FRONT

main69415-0E010×2iAAZA2#202203-202508

69710CCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL

main69710-F6010×2iAAZA2#202203-202508

90148A0017

main90148-A0017

90148A0022

main90148-A0022

21 parts on this diagram · 1 diagram in section
