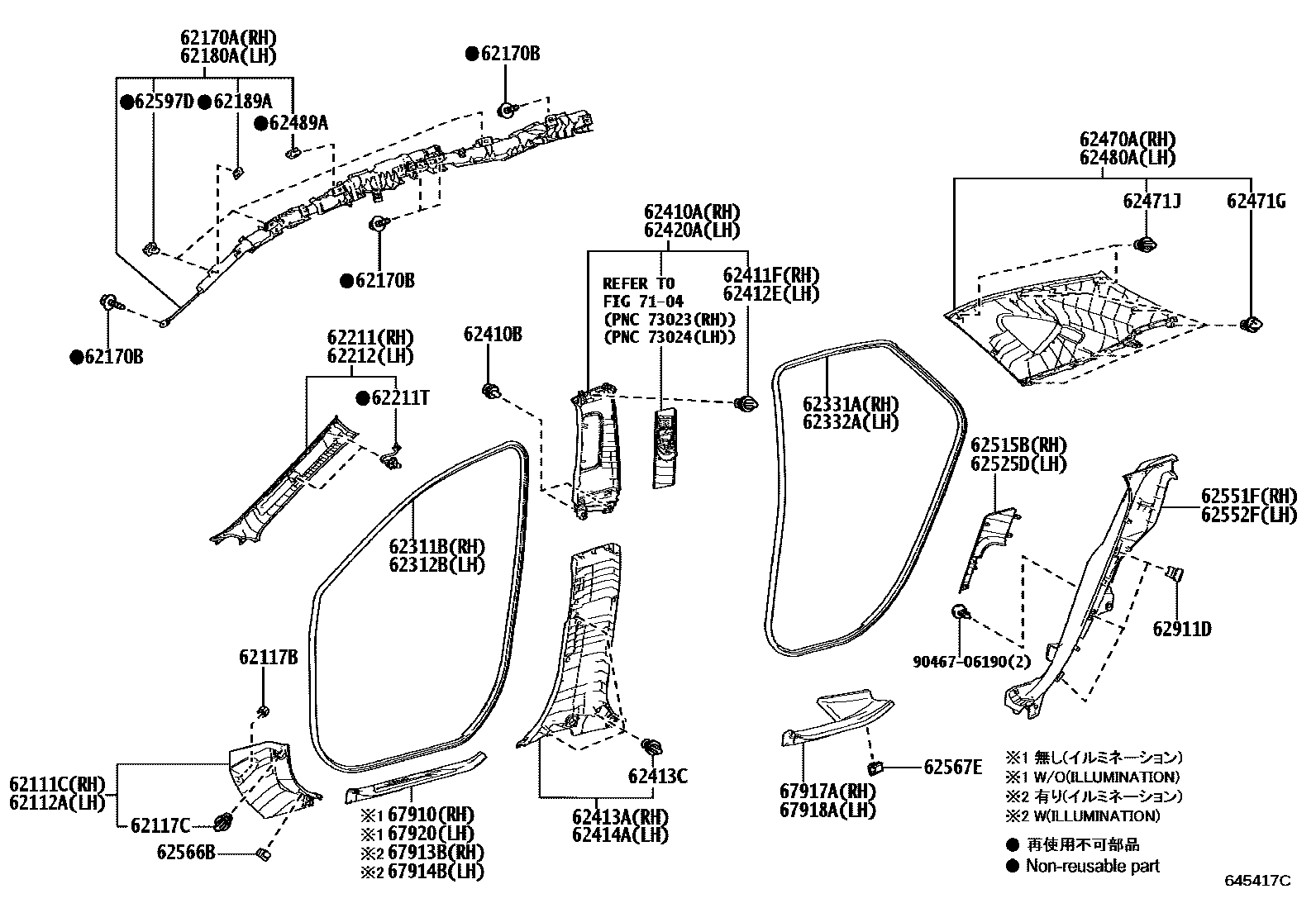

INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING
62111CBOARD, COWL SIDE TRIM, RH
BLACK,TRIM0#,2#,3#,4#
62112ATRIM SUB-ASSY, COWL SIDE, LH
BLACK,TRIM0#,2#,3#,4#
62117BCLIP, NO.1(FOR COWL SIDE TRIM)
62117CCLIP, NO.2(FOR COWL SIDE TRIM)
62170AAIRBAG ASSY, CURTAIN SHIELD, RH
MOON ROOF-WITH(PANORAMA ROOF(UV & IR CUT GLASS)); MOON ROOF-WITHOUT
MOON ROOF-WITH
62170BBOLT, W/WASHER
62180AAIRBAG ASSY, CURTAIN SHIELD, LH
MOON ROOF-WITH(PANORAMA ROOF(UV & IR CUT GLASS)); MOON ROOF-WITHOUT
MOON ROOF-WITH
62189ASPACER, CURTAIN SHIELD AIRBAG CLIP
62211GARNISH, FRONT PILLAR, RH
LWHITE,TRIM2#; LWHITE,TRIM20,21,22
FROMAGE,TRIM03,04,20,21,22
BLACK,TRIM0#,23,24,3#; BLACK,TRIM0#,3#
HAZEL,TRIM4#
62211TCLIP(FOR FRONT PILLAR GARNISH)
62212GARNISH, FRONT PILLAR, LH
LWHITE,TRIM2#; LWHITE,TRIM20,21,22
FROMAGE,TRIM03,04,2#
BLACK,TRIM00,01,02,3#
HAZEL,TRIM4#
62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH
62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH
62331AWEATHERSTRIP, REAR DOOR OPENING TRIM, RH
62332AWEATHERSTRIP, REAR DOOR OPENING TRIM, LH
62410AGARNISH ASSY, CENTER PILLAR, RH
LWHITE/WHITE/ECRU,TRIM2#; LWHITE/WHITE/ECRU,TRIM20,21,22
FROMAGE/IVORY,TRIM03,04,20,21,22
BLACK/BLACK/CHARCOAL,TRIM00,01,02,03,04,23,24,3#; BLACK/BLACK/CHARCOAL,TRIM00,01,02,23,3#
HAZEL/HAZEL/CHARCOAL,TRIM4#
62410BCLIP
62411FCLIP, CENTER PILLAR GARNISH, RH
62412ECLIP, CENTER PILLAR GARNISH, LH
62413AGARNISH, CENTER PILLAR, LOWER RH
BLACK,TRIM0#,2#,3#,4#
62413CCLIP (FOR CENTER LOWER GARNISH)
62414AGARNISH, CENTER PILLAR, LOWER LH
BLACK,TRIM0#,2#,3#,4#
62420AGARNISH ASSY, CENTER PILLER, LH
LWHITE/WHITE/ECRU,TRIM2#; LWHITE/WHITE/ECRU,TRIM20,21,22
FROMAGE/IVORY,TRIM03,04,2#
BLACK/BLACK/CHARCOAL,TRIM0#,23,24,3#; BLACK/BLACK/CHARCOAL,TRIM0#,23,3#; BLACK/BLACK/CHARCOAL,TRIM0#,3#
HAZEL/HAZEL/CHARCOAL,TRIM4#
62470AGARNISH ASSY, ROOF SIDE, INNER RH
WHITE,TRIM2#; WHITE,TRIM20,21,22
FROMAGE,TRIM03,04,2#
BLACK,TRIM00,01,02,03,04,23,24,3#
HAZEL,TRIM4#
62471GCLIP, ROOF SIDE INNER GARNISH
62471JCLIP (FOR ROOF SIDE GARNISH)
62480AGARNISH ASSY, ROOF SIDE, INNER LH
WHITE,TRIM2#; WHITE,TRIM20,21,22
FROMAGE,TRIM03,04,20,21,22
BLACK,TRIM0#,23,24,3#; BLACK,TRIM0#,3#
HAZEL,TRIM4#
62489ACLIP, ROOF SIDE INNER GARNISH
62515BCOVER, SIDE TRIM BASE, NO.1 RH
BLACK,TRIM0#,2#,3#,4#
62525DCOVER, SIDE TRIM BASE, NO.1 LH
BLACK,TRIM0#,2#,3#,4#
62551FGARNISH, REAR SEAT SIDE, RH
BLACK,TRIM0#,2#,3#,4#
BLACK,TRIM0#,2#,3#,4#
62552FGARNISH, REAR SEAT SIDE, LH
BLACK,TRIM0#,2#,3#,4#
BLACK,TRIM0#,2#,3#,4#
62566BCLAMP, ROCKER PANEL INNER PROTECTER, NO.1
62567ECLAMP, ROCKER PANEL INNER PROTECTOR, NO.2
62597DCLIP
62911DHOOK, SIDE WINDOW LOCK
67910PLATE ASSY, DOOR SCUFF, RH
BLACK,TRIM0#,2#,3#,4#; DOOR SCUFF PLATE-FRONT:STAINLESS & REAR:RESIN-W(*IL),BLACK,TRIM0#,2#,3#,4#; F SPORT PACKAGE&DOOR SCUFF PLATE-FR:STAINLESS & RR:RESIN-W(*IL) "F-SPORT",BLACK,TRIM0#,2#,3#,4#
BLACK,TRIM0#,2#,3#; DOOR SCUFF PLATE-FR:STAINLESS & RR:RESIN-W(*IL) "F-SPORT",BLACK,TRIM0#,2#,3#; DOOR SCUFF PLATE-FRONT:STAINLESS & REAR:RESIN-W(*IL),BLACK,TRIM0#,2#,3#; LUXURY PACKAGE&DOOR SCUFF PLATE-FRONT:STAINLESS & REAR:RESIN-W(*IL),BLACK,TRIM0#,2#,3#; PREMIUM PACKAGE&DOOR SCUFF PLATE-FRONT:STAINLESS & REAR:RESIN-W(*IL),BLACK,TRIM0#,2#,3#
67913BPLATE, FRONT DOOR SCUFF, RH
DOOR SCUFF PLATE-FRONT:STAINLESS & REAR:RESIN-W(*IL)
DOOR SCUFF PLATE-FR:STAINLESS & RR:RESIN-W(*IL) "F-SPORT"
67914BPLATE, FRONT DOOR SCUFF, LH
DOOR SCUFF PLATE-FRONT:STAINLESS & REAR:RESIN-W(*IL)
DOOR SCUFF PLATE-FR:STAINLESS & RR:RESIN-W(*IL) "F-SPORT"
67917APLATE, REAR DOOR SCUFF, RH
DOOR SCUFF PLATE-FRONT:STAINLESS & REAR:RESIN-W(*IL),BLACK,TRIM0#,2#,3#,4#
BLACK,TRIM0#,2#,3#,4#; DOOR SCUFF PLATE-FRONT:STAINLESS & REAR:RESIN-W(*IL),BLACK,TRIM0#,2#,3#,4#; F SPORT PACKAGE&DOOR SCUFF PLATE-FR:STAINLESS & RR:RESIN-W(*IL) "F-SPORT",BLACK,TRIM0#,2#,3#,4#
DOOR SCUFF PLATE-FR:STAINLESS & RR:RESIN-W(*IL) "F-SPORT"; DOOR SCUFF PLATE-FRONT:STAINLESS & REAR:RESIN-W(*IL)
DOOR SCUFF PLATE-FRONT:STAINLESS & REAR:RESIN-W(*IL)
67918APLATE, REAR DOOR SCUFF, LH
BLACK,TRIM0#,2#,3#,4#; DOOR SCUFF PLATE-FR:STAINLESS & RR:RESIN-W(*IL) "F-SPORT",BLACK,TRIM0#,2#,3#,4#; DOOR SCUFF PLATE-FRONT:STAINLESS & REAR:RESIN-W(*IL),BLACK,TRIM0#,2#,3#,4#; LUXURY PACKAGE&DOOR SCUFF PLATE-FRONT:STAINLESS & REAR:RESIN-W(*IL),BLACK,TRIM0#,2#,3#,4#; PREMIUM PACKAGE&DOOR SCUFF PLATE-FRONT:STAINLESS & REAR:RESIN-W(*IL),BLACK,TRIM0#,2#,3#,4#
BLACK,TRIM0#,2#,3#,4#; DOOR SCUFF PLATE-FRONT:STAINLESS & REAR:RESIN-W(*IL),BLACK,TRIM0#,2#,3#,4#; F SPORT PACKAGE&DOOR SCUFF PLATE-FR:STAINLESS & RR:RESIN-W(*IL) "F-SPORT",BLACK,TRIM0#,2#,3#,4#
DOOR SCUFF PLATE-FR:STAINLESS & RR:RESIN-W(*IL) "F-SPORT"; DOOR SCUFF PLATE-FRONT:STAINLESS & REAR:RESIN-W(*IL)
DOOR SCUFF PLATE-FRONT:STAINLESS & REAR:RESIN-W(*IL)
67920PLATE ASSY, DOOR SCUFF, LH
BLACK,TRIM0#,2#,3#,4#; DOOR SCUFF PLATE-FRONT:STAINLESS & REAR:RESIN-W(*IL),BLACK,TRIM0#,2#,3#,4#; F SPORT PACKAGE&DOOR SCUFF PLATE-FR:STAINLESS & RR:RESIN-W(*IL) "F-SPORT",BLACK,TRIM0#,2#,3#,4#
BLACK,TRIM0#,2#,3#; DOOR SCUFF PLATE-FR:STAINLESS & RR:RESIN-W(*IL) "F-SPORT",BLACK,TRIM0#,2#,3#; DOOR SCUFF PLATE-FRONT:STAINLESS & REAR:RESIN-W(*IL),BLACK,TRIM0#,2#,3#; LUXURY PACKAGE&DOOR SCUFF PLATE-FRONT:STAINLESS & REAR:RESIN-W(*IL),BLACK,TRIM0#,2#,3#; PREMIUM PACKAGE&DOOR SCUFF PLATE-FRONT:STAINLESS & REAR:RESIN-W(*IL),BLACK,TRIM0#,2#,3#
7104SEAT BELT & CHILD RESTRAINT SEAT
9046706190
main90467-06190
44 parts on this diagram · 4 diagrams in section
