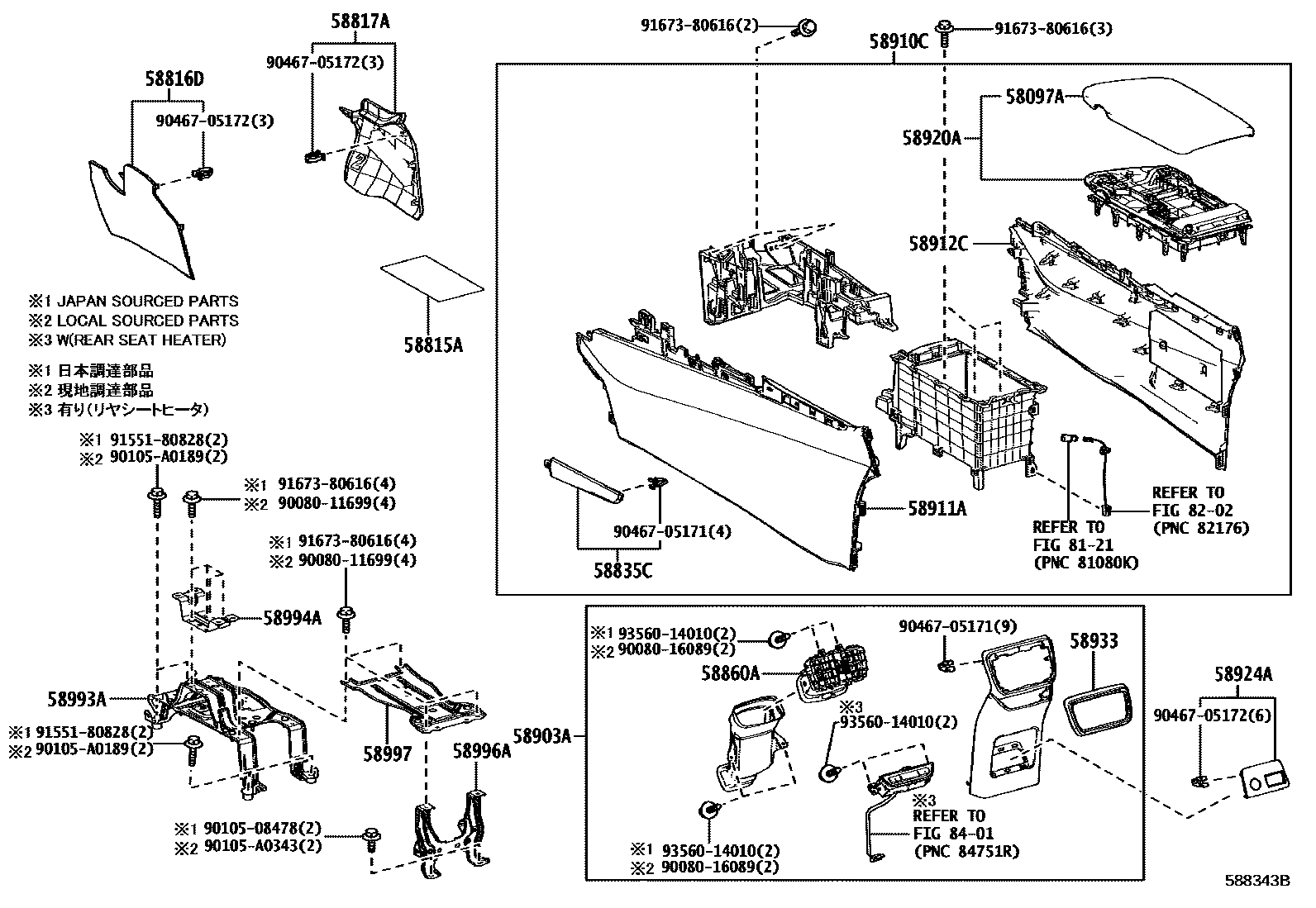

CONSOLE BOX & BRACKET
58097ACOVER SUB-ASSY, CONSOLE COMPARTMENT DOOR, INNER
WHITE,TRIM03
RICH CREAM,TRIM0#
FROMAGE,TRIM0#
BLACK,TRIM2#
FLARE RED,TRIM33
DK.ROSE,TRIM30,31,32
HAZEL,TRIM4#
58815ACARPET, CONSOLE BOX
58816DINSERT, CONSOLE BOX, FRONT NO.1
BLACK,TRIM0#,2#,3#,4#
58817AINSERT, CONSOLE BOX, FRONT NO.2
BLACK,TRIM0#,2#,3#,4#
58835CORNAMENT, CONSOLE BOX
WHITE,TRIM03,04
RICH CREAM,TRIM0#
FROMAGE,TRIM0#
BLACK,TRIM2#
FLARE RED,TRIM33; FLARE RED,TRIM33,34
DK.ROSE,TRIM30,31,32
HAZEL,TRIM4#
58860AREGISTER ASSY, CONSOLE BOX
58903APANEL SUB-ASSY, CONSOLE REAR END
SEAT HEATER-WITH(*DRP & *RES),BLACK,TRIM0#,2#,3#,4#
58910CBOX ASSY, CONSOLE, REAR
RICH CREAM/ ORANGE,TRIM0#
RED/LT GRAY,TRIM2#
FLARE RED/RED,TRIM33; FLARE RED/RED,TRIM33,34
HAZEL,TRIM4#
DK ROSE,TRIM3#
FROMAGE,TRIM0#
WHITE,TRIM03,04
58911APANEL, BOX SIDE, NO.1
BLACK,TRIM0#,2#,3#,4#
58912CPANEL, BOX SIDE, NO.2
BLACK,TRIM0#,2#,3#,4#
58920AARMREST ASSY, REAR CONSOLE
WHITE,TRIM03
RICH CREAM,TRIM00,01,02
FROMAGE,TRIM0#
BLACK,TRIM2#
FLARE RED,TRIM33
DK.ROSE,TRIM3#
HAZEL,TRIM4#
58924APANEL, CONSOLE REAR END, NO.2
BLACK,TRIM0#,2#,3#,4#
58933GARNISH, CONSOLE REAR END PANEL
58993ABRACKET, CONSOLE BOX MOUNTING, LOWER
58994ABRACKET, CONSOLE BOX MOUNTING, NO.4
58996ABRACKET, CONSOLE BOX MOUNTING, NO.2
58997BRACKET, CONSOLE BOX MOUNTING, NO.3
8121INTERIOR LAMP
8202WIRING & CLAMP
8401SWITCH & RELAY & COMPUTER
9008011699
main90080-11699
9008016089
main90080-16089
9010508478
main90105-08478
90105A0189
main90105-A0189
90105A0343
main90105-A0343
9046705171
main90467-05171
9046705172
main90467-05172
9155180828
main91551-80828
9167380616
main91673-80616
9356014010
main93560-14010
30 parts on this diagram · 2 diagrams in section
