Toyota LEXUS NX SERIES(TMMC52E — FLOOR SIDE MEMBER

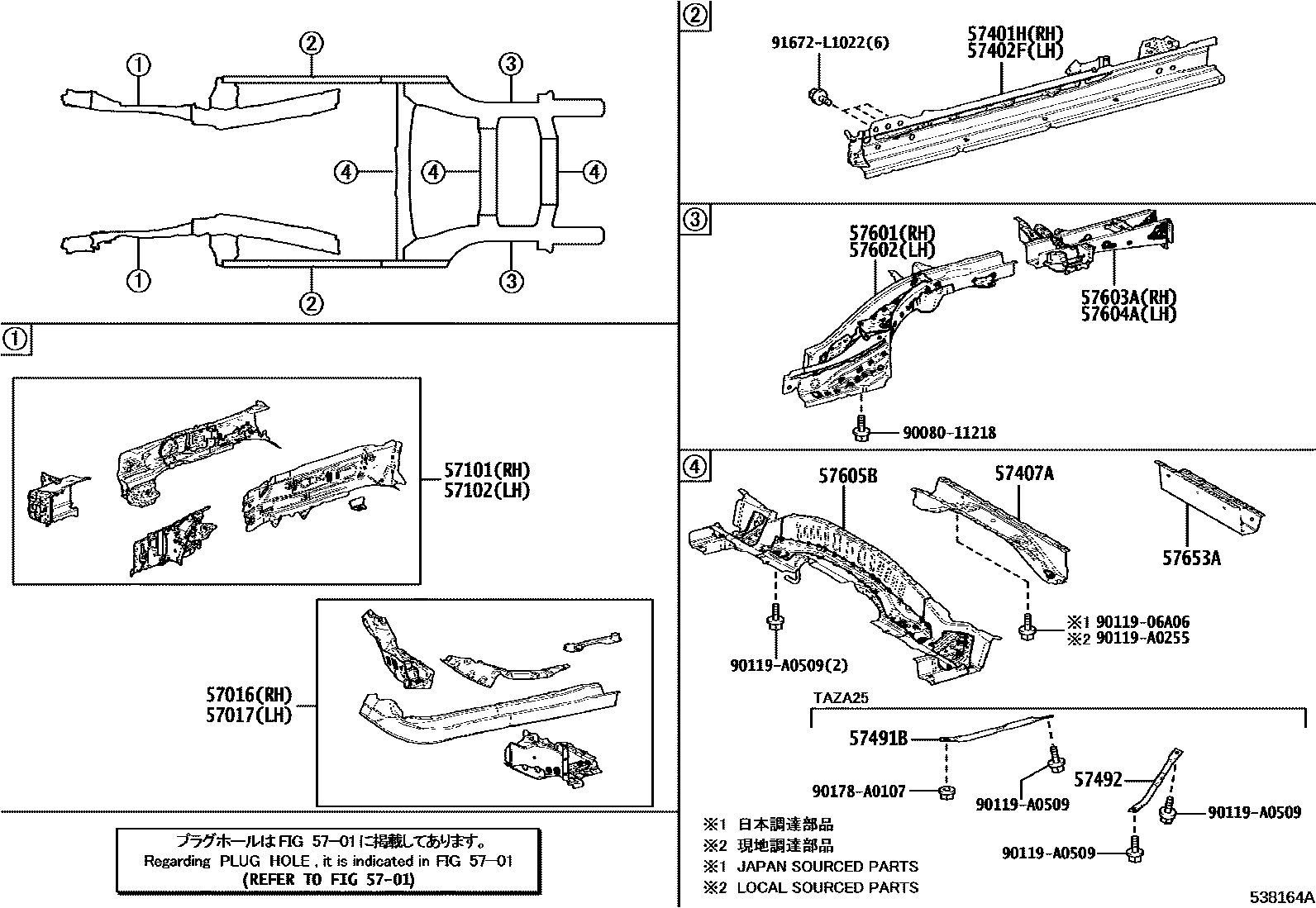

Parts diagram

5701HOLE PLUG

→ Go to FIG 57-01

57016REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, RH

57017REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, LH

57101MEMBER SUB-ASSY, FRONT SIDE, RH

57102MEMBER SUB-ASSY, FRONT SIDE, LH

57401HMEMBER SUB-ASSY, FLOOR SIDE, INNER RH

57402FMEMBER SUB-ASSY, FLOOR SIDE, INNER LH

57407AMEMBER SUB-ASSY, CENTER FLOOR CROSS

57491BBRACE, FRONT FLOOR CROSS, NO.1 RH

57492BRACE, FRONT FLOOR CROSS, NO.1 LH

57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH

57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH

57603AMEMBER SUB-ASSY, REAR FLOOR SIDE, REAR RH

57604AMEMBER SUB-ASSY, REAR FLOOR SIDE, REAR LH

57605BMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1

57653AMEMBER, REAR FLOOR CROSS, NO.2

9008011218

9011906A06

90119A0255

90119A0509

90178A0107

91672L1022

22 parts on this diagram · 3 diagrams in section

FLOOR SIDE MEMBER for Toyota LEXUS NX SERIES(TMMC52E

This section contains 25 genuine Toyota parts for the FLOOR SIDE MEMBER system of the Toyota LEXUS NX SERIES(TMMC52E. Key components include: HOLE PLUG, REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, RH, REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, LH, MEMBER SUB-ASSY, FRONT SIDE, RH, MEMBER SUB-ASSY, FRONT SIDE, LH.
