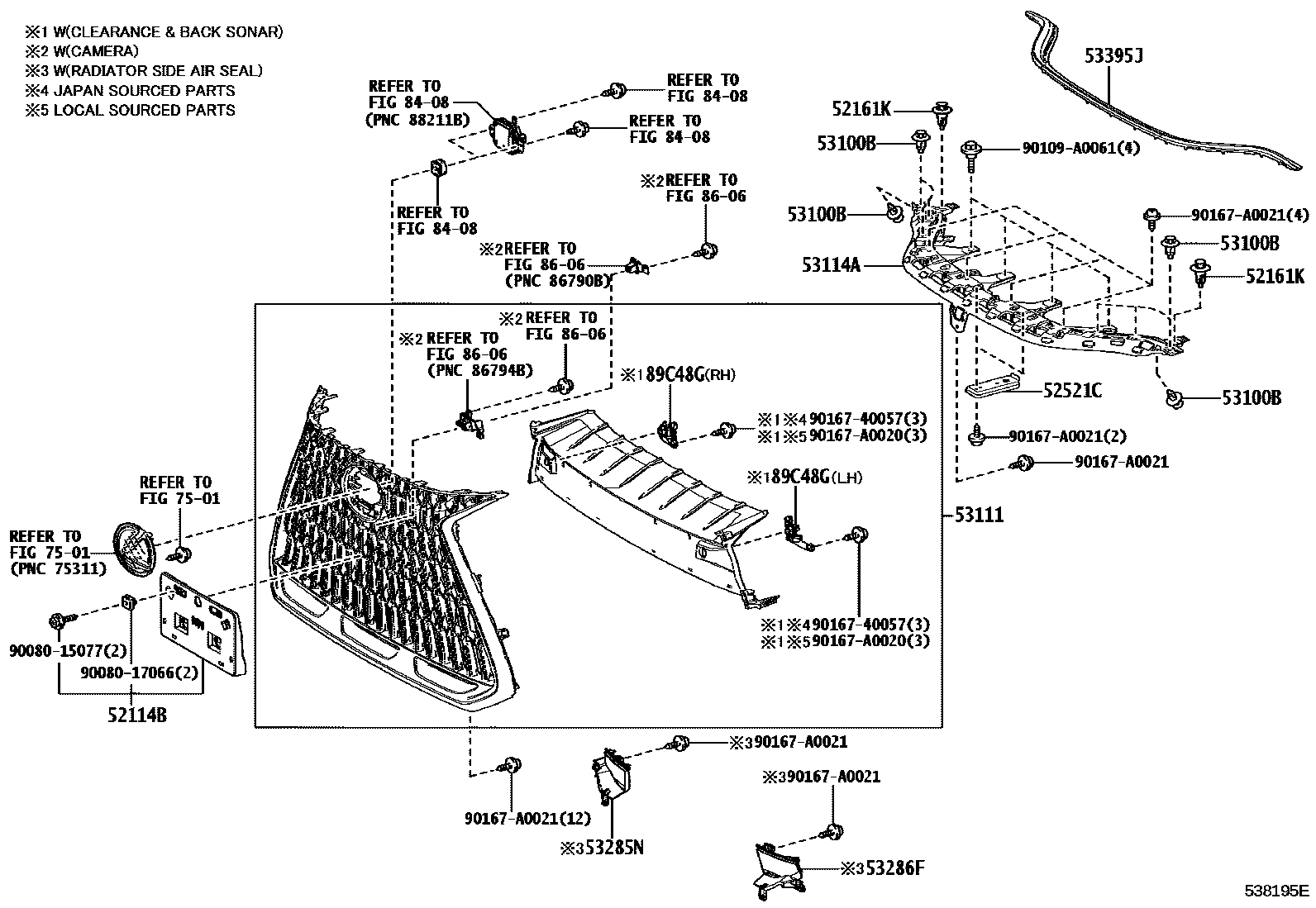

RADIATOR GRILLE

52114BBRACKET, FRONT BUMPER EXTENSION MOUNTING

main52114-F6010supersedes 52114-F6020i202203

LUXURY PACKAGE; PREMIUM PACKAGE

52161KPIECE, FRONT BUMPER

main52161-02020×2i202203-202508

52521CRETAINER, FRONT BUMPER, UPPER

main52521-F6010×2i202203

53100BCLIP, RADIATOR GRILLE

main90467-05063-C0×8i202203

BLACK

53111GRILLE, RADIATOR

main53101-F6010supersedes 53101-F6060i202203

NO PAINT REQ.,CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB *PVM); NO PAINT REQ.,LUXURY PACKAGE&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB *PVM); NO PAINT REQ.,PREMIUM PACKAGE&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE &*RCTB *PVM)

main53101-F6020i202203-202304

NO PAINT REQ.,LUXURY PACKAGE&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB *PVM)&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR); NO PAINT REQ.,LUXURY PACKAGE&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB *PVM)&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)&ADVANCED PARK-WITH(REMOTE CONTROL FUNCTION); NO PAINT REQ.,LUXURY PACKAGE&TOWING PACKAGE-2000 LBS&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB *PVM)&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR); NO PAINT REQ.,LUXURY PACKAGE&TOWING PACKAGE-2000 LBS&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB *PVM)&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)&ADVANCED PARK-WITH(REMOTE CONTROL FUNCTION); NO PAINT REQ.,PREMIUM PACKAGE&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE &*RCTB *PVM)&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR); NO PAINT REQ.,PREMIUM PACKAGE&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE &*RCTB *PVM)&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)&ADVANCED PARK-WITH(REMOTE CONTROL FUNCTION); NO PAINT REQ.,PREMIUM PACKAGE&TOWING PACKAGE-2000 LBS&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB *PVM)&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR); NO PAINT REQ.,PREMIUM PACKAGE&TOWING PACKAGE-2000 LBS&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB *PVM)&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)&ADVANCED PARK-WITH(REMOTE CONTROL FUNCTION)

main53101-F6030supersedes 53101-F6060i202203

NO PAINT REQ.; NO PAINT REQ.,LUXURY PACKAGE; NO PAINT REQ.,PREMIUM PACKAGE

main53101-F6040supersedes 53101-F6060i202203

NO PAINT REQ.,CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB *PVM)

main53101-F6050supersedes 53101-F6060i202203

NO PAINT REQ.,CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB *PVM)&BACKMONITOR-WITH(PANORAMIC VIEW MONITOR)

53114AGRILLE, RADIATOR, INNER

main53114-F6010i202203-202508

53285NSEAL, RADIATOR SIDE AIR, RH

main53285-F6010i202203-202304

53286FSEAL, RADIATOR SIDE AIR, LH

main53286-F6010i202203-202304

53395JSEAL, HOOD TO FRONT END PANEL

main53395-F6010i202203-202508

7501EMBLEM & NAME PLATE (EXTERIOR & INTERIOR)

→ Go to FIG 75-01

8408CRUISE CONTROL (AUTO DRIVE)

→ Go to FIG 84-08

8606CAMERA & REAR MONITOR DISPLAY

→ Go to FIG 86-06

89C48GRETAINER, ULTRASONIC SENSOR, FRONT CENTER

main89348-F6010i202203-202304

LUXURY PACKAGE&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB *PVM)&ADVANCED PARK-WITH(REMOTE CONTROL FUNCTION),RH; MEXICO SPEC&LUXURY PACKAGE&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB *PVM)&ADVANCED PARK-WITH,RH; MEXICO SPEC&PREMIUM PACKAGE&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB *PVM)&ADVANCED PARK-WITH,RH; PREMIUM PACKAGE&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB *PVM)&ADVANCED PARK-WITH(REMOTE CONTROL FUNCTION),RH

main89348-F6020i202304-202508

CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB *PVM)&ADVANCED PARK-WITH(REMOTE CONTROL FUNCTION),LH; CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB *PVM)&ADVANCED PARK-WITH,LH

main89348-F6030i202203

CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB *PVM),RH

main89348-F6040i202203

CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB *PVM),LH

9008015077

main90080-15077

9008017066

main90080-17066

90109A0061

main90109-A0061

9016740057

main90167-40057

90167A0020

main90167-A0020

90167A0021

main90167-A0021

19 parts on this diagram · 2 diagrams in section
