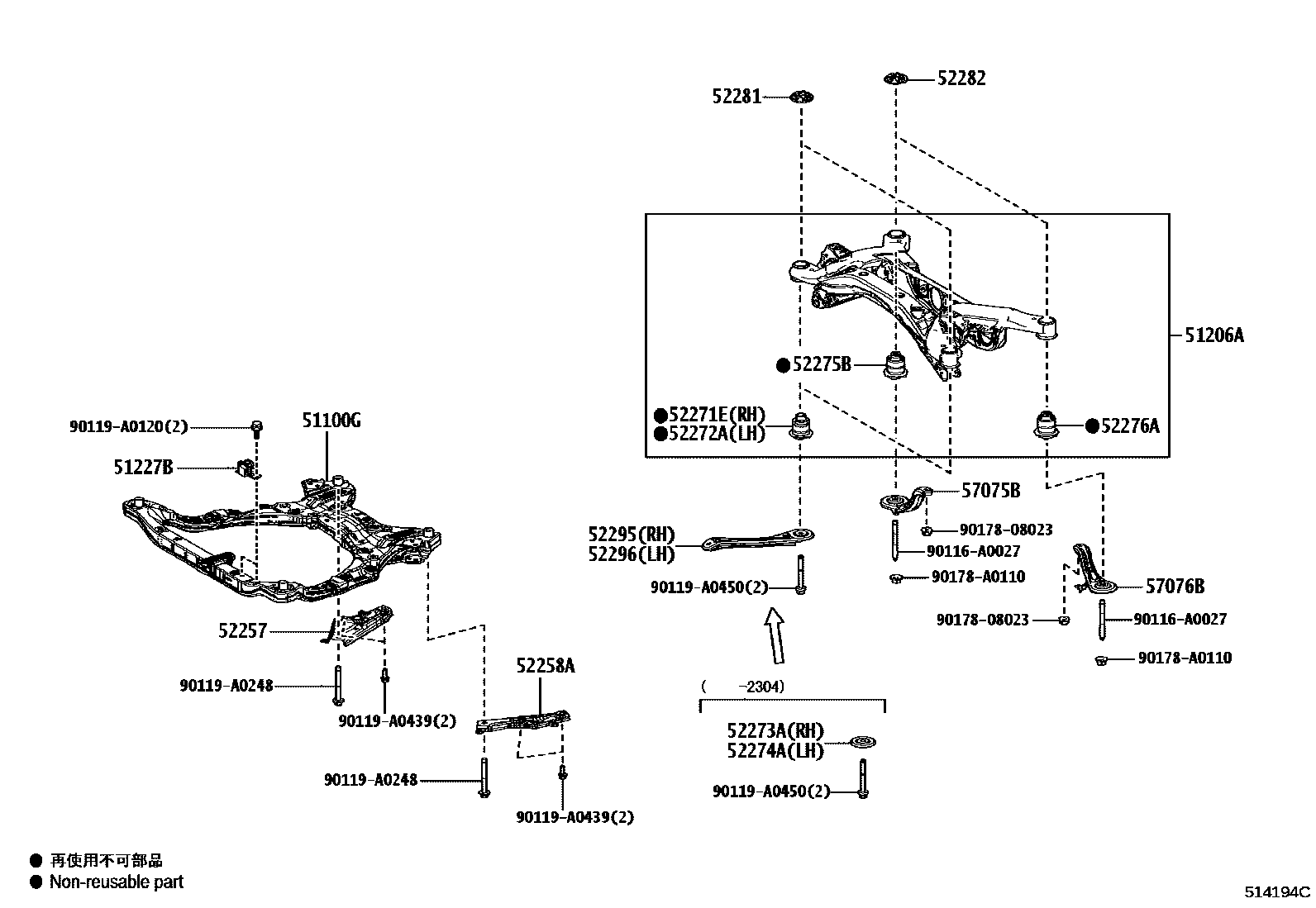

SUSPENSION CROSSMEMBER & UNDER COVER

51100GFRAME ASSY, FRONT

main51100-0R011i202203-202302

main51100-0R012i202303-202508

51206AMEMBER SUB-ASSY, REAR SUSPENSION

main51200-0R010i202203

main51200-0R020i202203

main51200-0R030i202203-202508

51227BDAMPER, FRONT SUSPENSION MEMBER DYNAMIC

main51227-06090i202203-202508

main51229-F6010i202203

52257BRACE, FRONT SUSPENSION MEMBER, REAR RH

main52257-0R040i202203

main52257-78010i202203

52258ABRACE, FRONT SUSPENSION MEMBER, REAR LH

main52258-0R040i202203

main52258-78010i202203

52271ECUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT RH

main52271-0R010i202203-202508

52272ACUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT LH

main52271-0R010i202203-202508

52273ASTOPPER, REAR SUSPENSION MEMBER, LOWER RH

main52273-06050i202203-202304

52274ASTOPPER, REAR SUSPENSION MEMBER, LOWER LH

main52273-06050i202203-202304

52275BCUSHION, REAR SUSPENSION MEMBER BODY MOUNT, REAR RH

main52275-0R010i202203-202508

52276ACUSHION, REAR SUSPENSION MEMBER BODY MOUNT, REAR LH

main52276-0R010i202203-202508

52281CUSHION, DIFFERENTIAL SUPPORT MEMBER

main52281-0R010×2i202203-202508

52282STOPPER, DIFFERENTIAL SUPPORT MEMBER, UPPER

main52282-06110×2i202203-202508

52295BRACE, REAR SUSPENSION MEMBER, RH

main52295-78020i202304

52296BRACE, REAR SUSPENSION MEMBER, LH

main52296-78020i202304

57075BBRACKET SUB-ASSY, REAR SUSPENSION ARM, RH

main57075-78020i202203-202508

57076BBRACKET SUB-ASSY, REAR SUSPENSION ARM, LH

main57076-78020i202203-202508

90116A0027

main90116-A0027

90119A0120

main90119-A0120

90119A0248

main90119-A0248

90119A0439

main90119-A0439

90119A0450

main90119-A0450

9017808023

main90178-08023

90178A0110

main90178-A0110

24 parts on this diagram · 7 diagrams in section
