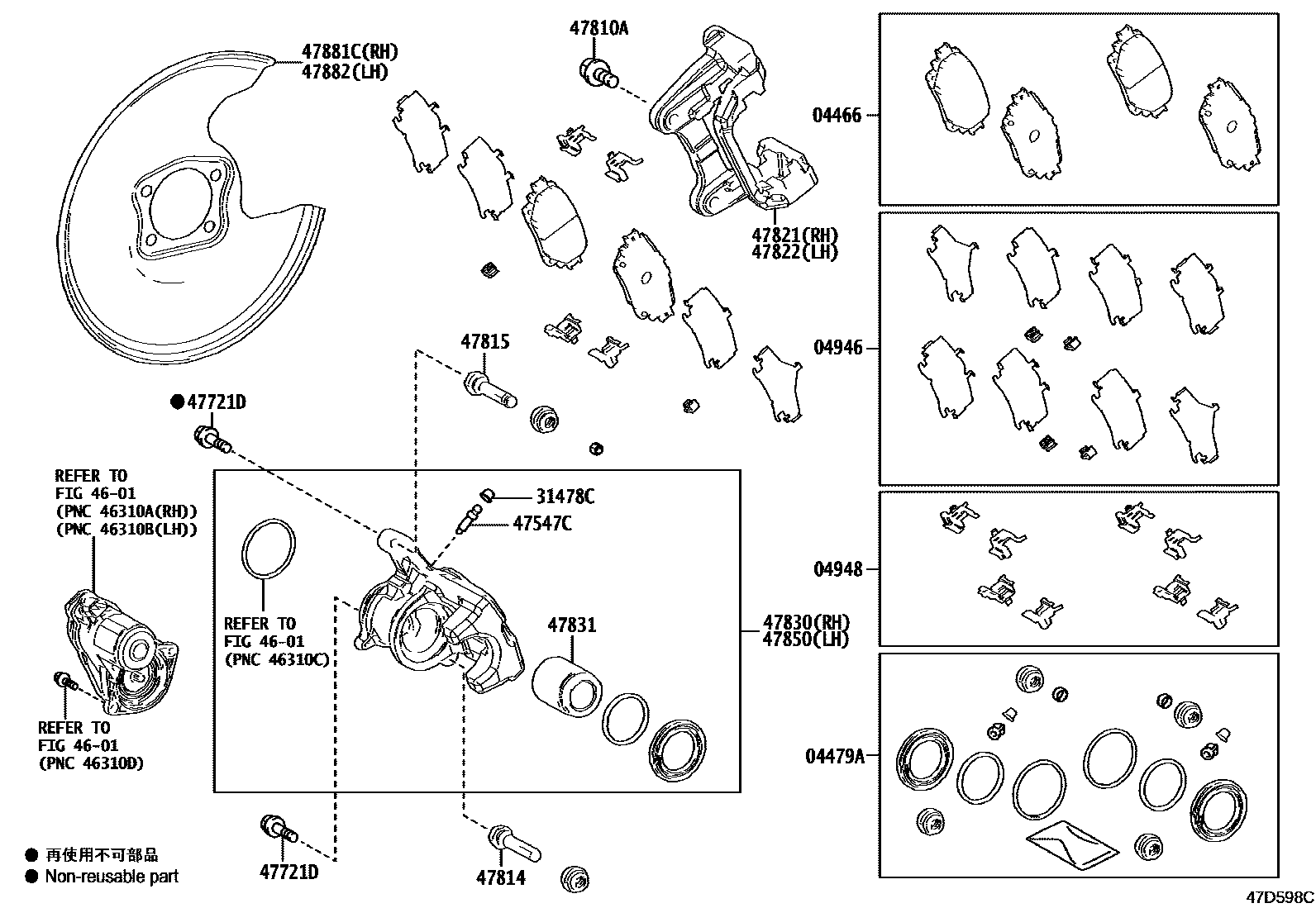

REAR DISC BRAKE CALIPER & DUST COVER

04466PAD KIT, DISC BRAKE, REAR

main04466-30410iAAZA2#202310-202508

MARK NBK D6363-FF N

main04466-F4020iAAZA2#,AAZH25,TAZA25202203-202309

MARK NBK D6361

04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-02510iAAZA2#202203-202508

04946SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)

main04946-02180iAAZA2#202203-202508

04948FITTING KIT, DISC BRAKE, REAR

main04948-02150iAAZH25,TAZA25202203

31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main31478-30010×2iAAZA2#202203-202508

4601PARKING BRAKE & CABLE

→ Go to FIG 46-01

47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)

main47547-20010×2iAAZA2#202203-202508

47721DBOLT(FOR REAR DISC BRAKE CYLINDER MOUTING)

main90016-AA614×4iAAZA2#202203-202508

47810ABOLT, HEXAGON(FOR REAR CALIPER)

main90105-A0435×4iAAZA2#202203-202508

47814PIN, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)

main47814-0R050×2iAAZH25,TAZA25202203

47815PIN, REAR CYLINDER SLIDE, NO.2(FOR REAR DISC BRAKE)

main47815-0R050×2iAAZA2#202203-202508

47821MOUNTING, REAR DISC BRAKE CYLINDER, RH

main47821-F6010iAAZA2#202203-202508

47822MOUNTING, REAR DISC BRAKE CYLINDER, LH

main47822-F6010iAAZA2#202203-202508

47830CYLINDER ASSY, DISC BRAKE, REAR RH

main47830-F6010iAAZA2#202203-202508

47831PISTON, REAR DISC BRAKE

main47831-F6010×2iAAZA2#,AAZH25,TAZA25202203-202307

main47831-F6011×2iAAZA2#202307-202508

47850CYLINDER ASSY, DISC BRAKE, REAR LH

main47850-F6010iAAZA2#202203-202508

47881CCOVER, DISC BRAKE DUST, REAR RH

main47881-F6010iAAZA2#202203-202508

47882COVER, DISC BRAKE DUST, REAR LH

main47882-F6010iAAZA2#202203-202508

18 parts on this diagram · 1 diagram in section
