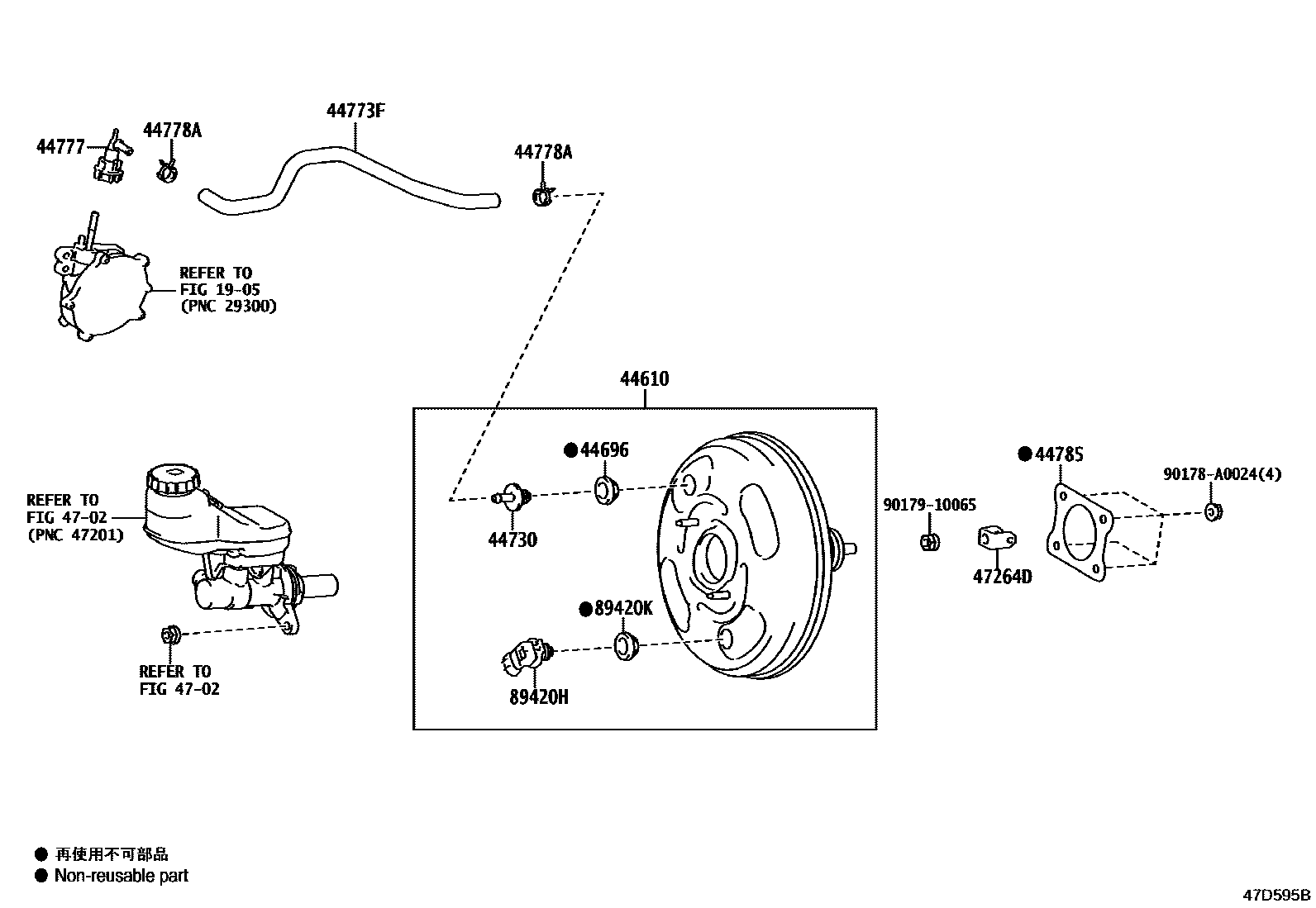

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1

1905VACUUM PUMP

→ Go to FIG 19-05

44610BOOSTER ASSY, BRAKE

main44610-F6020iAAZA2#,TAZA25202203-202404

main44610-F6030iAAZA2#202404-202508

44696GROMMET, CHECK VALVE

main90080-48071iAAZA2#202203-202508

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-30060iAAZA2#202203-202508

44773FHOSE, UNION TO CHECK VALVE

main44773-F6010iAAZA2#202203-202508

main44773-F6020iTAZA25202203

44777CONNECTOR, VACUUM HOSE, NO.1

main29612-25010iTAZA25202203

main44777-06010iAAZA2#202203-202508

44778ACLIP(FOR CONNECTOR TO CHECK VALVE HOSE)

main90467-16014×2iAAZA2#202203-202508

44785GASKET, BRAKE BOOSTER

main44785-02060iAAZA2#202203-202508

4702BRAKE MASTER CYLINDER

→ Go to FIG 47-02

47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD

main47264-42020iAAZA2#202203-202508

89420HSENSOR ASSY, VACUUM

main89421-52020iAAZA2#,TAZA25202203-202404

main89421-71040iAAZA2#202404-202508

89420KGROMMET, VACUUM SENSOR

main90080-48071iAAZA2#202203-202508

90178A0024

main90178-A0024

9017910065

main90179-10065

14 parts on this diagram · 2 diagrams in section
