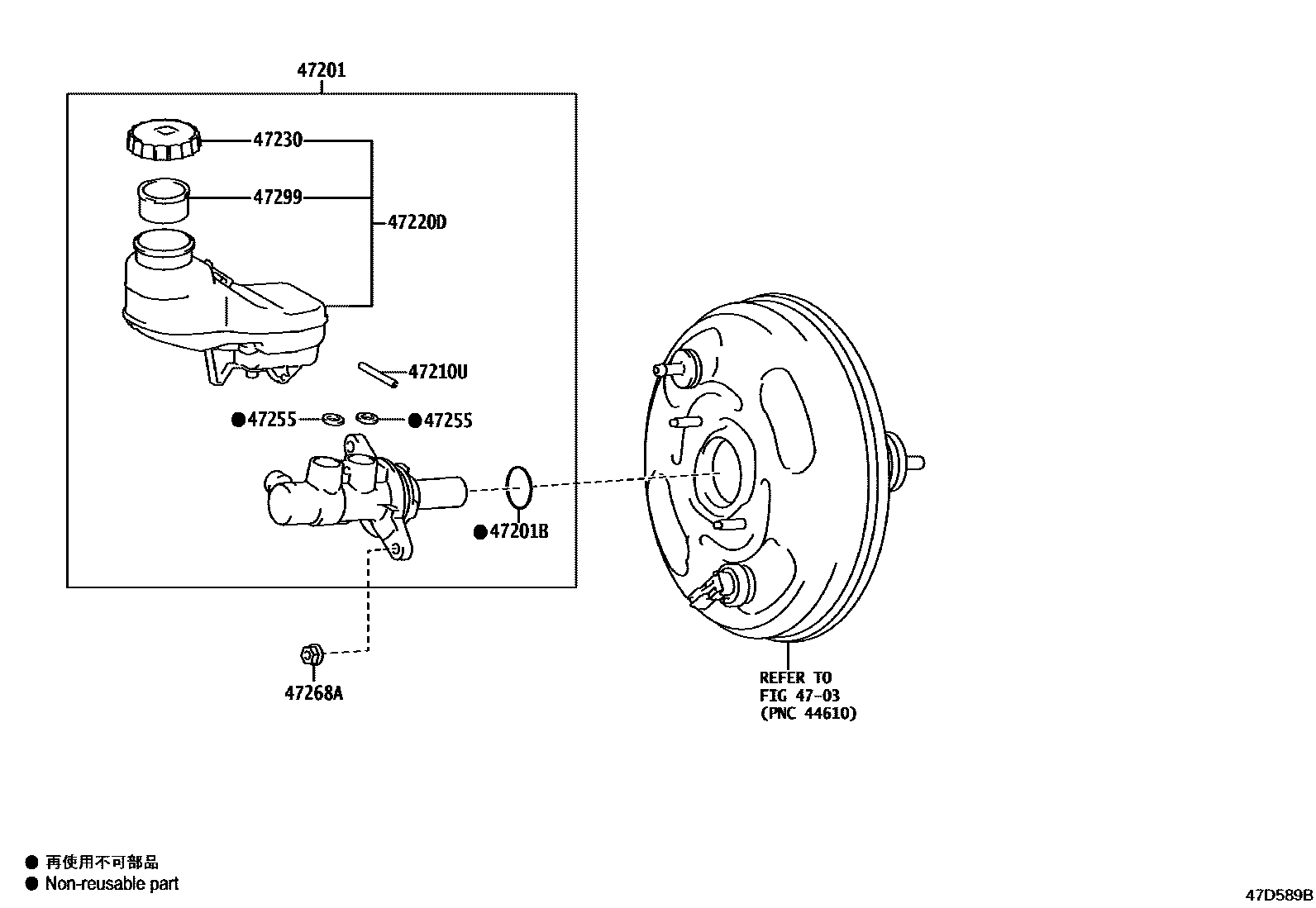

BRAKE MASTER CYLINDER

0001 1 0002 1

4703BRAKE BOOSTER & VACUUM TUBE

→ Go to FIG 47-03

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-F6010iAAZA2#202203-202508

47201BRING, O(FOR BRAKE MASTER CYLINDER)

main90015-AH002iAAZA2#202203-202508

47210UPIN, STRAIGHT(FOR BRAKE MASTER CYLINDER)

main90029-15803iAAZA2#202203-202508

47220DRESERVOIR ASSY, BRAKE MASTER CYLINDER

main47220-0R090iAAZA2#202203-202508

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-02310iAAZA2#202203-202508

main47230-47090iAAZH25202404

W(MARK)

47255GROMMET, MASTER CYLINDER RESERVOIR

main90029-48001×2iAAZA2#202203-202508

47268ANUT, BRAKE MASTER CYLINDER

main90080-18070×2iAAZA2#202203-202508

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-20060iAAZA2#202203-202508

9 parts on this diagram · 2 diagrams in section
