Toyota LEXUS NX SERIES(TMMC52E — FRONT STEERING GEAR & LINK

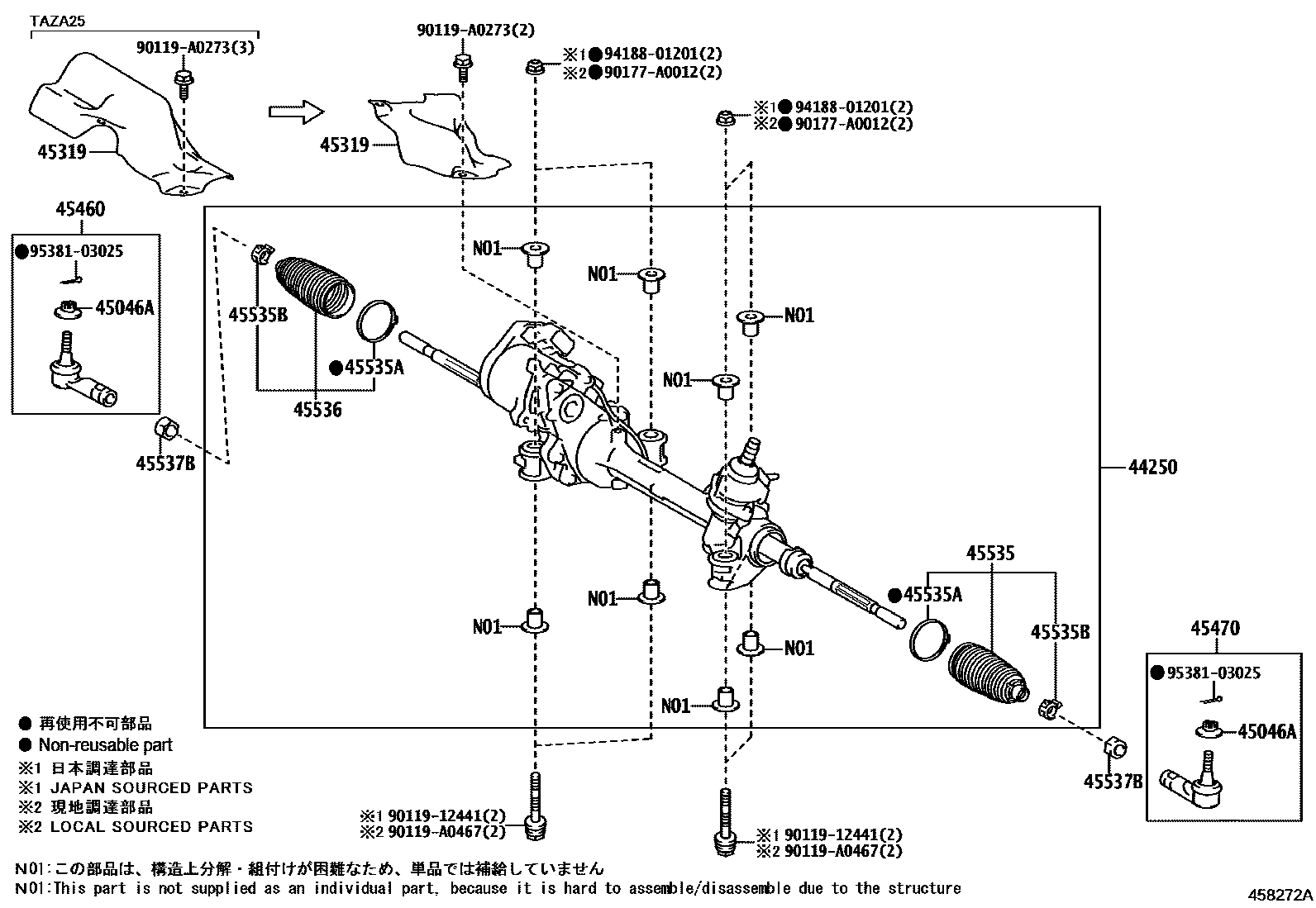

Parts diagram

44250GEAR ASSY, POWER STEERING(FOR RACK & PINION)

45046ANUT, CASTLE(FOR TIE ROD END)

45319INSULATOR, STEERING GEAR HEAT

45460ROD ASSY, TIE, RH

45470ROD ASSY, TIE, LH

45535BOOT, STEERING RACK, NO.1

45535ACLAMP(FOR STEERING RACK BOOT)

45535BCLIP(FOR STEERING RACK BOOT)

45536BOOT, STEERING RACK, NO.2

45537BNUT, RACK END LOCK

9011912441

90119A0273

90119A0467

90177A0012

9418801201

9538103025

16 parts on this diagram · 1 diagram in section

FRONT STEERING GEAR & LINK for Toyota LEXUS NX SERIES(TMMC52E

This section contains 16 genuine Toyota parts for the FRONT STEERING GEAR & LINK system of the Toyota LEXUS NX SERIES(TMMC52E. Key components include: GEAR ASSY, POWER STEERING(FOR RACK & PINION), NUT, CASTLE(FOR TIE ROD END), INSULATOR, STEERING GEAR HEAT, ROD ASSY, TIE, RH, ROD ASSY, TIE, LH.
