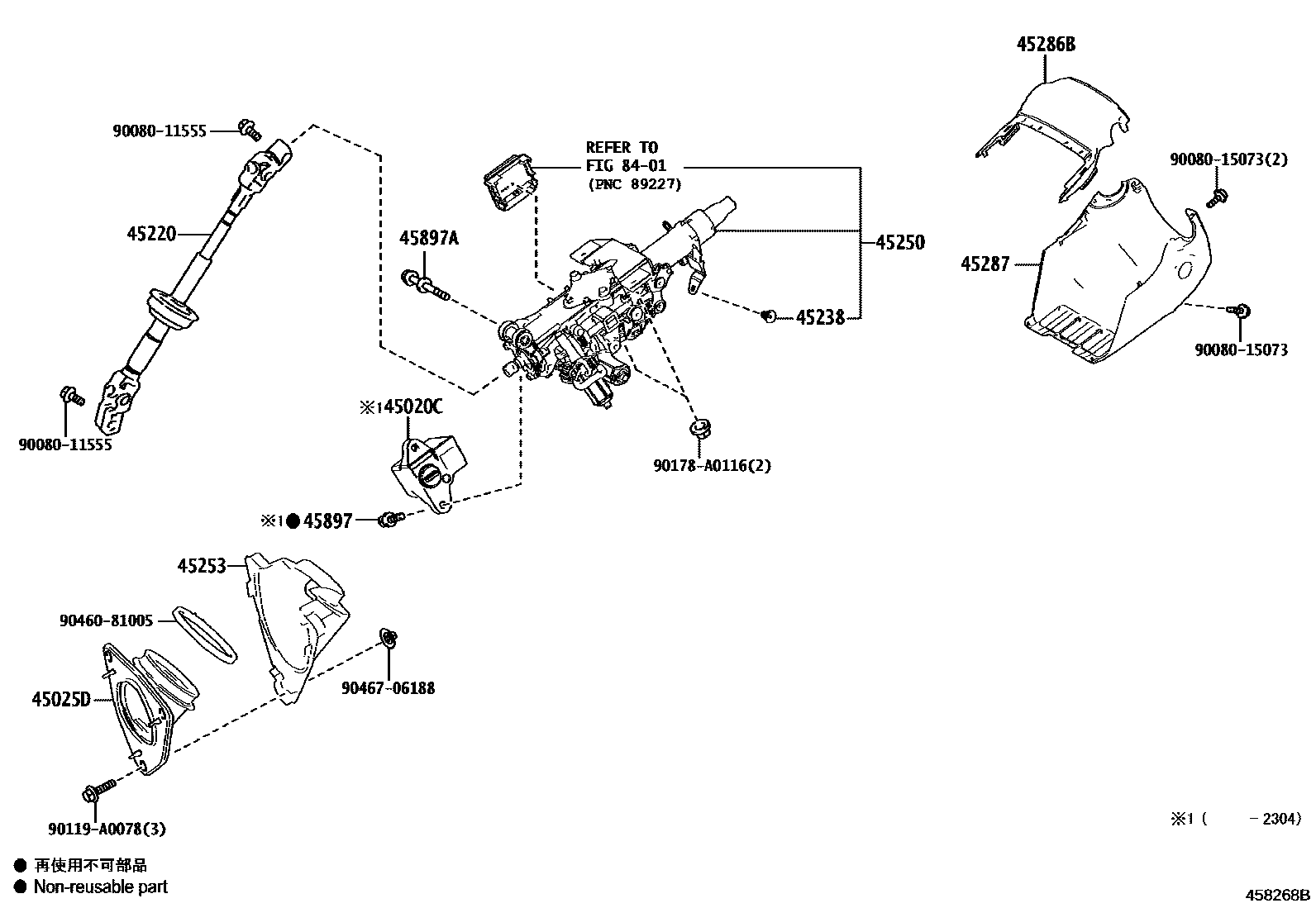

STEERING COLUMN & SHAFT

0001 1POWER TILT & TELESCOPIC 0002 1MANUAL TILT & TELESCOPIC

45020CACTUATOR ASSY, STEERING LOCK(W/ECU)

main45020-08020supersedes 45020-08030iAAZA2#,AAZH25; TAZA25202203-202304

STEERING COLUMN-MANUAL(TILT & TELESCOPIC)

main45020-08030supersedes 45020-08020iAAZA2#,AAZH25; TAZA25202203-202304

STEERING COLUMN-POWER(TILT & TELESCOPIC)

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

main45025-0R040iAAZA2#202203-202508

45220SHAFT ASSY, STEERING INTERMEDIATE

main45220-0R010iAAZA2#202203-202508

45238CLAMP, BOLT(FOR STEERING FLEXIBLE COUPLING)

main45238-11010iTAZA25202203

main45238-52010iAAZA2#202203-202508

45250COLUMN ASSY, STEERING

main45250-06B00supersedes 45250-06B90iAAZH25; TAZA25202304

STEERING COLUMN-MANUAL(TILT & TELESCOPIC),WITHOUT(LOCK)

main45250-06B90supersedes 45250-06B00iAAZH25; TAZA25202304

STEERING COLUMN-POWER(TILT & TELESCOPIC),WITHOUT(LOCK)

main45250-07191supersedes 45250-0C350iAAZA2#,AAZH25; TAZA25202203-202304

STEERING COLUMN-MANUAL(TILT & TELESCOPIC)

main45250-0C350supersedes 45250-07191iAAZA2#,AAZH25; TAZA25202203-202304

STEERING COLUMN-POWER(TILT & TELESCOPIC)

45253COVER, STEERING COLUMN HOLE

main45253-0R010iAAZA2#202203-202508

45286BCOVER, STEERING COLUMN, UPR

main45286-F6010-C0iAAZA2#,AAZH25202203-202409

BLACK,TRIM0#,2#,3#,4#

main45286-F6020iAAZA2#202409-202508

main45286-F6020-C0iTAZA25202203

BLACK,TRIM0#,2#,3#,4#

45287COVER, STEERING COLUMN, LWR

main45287-F6010-C0iAAZH25202203

BLACK,TRIM0#,2#,3#,4#

main45287-F6020-C0iTAZA25202203

BLACK,TRIM0#,2#,3#,4#

45897BOLT, STEERING LOCK SET

main45897-08010×2iAAZA2#,AAZH25,TAZA25202203-202304

(L)

main45897-12020×2iAAZA2#,AAZH25,TAZA25202203-202304

(J)

45897ABOLT, TILT STEERING PAWL SET

main90119-10A34iAAZA2#202203-202508

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9008011555

main90080-11555

9008015073

main90080-15073

90119A0078

main90119-A0078

90178A0116

main90178-A0116

9046081005

main90460-81005

9046706188

main90467-06188

17 parts on this diagram · 2 diagrams in section
