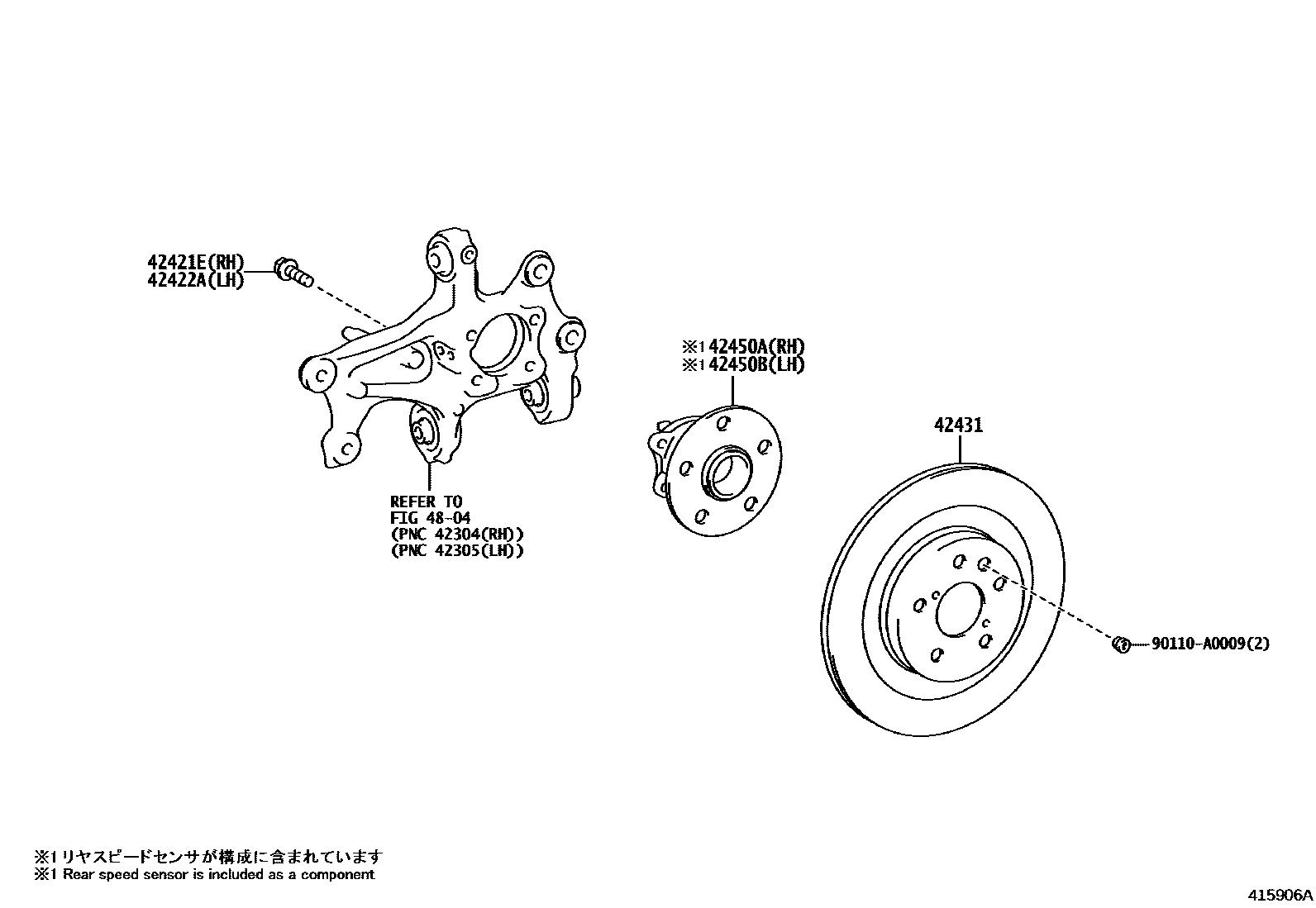

REAR AXLE SHAFT & HUB

0001 1 0002 1 0003 1 0004 1

42421EBOLT (FOR REAR AXLE BEARING CASE RH)

main90110-12016×4iAAZA2#202203-202508

(J)

main90110-A0011×4iAAZH25,TAZA25202203

(L)

42422ABOLT (FOR REAR AXLE BEARING CASE LH)

main90110-12016×4iAAZH25,TAZA25202203

(J)

main90110-A0011×4iAAZH25,TAZA25202203

(L)

42431DISC, REAR

main42431-F6010×2iAAZA2#202203-202508

42450AHUB & BEARING ASSY, REAR AXLE, RH

main42410-F6010iAAZH25,TAZA25202203

main42450-F6010iAAZA20202203-202508

42450BHUB & BEARING ASSY, REAR AXLE, LH

main42410-F6010iAAZA25202203-202508

main42450-F6010iAAZA20202203-202508

4804REAR SPRING & SHOCK ABSORBER

→ Go to FIG 48-04

90110A0009

main90110-A0009

7 parts on this diagram · 4 diagrams in section
