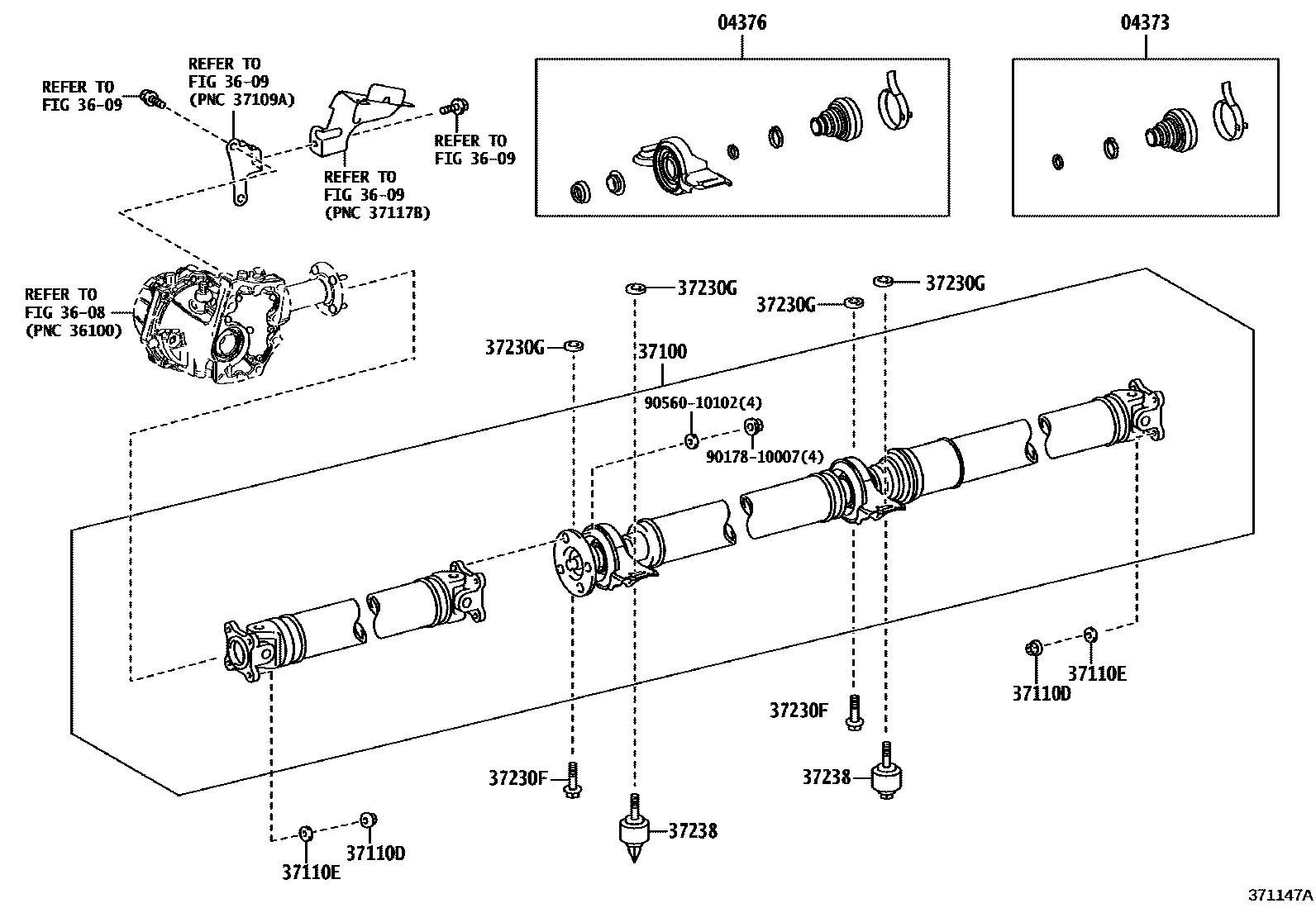

PROPELLER SHAFT & UNIVERSAL JOINT

04373BOOT KIT, UNIVERSAL

main04373-48010iAAZA25202203-202412

main04373-48011iAAZA25202412-202508

04376BEARING KIT, CENTER SUPPORT

main04376-48010iTAZA25202203-202411

main04376-48011iTAZA25202412

3608TRANSFER ASSEMBLY & GASKET KIT

→ Go to FIG 36-08

3609TRANSFER CASE & EXTENSION HOUSING

→ Go to FIG 36-09

37100SHAFT ASSY, PROPELLER W/CENTER BEARING

main37100-78010iAAZA25202203-202508

main37100-78020iTAZA25202203

37110DNUT (FOR PROPELLER SHAFT)

main90178-10007×8iTAZA25202203

(J)

main90178-A0124×8iTAZA25202203

(L)

main90179-08197×8iAAZA25202203-202508

37110EWASHER (FOR PROPELLER SHAFT)

main90201-08097×8iAAZA25202203-202508

main90560-10102×8iTAZA25202203

37230FBOLT, NO.1 (FOR CENTER SUPPORT BEARING)

main90119-10444×2iAAZA25202203-202508

(J)

main90119-A0246×2iTAZA25202203

*10-1.25PX35-35,(L)

37230GWASHER, NO.2 (FOR CENTER SUPPORT BEARING)

main90201-10081iTAZA25202203

T=4.5

main90201-10083iTAZA25202203

T=6.5

main90201-10084×4iAAZA25202203-202508

T=9.0

main90201-10123iAAZA25202203-202508

T=2.0

37238DAMPER, CENTER SUPPORT BEARING

main37209-10010×2iAAZA25202203-202508

9017810007

main90178-10007

9056010102

main90560-10102

12 parts on this diagram · 1 diagram in section
