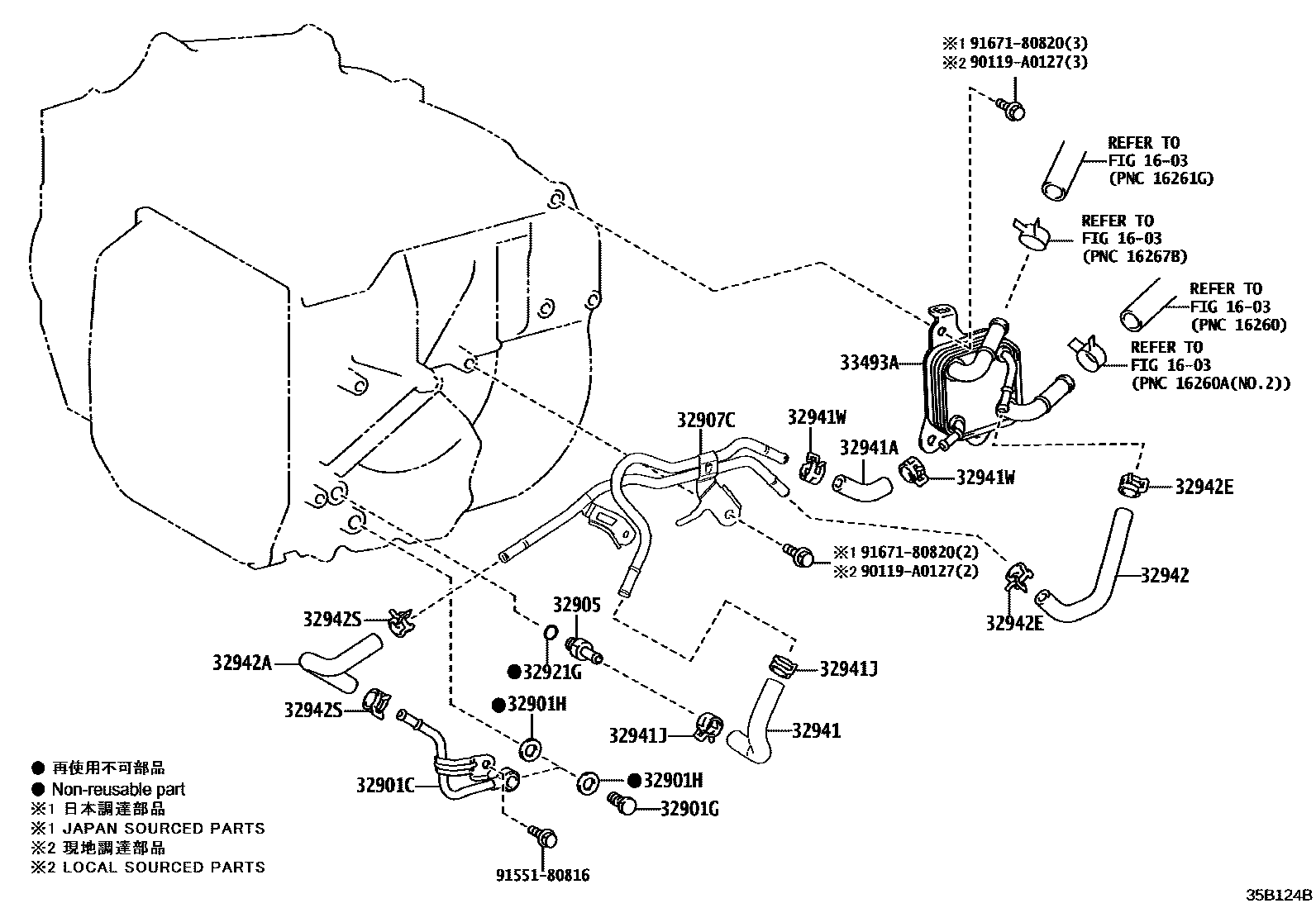

OIL COOLER & TUBE (ATM)

0001 1UB80E,UB80F 0002 1UA81F

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

32901CUNION SUB-ASSY, OIL COOLER

main32901-48020iAAZA2#202203-202508

32901GBOLT, UNION(FOR OIL COOLER)

main90401-14003iAAZA2#202203-202508

32901HGASKET(FOR OIL COOLER UNION)

main90430-14016×2iAAZA2#202203-202508

32905TUBE SUB-ASSY, OIL COOLER OUTLET, NO.1

main90404-14030iAAZA2#202203-202508

32907CTUBE SUB-ASSY, OIL COOLER W/O HOSE, NO.1

main32907-0R030iAAZA2#202203-202508

32921GRING, O(FOR OIL COOLER TUBE UNION)

main90301-11031iAAZA2#202203-202508

32941HOSE, OIL COOLER INLET, NO.1

main32941-0R070iAAZA2#202203-202508

main32941-F6010iTAZA25202203

32941AHOSE, OIL COOLER INLET, NO.2

main32941-06170iAAZA2#202203-202508

32941JCLIP, NO.1(FOR OIL COOLER HOSE)

main90466-16004iAAZA2#202203-202508

(J)

main90466-A0014iAAZA2#202203-202508

(L)

32941WCLIP,NO.5(FOR OIL COOLER TUBE)

main90466-16004iAAZA2#202203-202508

(J)

main90466-A0014iAAZA2#202203-202508

(L)

32942HOSE, OIL COOLER OUTLET, NO.1

main32942-06150iAAZA2#202203-202508

main32942-F6010iTAZA25202203

32942AHOSE, OIL COOLER OUTLET, NO.2

main32942-06160iAAZA2#202203-202508

32942ECLIP, NO.2(FOR OIL COOLER HOSE)

main90466-16004iAAZA2#202203-202508

(J)

main90466-A0014×2iTAZA25202203

(L)

32942SCLIP, NO.6(FOR OIL COOLER TUBE)

main90466-16004iAAZA2#202203-202508

(J)

main90466-A0014iAAZA2#202203-202508

(L)

33493ACOOLER, TRANSMISSION OIL(ATF WARMER)

main33493-06021iAAZA2#202203-202508

main33493-F6010iTAZA25202203

90119A0127

main90119-A0127

9155180816

main91551-80816

9167180820

main91671-80820

19 parts on this diagram · 2 diagrams in section
