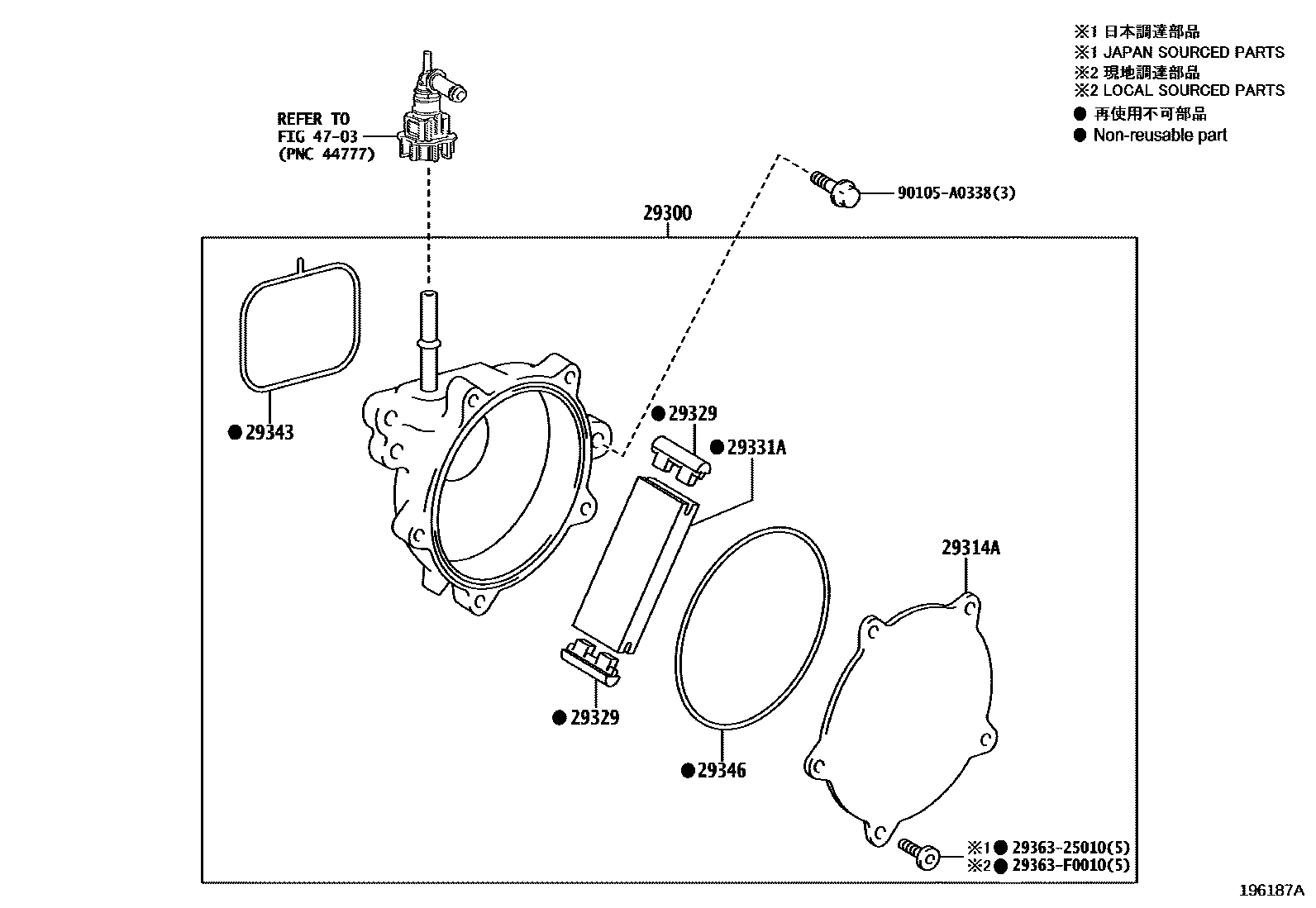

VACUUM PUMP

0001 1 0002 1

29300PUMP ASSY, VACUUM

main29300-25012iT24AFTS..TAZA25202203

(J)

main29300-F0012iA25AFKS..AAZA2#202203-202508

(L)

29314ACOVER, END

main29314-25010iT24AFTS..TAZA25202203

(J)

main29314-F0010iA25AFKS..AAZA2#202203-202508

(L)

29329CAP, VACUUM PUMP VANE

main29329-25011×2iA25AFKS..AAZA2#202203-202508

(J)

main29329-F0011×2iA25AFKS..AAZA2#202203-202508

(L)

29331AVANE, VACUUM PUMP

main29331-37010iA25AFKS..AAZA2#202203-202508

(J)

main29331-F0010iA25AFKS..AAZA2#202203-202508

(L)

29343RING, O VACUUM PUMP, NO.1

main29343-25010iT24AFTS..TAZA25202203

(J)

main29343-F0010iT24AFTS..TAZA25202210

(L)

29346RING, O VACUUM PUMP COVER

main29346-25010iA25AFKS..AAZA2#202203-202508

(J)

main29346-F0010iA25AFKS..AAZA2#202203-202508

(L)

4703BRAKE BOOSTER & VACUUM TUBE

→ Go to FIG 47-03

2936325010SCREW, HOLLOW VACUUM PUMP

main29363-25010

29363F0010SCREW, HOLLOW VACUUM PUMP

main29363-F0010

90105A0338

main90105-A0338

10 parts on this diagram · 2 diagrams in section
