VACUUM PIPING

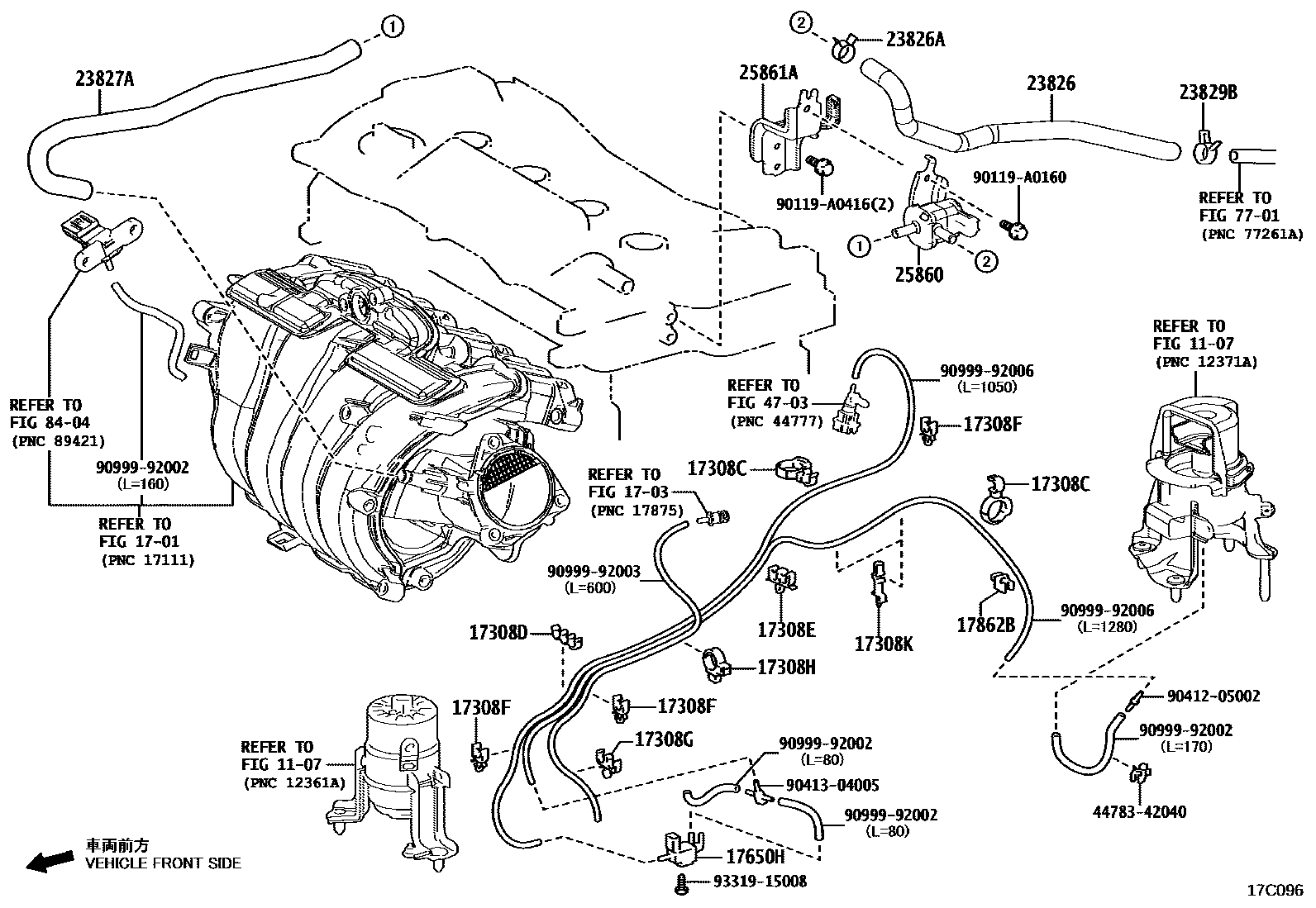

Parts diagram

1107MOUNTING

→ Go to FIG 11-07

1701MANIFOLD

→ Go to FIG 17-01

1703AIR CLEANER

→ Go to FIG 17-03

17308CCLAMP(FOR VACUUM HOSE)

main44783-33060i202203-202508

main44783-42040i202203

17308DCLAMP, NO.2(FOR VACUUM HOSE)

main44783-42040×3i202203

main90464-00074i202203-202508

17308ECLAMP, NO.3(FOR VACUUM HOSE)

main44783-42080i202203-202508

17308FCLAMP, NO.4(FOR VACUUM HOSE)

main44783-42040×3i202203-202508

main44783-78020×2i202203

17308GCLAMP, NO.5(FOR VACUUM HOSE)

main90469-07012i202203-202508

17308HCLAMP, NO.6(FOR VACUUM HOSE)

main90959-01434i202203-202508

17308KCLAMP, NO.7(FOR VACUUM HOSE)

main44783-78020×2i202203-202508

17650HVALVE, VACUUM SWITCHING

main90910-12059i202203-202508

17862BCLAMP, HOSE

main44783-42050i202203-202508

main44783-42060i202203-202508

23826HOSE, FUEL VAPOR FEED, NO.1

main23826-F0120i202203-202508

23826ACLIP(FOR FUEL VAPOR FEED HOSE, NO.1)

main96133-41501i202203-202508

23827AHOSE, FUEL VAPOR FEED, NO.2

main23820-F0081i202203

main23820-F0360i202203-202508

23829BCLIP(FOR FUEL VAPOR FEED HOSE)

main90466-A0013i202203

(L)

main96133-41501i202203-202508

main96136-41801i202203

(J)

25860VALVE ASSY, VACUUM SWITCHING, NO.1

main25860-25080i202203

main25860-F0010i202203-202508

main25860-F0020i202203

25861ABRACKET, VACUUM SWITCHING VALVE, NO.2

main25862-25011i202203-202508

main25862-25020i202203

4703BRAKE BOOSTER & VACUUM TUBE

→ Go to FIG 47-03

7701FUEL TANK & TUBE

→ Go to FIG 77-01

8404ELECTRONIC FUEL INJECTION SYSTEM

→ Go to FIG 84-04

4478342040CLAMP, VACUUM HOSE

main44783-42040

90119A0160

main90119-A0160

90119A0416

main90119-A0416

9041205002

main90412-05002

9041304005

main90413-04005

9099992002

main90999-92002

9099992003

main90999-92003

9099992006

main90999-92006

9331915008

main93319-15008

30 parts on this diagram · 4 diagrams in section
