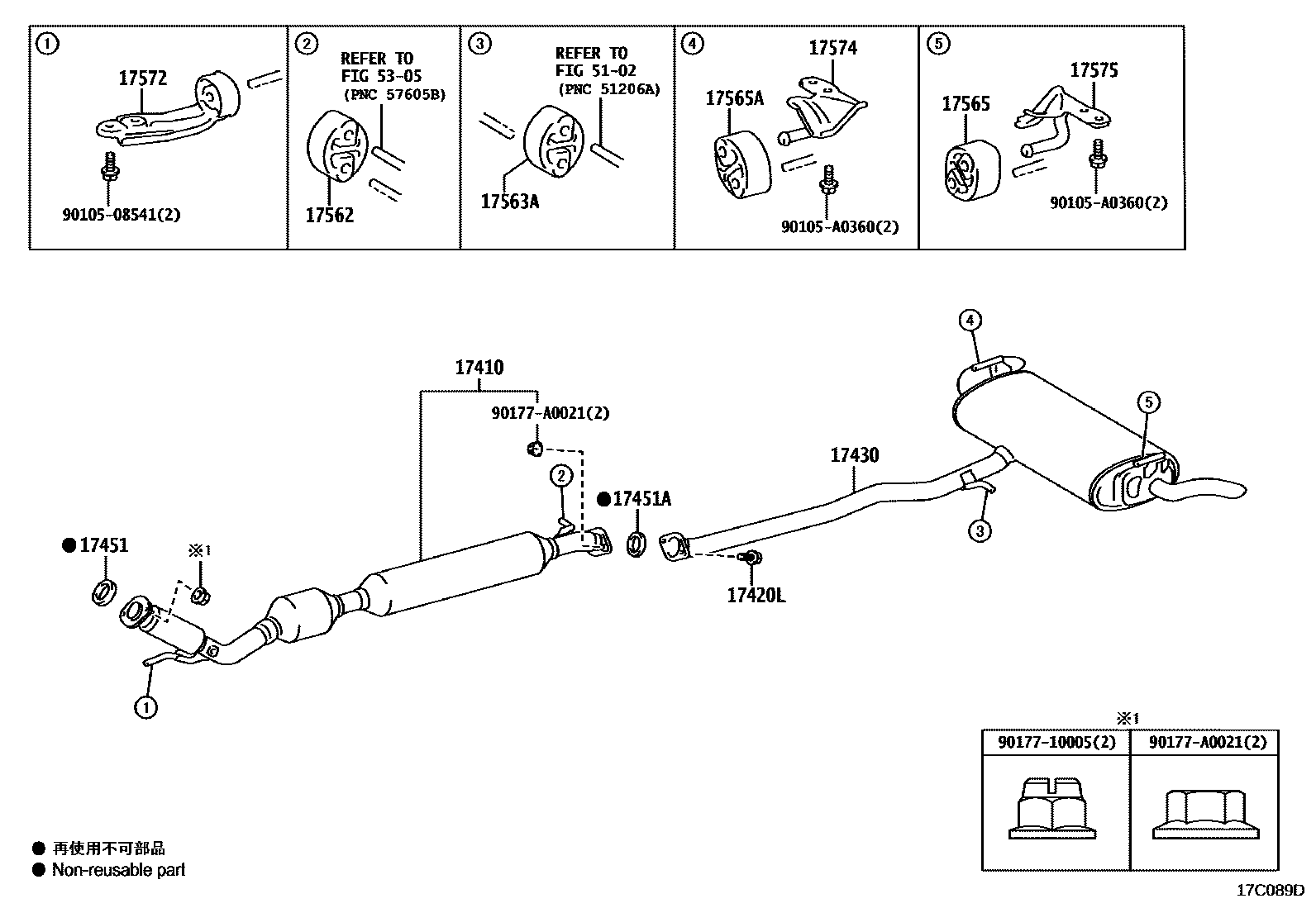

EXHAUST PIPE
17410PIPE ASSY, EXHAUST, FRONT
17420LBOLT, FLANGE(FOR EXHAUST PIPE)
17430PIPE ASSY, EXHAUST, TAIL
17451AGASKET, EXHAUST PIPE, NO.2
(J)
(L)
17562SUPPORT, EXHAUST PIPE, NO.2
17563ASUPPORT, EXHAUST PIPE, NO.3
17565SUPPORT, EXHAUST PIPE, NO.5
17565ASUPPORT, EXHAUST PIPE, NO.4
17572BRACKET, EXHAUST PIPE NO.1 SUPPORT
17574BRACKET, EXHAUST PIPE SUPPORT, NO.4
17575BRACKET, EXHAUST PIPE SUPPORT, NO.5
5102SUSPENSION CROSSMEMBER & UNDER COVER
5305FLOOR SIDE MEMBER
9010508541
main90105-08541
90105A0360
main90105-A0360
9017710005
main90177-10005
90177A0021
main90177-A0021
18 parts on this diagram · 3 diagrams in section
