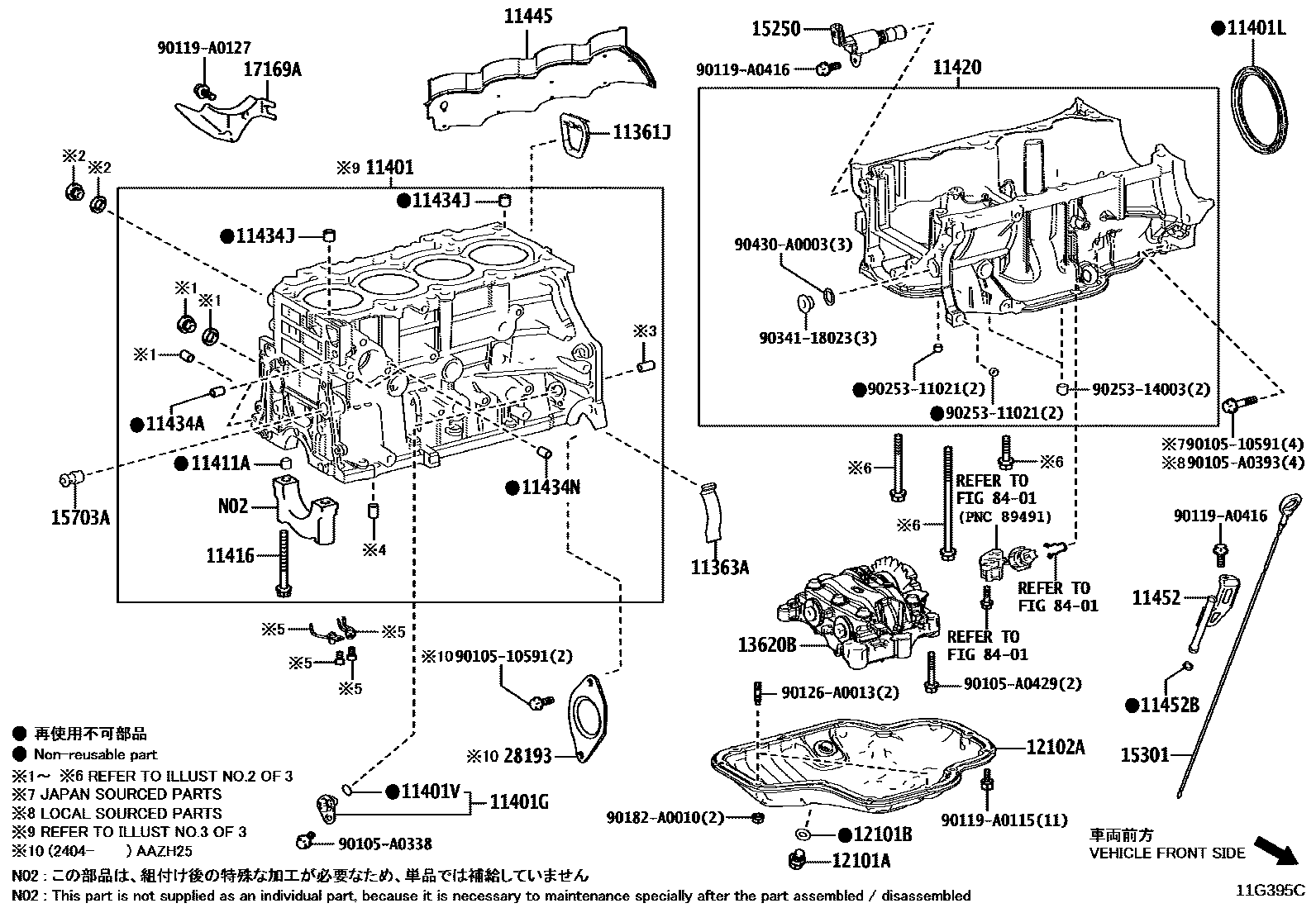

CYLINDER BLOCK
11361JCOVER, FLYWHEEL HOUSING UNDER
11363ACOVER, FLYWHEEL HOUSING SIDE
11401BLOCK SUB-ASSY, CYLINDER
(J)
(L)
11401GSENSOR, CRANK POSITION
(J)
11401LSEAL, ENGINE REAR OIL
(J)
11401VO-RING, CRANK POSITION SENSOR
11411APIN, RING(FOR CYLINDER BLOCK NO.1 )
11416BOLT(FOR CRANKSHAFT BEARING CAP SET)
NO.2,(L)
NO.3,(L)
NO.1,(J)
NO.1,(L)
NO.2,(J)
NO.3,(J)
11420CRANKCASE ASSY, STIFFENING
(J)
(L)
11434APIN, STRAIGHT(FOR TIMING GEAR COVER SET)
L=14,OD=6,(J)
L=14,OD=6,(L)
11434JPIN, RING (FOR CYLINDER HEAD SET)
11434NPIN, STRAIGHT(FOR WATER INLET HOUSING)
(J)
(L)
11445SPACER, CYLINDER BLOCK WATER JACKET
11452GUIDE, OIL LEVEL GAGE
(J)
(L)
11452BRING, O(FOR OIL LEVEL GAGE GUIDE)
12101APLUG(FOR OIL PAN DRAIN)
(J)
12101BGASKET(FOR OIL PAN DRAIN PLUG)
(J)
(L)
12102APAN SUB-ASSY, OIL, NO.2
(J)
(L)
13620BBALANCER ASSY, ENGINE
(J)
(L)
15250VALVE ASSY, OIL PRESSURE CONTROL
(J)
(L)
(L)
15301GAGE SUB-ASSY, OIL LEVEL
(J)
(L)
15703AVALVE SUB-ASSY, OIL NOZZLE
17169AINSULATOR, EXHAUST MANIFOLD HEAT, NO.3
(L)
28193INSULATOR, STARTER HOLE
8401SWITCH & RELAY & COMPUTER
9010510591
main90105-10591
90105A0338
main90105-A0338
90105A0393
main90105-A0393
90105A0429
main90105-A0429
90119A0115
main90119-A0115
90119A0127
main90119-A0127
90119A0416
main90119-A0416
90126A0013
main90126-A0013
90182A0010
main90182-A0010
9025311021
main90253-11021
9025314003
main90253-14003
9034118023
main90341-18023
90430A0003
main90430-A0003
38 parts on this diagram · 5 diagrams in section
