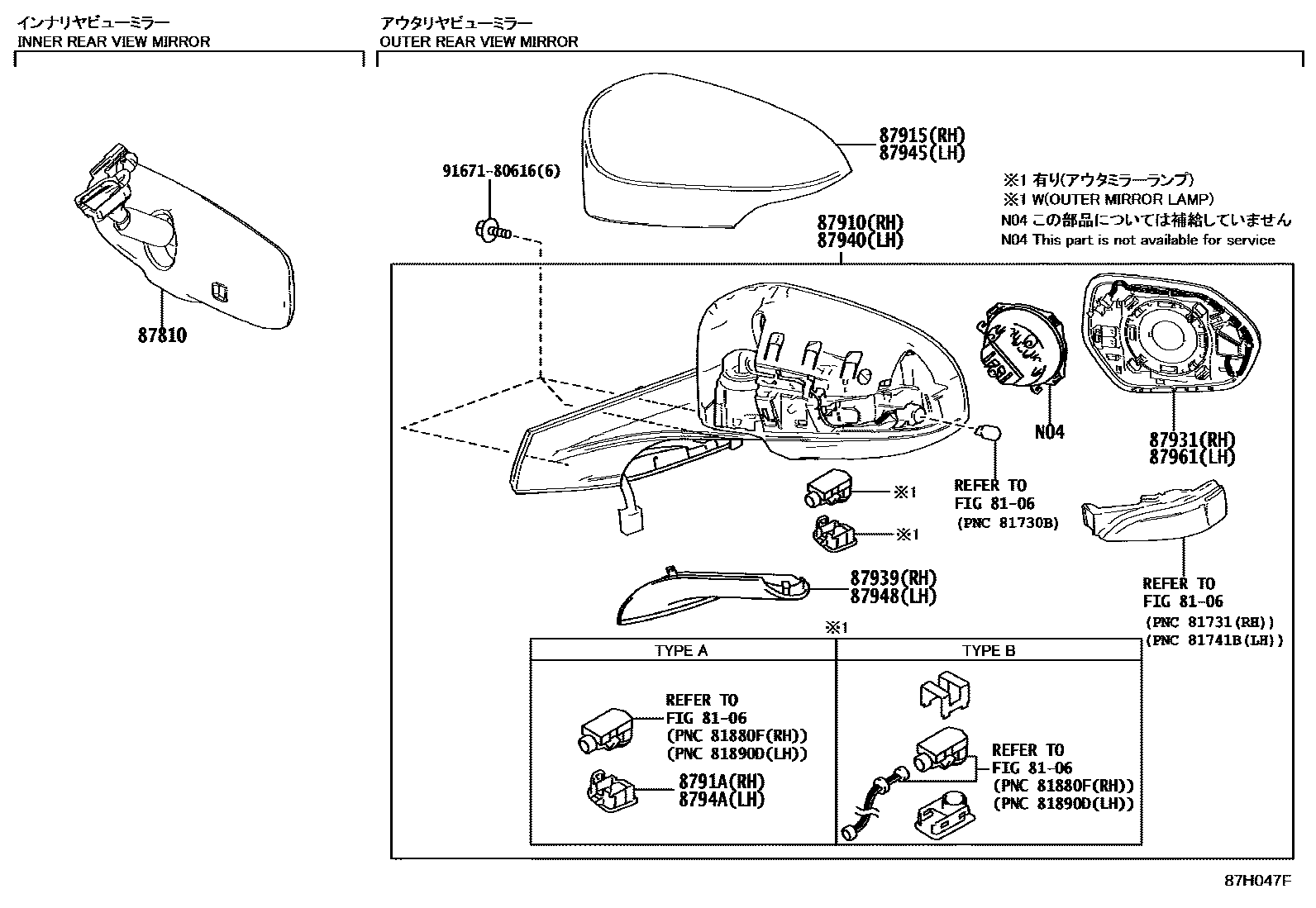

MIRROR
8106SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP
87810MIRROR ASSY, INNER REAR VIEW
87910MIRROR ASSY, OUTER REAR VIEW, RH
NO PAINT REQ.
NO PAINT REQ.,TYPE A:REFER ILLUST.
WIRELESS DOOR LOCK-WITH(SMART ENTRY SYSTEM)
WIRELESS DOOR LOCK-WITH(SMART ENTRY SYSTEM)&LANE CHANGE ASSIST-WITH(*BSM & LANE CHANGE ASSIST & *RCTA)
LIMITED PACKAGE&LANE CHANGE ASSIST-WITH(*BSM & LANE CHANGE ASSIST & *RCTA),TYPE A:REFER ILLUST.; XLE PREMIUM PACKAGE&LANE CHANGE ASSIST-WITH(*BSM & LANE CHANGE ASSIST & *RCTA),TYPE A:REFER ILLUST.
87915COVER, OUTER MIRROR, RH
8791ACOVER, OUTER MIRROR, RH NO.2
87939COVER, OUTER MIRROR HOLE, RH
87940MIRROR ASSY, OUTER REAR VIEW, LH
NO PAINT REQ.
NO PAINT REQ.,TYPE A:REFER ILLUST.
WIRELESS DOOR LOCK-WITH(SMART ENTRY SYSTEM)
WIRELESS DOOR LOCK-WITH(SMART ENTRY SYSTEM)&LANE CHANGE ASSIST-WITH(*BSM & LANE CHANGE ASSIST & *RCTA)
LIMITED PACKAGE&LANE CHANGE ASSIST-WITH(*BSM & LANE CHANGE ASSIST & *RCTA),TYPE A:REFER ILLUST.; XLE PREMIUM PACKAGE&LANE CHANGE ASSIST-WITH(*BSM & LANE CHANGE ASSIST & *RCTA),TYPE A:REFER ILLUST.
87945COVER, OUTER MIRROR, LH
87948COVER, OUTER MIRROR HOLE, LH
8794ACOVER, OUTER MIRROR, LH NO.2
9167180616
main91671-80616
13 parts on this diagram · 2 diagrams in section
