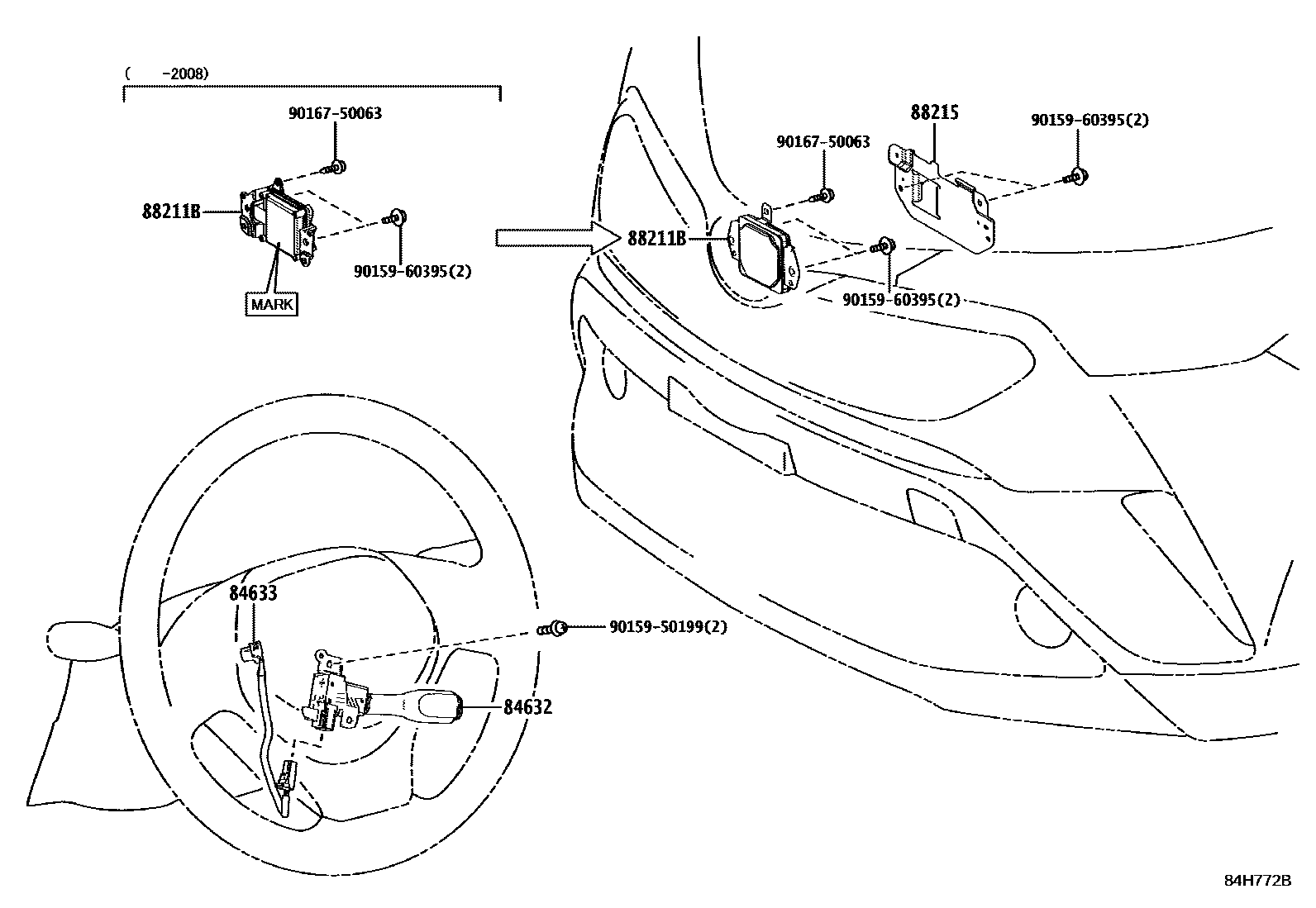

CRUISE CONTROL (AUTO DRIVE)

84632SWITCH, CRUISE CONTROL MAIN

main84632-47010iZGX10201801-202212

84633WIRE, CRUISE CONTROL SWITCH

main84633-10010iZGX10201801-202212

88211BSENSOR ASSY, MILLIMETER WAVE RADAR

main88210-0W010iZGX10201805-201910

main88210-10010iZGX10202003-202008

MARK=88210-10010

main88210-10070iZGX10202209-202212

(J)

main88210-F4011iZGX10201801-201805

MARK=88210-F4011

main88210-F4050iZGX10201912-202008

MARK=88210-F4050

main88210-F4050iZGX10201910-201912

main88210-F4070iZGX10202008-202209

main88210-F4070iZGX10202209-202212

(L)

88215BRACKET, MILLIMETER WAVE RADAR SENSOR, NO.1

main88215-10010iZGX10201801-202212

9015950199

main90159-50199

9015960395

main90159-60395

9016750063

main90167-50063

7 parts on this diagram · 1 diagram in section
