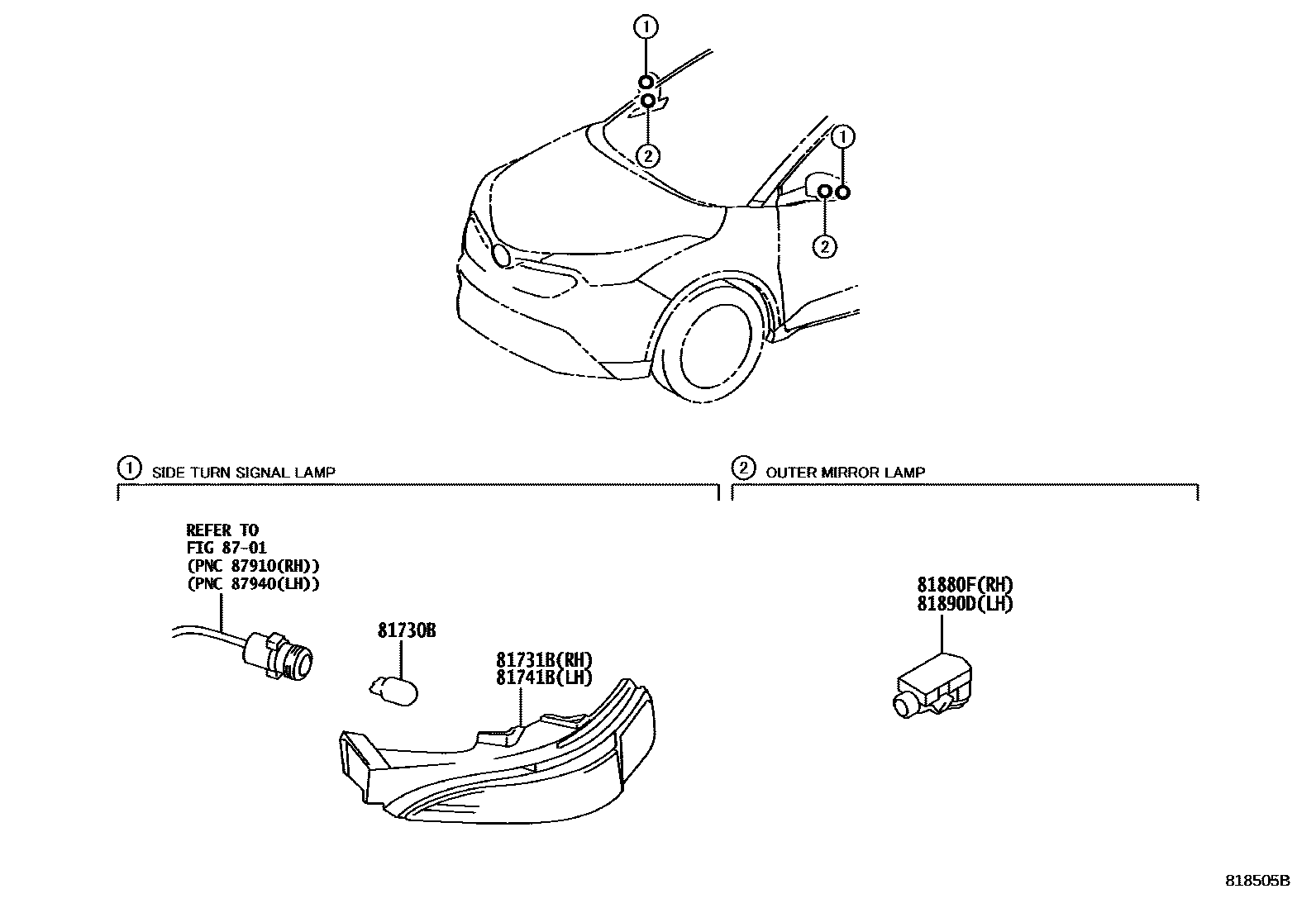

SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP

81730BBULB (FOR SIDE TURN SIGNAL LAMP)

main90981-WF011×2i201801-201910

12V 5W

81731BLENS & BODY, SIDE TURN SIGNAL LAMP, RH

main81731-02120i201801-201910

81741BLENS & BODY, SIDE TURN SIGNAL LAMP, LH

main81741-02040i201801-201910

81880FLAMP ASSY, OUTER MIRROR, RH

main81880-F4012i201910-202212

TYPE A:REFER 87-01

main81880-F4010i201801-201806

WIRELESS DOOR LOCK-WITH(SMART ENTRY SYSTEM)&LANE CHANGE ASSIST-WITH(*BSM & LANE CHANGE ASSIST & *RCTA)

main81880-F4011i201806-201808

LIMITED PACKAGE&LANE CHANGE ASSIST-WITH(*BSM & LANE CHANGE ASSIST & *RCTA),TYPE A:REFER 87-01; XLE PREMIUM PACKAGE&LANE CHANGE ASSIST-WITH(*BSM & LANE CHANGE ASSIST & *RCTA),TYPE A:REFER 87-01

81890DLAMP ASSY, OUTER MIRROR, LH

main81890-F4012i201910-202212

TYPE A:REFER 87-01

main81890-F4010i201801-201806

WIRELESS DOOR LOCK-WITH(SMART ENTRY SYSTEM)&LANE CHANGE ASSIST-WITH(*BSM & LANE CHANGE ASSIST & *RCTA)

main81890-F4011i201806-201808

LIMITED PACKAGE&LANE CHANGE ASSIST-WITH(*BSM & LANE CHANGE ASSIST & *RCTA),TYPE A:REFER 87-01; XLE PREMIUM PACKAGE&LANE CHANGE ASSIST-WITH(*BSM & LANE CHANGE ASSIST & *RCTA),TYPE A:REFER 87-01

5 parts on this diagram · 1 diagram in section
