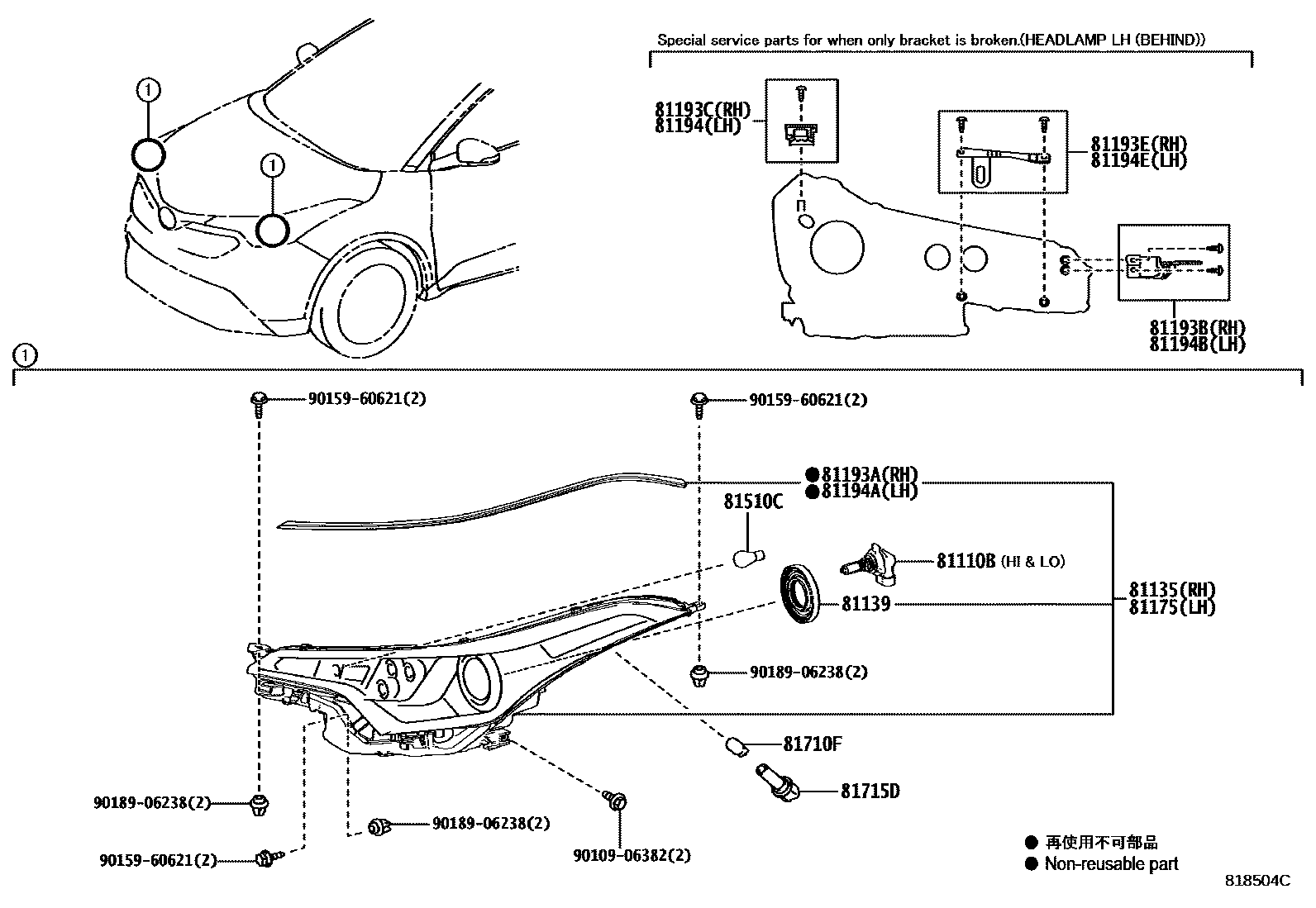

HEADLAMP

0001 1HALOGEN HEADLAMP 0002 1LED HEADLAMP(PROJECTOR TYPE) 0003 1LED HEADLAMP(MULTI REFLECTOR

81110BBULB(FOR HEADLAMP, NO.1)

main90981-13091×2iZGX10201801-201910

12V 55W,HALOGEN

81135UNIT ASSY, HEADLAMP, RH

main81130-10A00iZGX10201801-201910

main81140-10A70iZGX10..D,G201910-202212

main81145-10B00iZGX10..E201910-202212

81139COVER, HEADLAMP SOCKET

main90075-65006×2iZGX10201801-201910

81175UNIT ASSY, HEADLAMP, LH

main81070-10A70iZGX10..D,G201910-202212

main81170-10A00iZGX10201801-201910

main81185-10B00iZGX10..E201910-202212

81193APROTECTOR, HEADLAMP, RH

main81193-10040iZGX10201801-201910

main81193-10050iZGX10201910-202212

81193BRETAINER, HEADLAMP PROTECTOR, UPPER RH NO.2

main81193-10020iZGX10201801-201910

81193CRETAINER, RH HEADLAMP PROTECTOR, UPPER RH

main81193-10010iZGX10201801-201910

81193ERETAINER, HEADLAMP PROTECTOR, UPPER RH NO.3

main81193-10030iZGX10201801-201910

81194RETAINER, HEADLAMP PROTECTOR, UPPER LH

main81194-10010iZGX10201910-202212

81194APROTECTOR, HEADLAMP, LH

main81194-10040iZGX10201801-201910

main81194-10050iZGX10201910-202212

81194BRETAINER, HEADLAMP PROTECTOR, UPPER LH NO.2

main81194-10020iZGX10201801-201910

81194ERETAINER, HEADLAMP PROTECTOR, UPPER LH NO.3

main81194-10030iZGX10201910-202212

81510CBULB (FOR FRONT TURN SIGNAL LAMP)

main90981-15021×2iZGX10..D,G201910-202212

12V 21W,AMBER

main90981-15028×2iZGX10201801-201910

12V 21W,AMBER

81710FBULB, FRONT SIDE MAKER LAMP

main90981-11069×2iZGX10..D,G201910-202212

main99132-12050×2iZGX10201801-201910

81715DSOCKET PLUG, FRONT MARKER LAMP

main90075-60089×2iZGX10201801-201910

9010906382

main90109-06382

9015960621

main90159-60621

9018906238

main90189-06238

18 parts on this diagram · 3 diagrams in section
