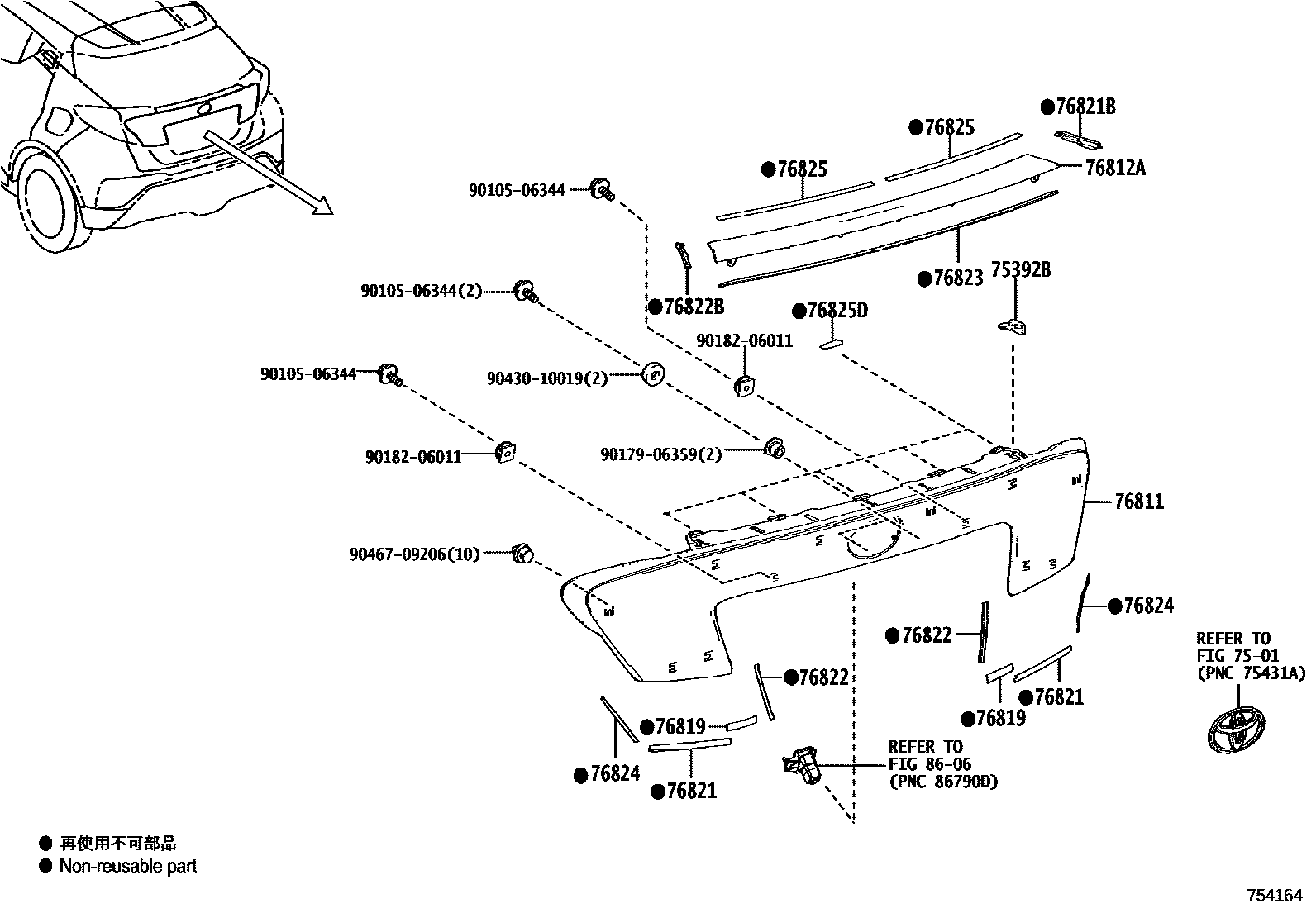

REAR MOULDING

7501EMBLEM & NAME PLATE (EXTERIOR & INTERIOR)

→ Go to FIG 75-01

75392BRETEINER, OUTSIDE MOULDING, NO.1

main75392-35200iZGX10201801-202212

76811GARNISH, BACK DOOR, OUTSIDE

main76811-10900iZGX10201801-202212

76812AGARNISH, BACK DOOR, OUTSIDE NO.2

main76812-10901iZGX10201801-202212

76819SEAL, BACK DOOR OUTSIDE GARNISH

main76819-10010iZGX10201801-202008

76821PROTECTOR, BACK DOOR GARNISH MOULDING, UPPER

main76821-10010iZGX10201801-202212

76821BPROTECTOR, BACK DOOR GARNISH SIDE, RH

main76841-10010iZGX10201801-202212

76822PROTECTOR, BACK DOOR GARNISH MOULDING, LOWER

main76822-10010iZGX10201801-202212

76822BPROTECTOR, BACK DOOR GARNISH SIDE, LH

main76842-10010iZGX10201801-202212

76823PROTECTOR, BACK DOOR GARNISH MOULDING, RH

main76823-10030iZGX10201801-202212

76824PROTECTOR, BACK DOOR GARNISH MOULDING, LH

main76824-10020iZGX10201801-202212

76825PROTECTOR, BACK DOOR OUTSIDE GARNISH

main76825-10040iZGX10201801-202212

76825DPROTECTOR, BACK DOOR OUTSIDE GARNISH, NO.1

main76835-10020iZGX10201801-202212

8606CAMERA & REAR MONITOR DISPLAY

→ Go to FIG 86-06

9010506344

main90105-06344

9017906359

main90179-06359

9018206011

main90182-06011

9043010019

main90430-10019

9046709206

main90467-09206

19 parts on this diagram · 1 diagram in section
