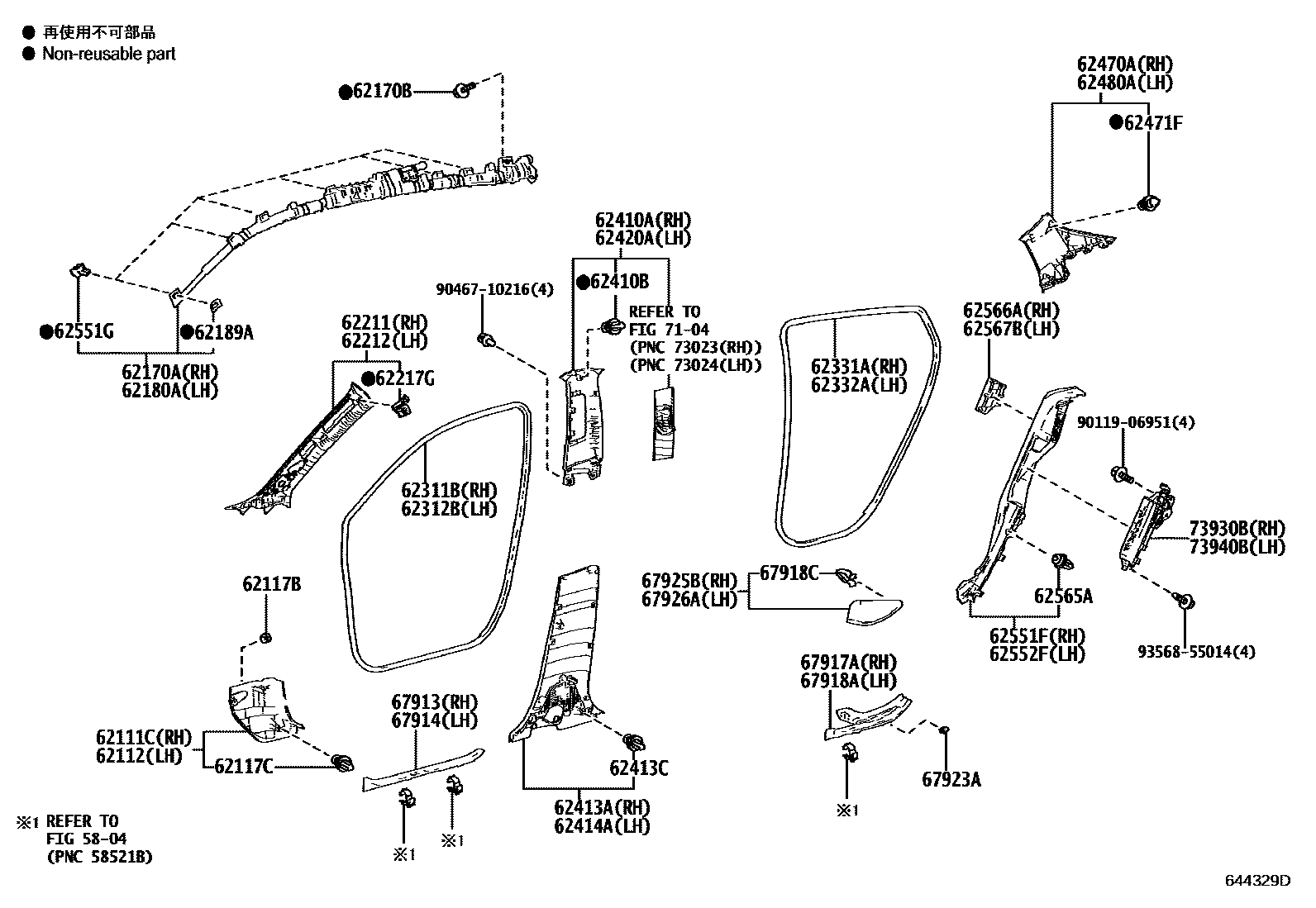

INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING

5804MAT & CARPET

→ Go to FIG 58-04

62111CBOARD, COWL SIDE TRIM, RH

main62111-10100-C1iZGX10201801-201910

BLACK,TRIM2#

62112BOARD, COWL SIDE TRIM, LH

main62112-10120-C1iZGX10201801-201910

BLACK,TRIM2#

62117BCLIP, NO.1(FOR COWL SIDE TRIM)

main90467-06147×2iZGX10201801-201910

62117CCLIP, NO.2(FOR COWL SIDE TRIM)

main90467-10161×4iZGX10201801-201910

62170AAIRBAG ASSY, CURTAIN SHIELD, RH

main62170-10030iZGX10201801-201910

62170BBOLT, W/WASHER

main91673-80616×6iZGX10201801-201910

62180AAIRBAG ASSY, CURTAIN SHIELD, LH

main62180-10030iZGX10201801-201910

62189ASPACER, CURTAIN SHIELD AIRBAG CLIP

main62189-42010×2iZGX10201801-201910

62211GARNISH, FRONT PILLAR, RH

main62210-10020-C0iZGX10201801-201910

BLACK,TRIM2#

main62210-10050-B0iZGX10..D,E201910-202212

LT.GRAY,TRIM2#

main62210-10050-C0iZGX10..G201910-202212

BLACK,TRIM2#,8#

62212GARNISH, FRONT PILLAR, LH

main62220-10020-C0iZGX10201801-201910

BLACK,TRIM2#

main62220-10050-B0iZGX10..D,E201910-202212

LT.GRAY,TRIM2#

main62220-10050-C0iZGX10..G201910-202212

BLACK,TRIM2#,8#

62217GCLIP, FRONT PILLAR GARNISH

main62217-24020×4iZGX10201801-201910

62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH

main62311-10040iZGX10201801-201910

62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH

main62312-10040iZGX10201801-201910

62331AWEATHERSTRIP, REAR DOOR OPENING TRIM, RH

main62331-10010iZGX10201801-201910

62332AWEATHERSTRIP, REAR DOOR OPENING TRIM, LH

main62332-10010iZGX10201801-201910

62410AGARNISH ASSY, CENTER PILLAR, RH

main62410-10010-C2iZGX10201801-201910

BLACK,TRIM2#

62410BCLIP

main90467-10167×2iZGX10201801-201910

62413AGARNISH, CENTER PILLAR, LOWER RH

main62413-10110-C0iZGX10201801-201910

BLACK,TRIM2#

62413CCLIP (FOR CENTER LOWER GARNISH)

main90467-10161×6iZGX10201801-201910

62414AGARNISH, CENTER PILLAR, LOWER LH

main62414-10110-C0iZGX10201801-201910

BLACK,TRIM2#

62420AGARNISH ASSY, CENTER PILLER, LH

main62420-10010-C2iZGX10201801-201910

BLACK,TRIM2#

62470AGARNISH ASSY, ROOF SIDE, INNER RH

main62470-10010-C1iZGX10201801-201910

BLACK,TRIM2#

62471FCLIP (FOR ROOF SIDE, INNER UPPER GARNISH)

main90467-09236×10iZGX10201801-201910

62480AGARNISH ASSY, ROOF SIDE, INNER LH

main62480-10010-C1iZGX10201801-201910

BLACK,TRIM2#

62551FGARNISH, REAR SEAT SIDE, RH

main62551-10070-C0iZGX10201801-201910

BLACK,TRIM2#

62551GCLIP

main90467-18017×12iZGX10201801-201910

62552FGARNISH, REAR SEAT SIDE, LH

main62552-10060-C0iZGX10201801-201910

BLACK,TRIM2#

62565ACLIP (FOR REAR SEAT SIDE GARNISH)

main62217-13010×2iZGX10201801-201910

62566ACOVER, REAR PILLAR, RH

main62566-10010-C0iZGX10201801-201910

BLACK,TRIM2#

62567BCOVER, REAR PILLAR, LH

main62567-10010-C0iZGX10201801-201910

BLACK,TRIM2#

67913PLATE, FRONT DOOR SCUFF, RH

main67913-10110-C1iZGX10201801-201910

BLACK,TRIM2#

67914PLATE, FRONT DOOR SCUFF, LH

main67914-10100-C1iZGX10201801-201910

BLACK,TRIM2#

67917APLATE, REAR DOOR SCUFF, RH

main67917-10080-C0iZGX10201801-201910

BLACK,TRIM2#

67918APLATE, REAR DOOR SCUFF, LH

main67918-10060-C0iZGX10201801-201910

BLACK,TRIM2#

67918CCLIP(FOR REAR SCUFF PLATE)

main90467-05171×8iZGX10201801-201910

67923ACLAMP, DOOR SCUFF PLATE, NO.1

main67923-30030×2iZGX10201801-201910

67925BPANEL, REAR DOOR SCUFF, RH

main67925-F4010-C1iZGX10201801-201910

BLACK,TRIM2#

67926APANEL, REAR DOOR SCUFF, LH

main67926-F4010-C1iZGX10201801-201910

BLACK,TRIM2#

7104SEAT BELT & CHILD RESTRAINT SEAT

→ Go to FIG 71-04

73930BAIRBAG, REAR SEAT, RH

main73930-10010iZGX10201801-201910

73940BAIRBAG, REAR SEAT, LH

main73940-10010iZGX10201801-201910

9011906951

main90119-06951

9046710216

main90467-10216

9356855014

main93568-55014

45 parts on this diagram · 1 diagram in section
