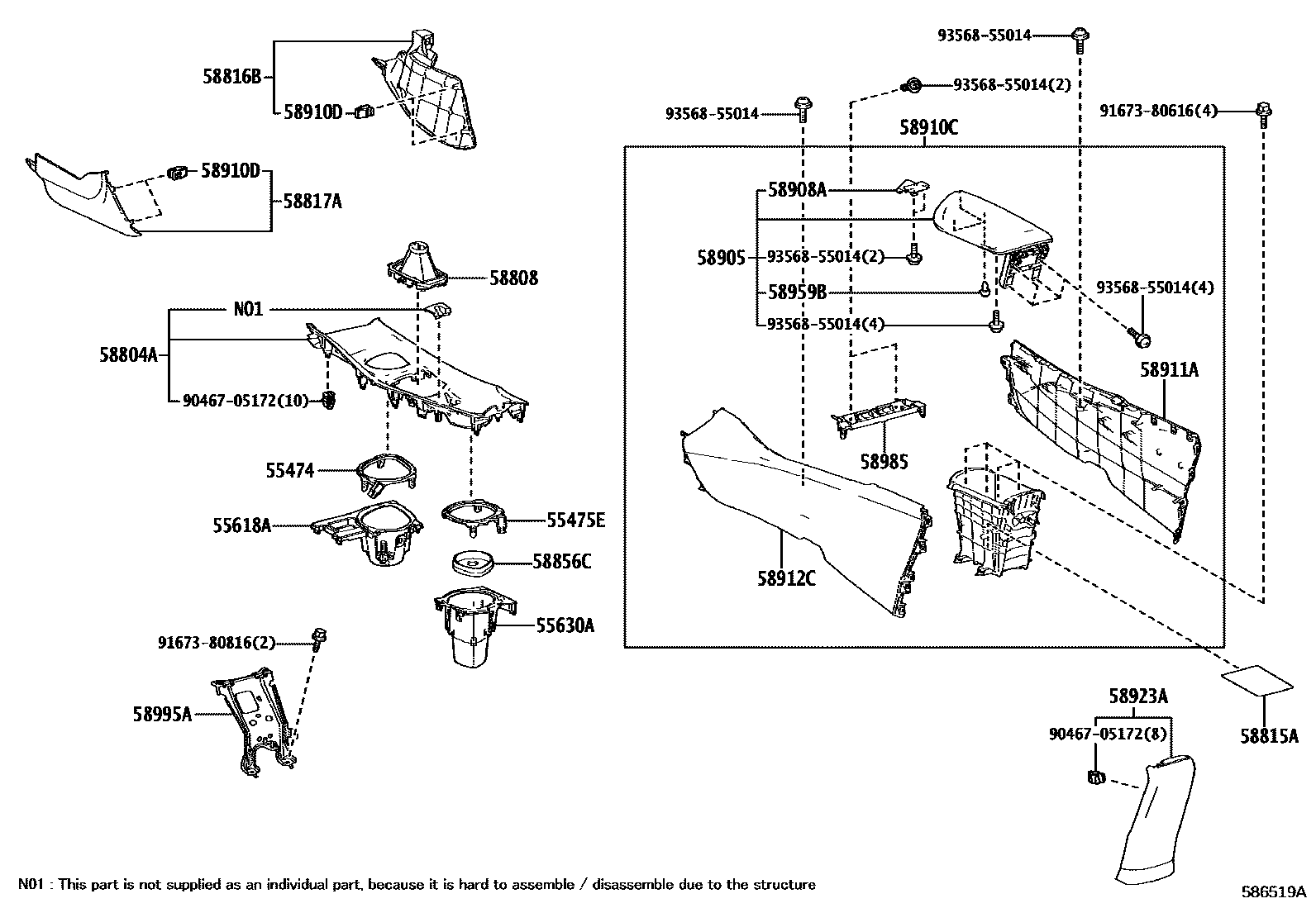

CONSOLE BOX & BRACKET

55474GARNISH, INSTRUMENT CLUSTER FINISH PANEL, CENTER

main55474-10100iZGX10..E201910-202212

main55474-10120iZGX10..D,G201910-202212

55475EGARNISH, INSTRUMENT CLUSTER FINISH PANEL, CENTER

main55475-10130iZGX10..E201910-202212

main55475-10150iZGX10201801-201910

55618AHOLDER, CONSOLE BOX CUP

main55618-10020iZGX10201910-202212

55630AHOLDER, REAR CONSOLE BOX, CUP

main55630-10020iZGX10201801-201910

58804APANEL SUB-ASSY, CONSOLE, UPPER

main58804-10030iZGX10201801-201910

main58804-10090iZGX10..E,G201910-202212

main58804-10050iZGX10201806-201910

LIMITED PACKAGE; XLE PACKAGE; XLE PREMIUM PACKAGE

58808COVER SUB-ASSY, SHIFTING HOLE

main58808-10120-C0iZGX10201801-201903

BLACK,TRIM2#

main58808-10170-C0iZGX10201904-201910

BLACK,TRIM2#

58815ACARPET, CONSOLE BOX

main58815-10050iZGX10201801-201910

58816BINSERT, CONSOLE BOX

main58816-10020-C0iZGX10..D; ZGX10..E; ZGX10..G201910-202212

BLACK,TRIM2#; BLACK,TRIM2#,4#,8#; BLACK,TRIM2#,8#

58817AINSERT, CONSOLE BOX, FRONT NO.2

main58817-10020-C0iZGX10201801-201910

BLACK,TRIM2#

58856CHOLDER, CONSOLE

main58856-10010iZGX10201801-201805

main58856-10020iZGX10201806-201910

58905DOOR SUB-ASSY, CONSOLE COMPARTMENT

main58905-10030-C0iZGX10..D; ZGX10..E; ZGX10..G201910-202212

BLACK,TRIM2#; BLACK,TRIM2#,81; BLACK,TRIM20

main58905-10030-E0iZGX10201806-201910

LICORICE,TRIM20

main58905-10030-E1iZGX10..E201910-202212

ORCHID BROWN,TRIM23,4#

main58905-10030-J0iZGX10..E; ZGX10..G201910-202212

BLUE,TRIM8#; BLUE,TRIM80

58908ALOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR

main58908-10020iZGX10201910-202212

58910CBOX ASSY, CONSOLE, REAR

main58910-10070-C0iZGX10..D; ZGX10..E; ZGX10..G201910-202212

BLACK,TRIM2#; BLACK,TRIM2#,81; BLACK,TRIM20

main58910-10070-C1iZGX10201806-201910

BLACK,TRIM20

main58910-10070-C2iZGX10..E201910-202212

BLACK/ORCHID BROWN,TRIM23,4#

main58910-10070-C3iZGX10..E; ZGX10..G201910-202212

BLACK/BLUE,TRIM8#; BLACK/BLUE,TRIM80

58910DCLIP(FOR CONSOLE BOX)

main90467-05172×4iZGX10201801-201910

58911APANEL, BOX SIDE, NO.1

main58911-10080-C0iZGX10..D; ZGX10..E; ZGX10..G201910-202212

BLACK,TRIM2#; BLACK,TRIM2#,4#,8#; BLACK,TRIM2#,8#

58912CPANEL, BOX SIDE, NO.2

main58912-10030-C0iZGX10201801-201910

BLACK,TRIM2#

58923APANEL, CONSOLE REAR END

main58923-10030-C1iZGX10201801-201910

BLACK,TRIM2#

58959BCUSHION, CONSOLE COMPARTMENT DOOR

main58959-35010×3iZGX10201801-201910

58985RETAINER, CONSOLE BOX

main58985-10020iZGX10201801-201910

58995ABRACKET, CONSOLE BOX MOUNTING, NO.1

main58995-10070iZGX10201801-201910

9046705172

main90467-05172

9167380616

main91673-80616

9167380816

main91673-80816

9356855014

main93568-55014

24 parts on this diagram · 1 diagram in section
