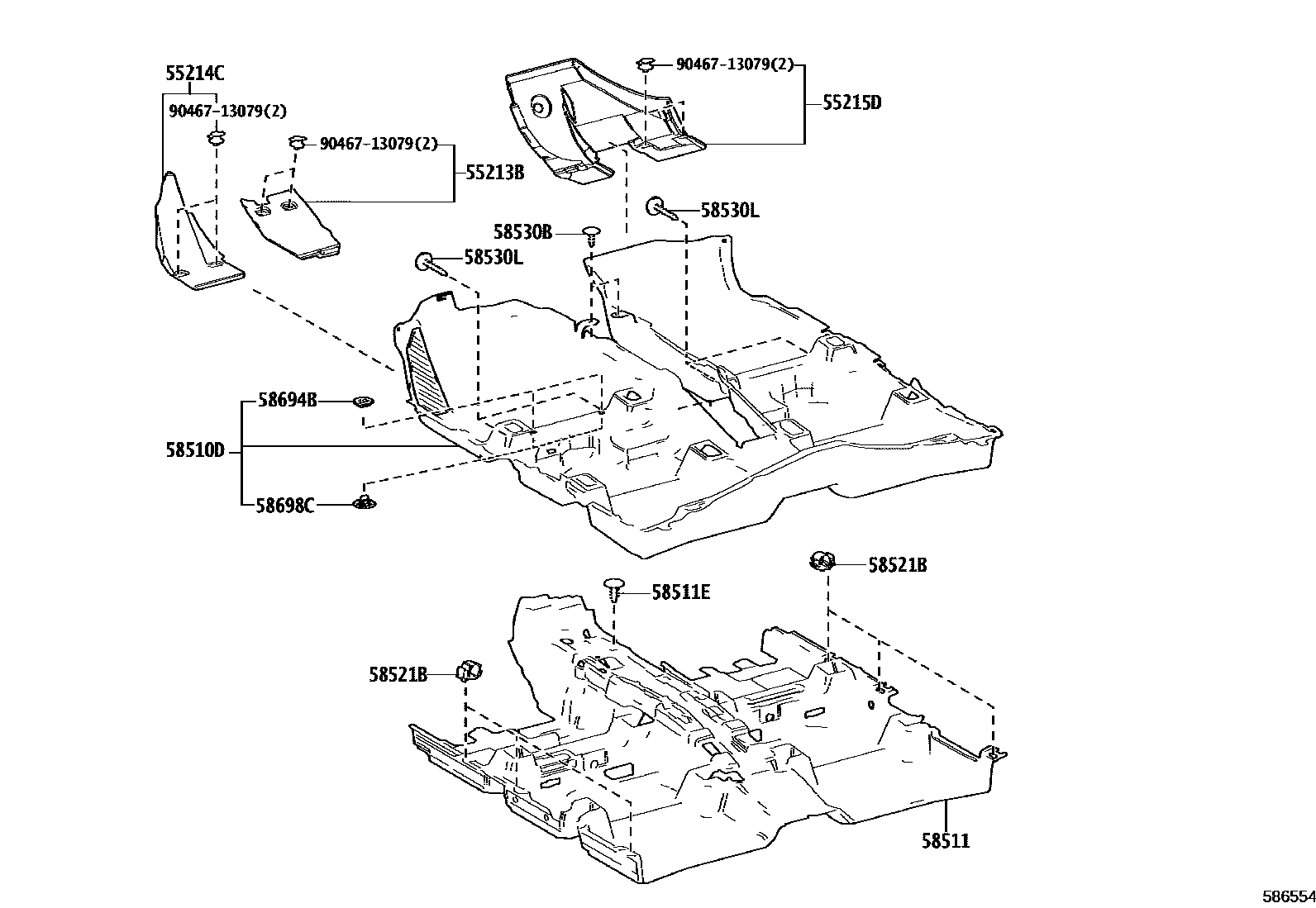

MAT & CARPET

55213BPAD, DASH PANEL INSULATOR, NO.1

main55213-10380iZGX10201910-202212

main55213-F4010iZGX10201801-201910

(L)

55214CPAD, DASH PANEL INSULATOR, NO.2

main55214-10280iZGX10201910-202212

main55214-F4010iZGX10201801-201910

(L)

55215DPAD, DASH PANEL INSULATOR, NO.3

main55215-10160iZGX10201801-201910

(J)

main55215-F4010iZGX10201801-201910

(L)

58510DCARPET ASSY, FLOOR, FRONT

main58510-10A40-C0iZGX10..D,E; ZGX10..G201910-202212

BLACK,TRIM2#; BLACK,TRIM2#,8#

58511MAT, FLOOR, FRONT

main58511-10500iZGX10201801-201910

main58511-10501iZGX10201910-202212

58511ECLIP(FOR FRONT FLOOR MAT)

main90467-07042-C4iZGX10201801-201910

BLACK

58521BHOOK, FLOOR CARPET

main58521-47030×6iZGX10201801-201910

58530BCLIP(FOR FRONT FLOOR CARPET)

main90467-05164-C7×2iZGX10..D; ZGX10..E; ZGX10..G201910-202212

BLACK,TRIM2#; BLACK,TRIM2#,4#,8#; BLACK,TRIM2#,8#

58530LCLIP, FLOOR CARPET, CENTER

main64726-10020-C2×4iZGX10201801-201910

BLACK,TRIM2#

58694BPLATE, MAT SET, UPPER

main58694-78010×2iZGX10201801-201910

58698CPLATE, MAT SET, LOWER

main58698-78010×2iZGX10201801-201910

9046713079

main90467-13079

12 parts on this diagram · 1 diagram in section
