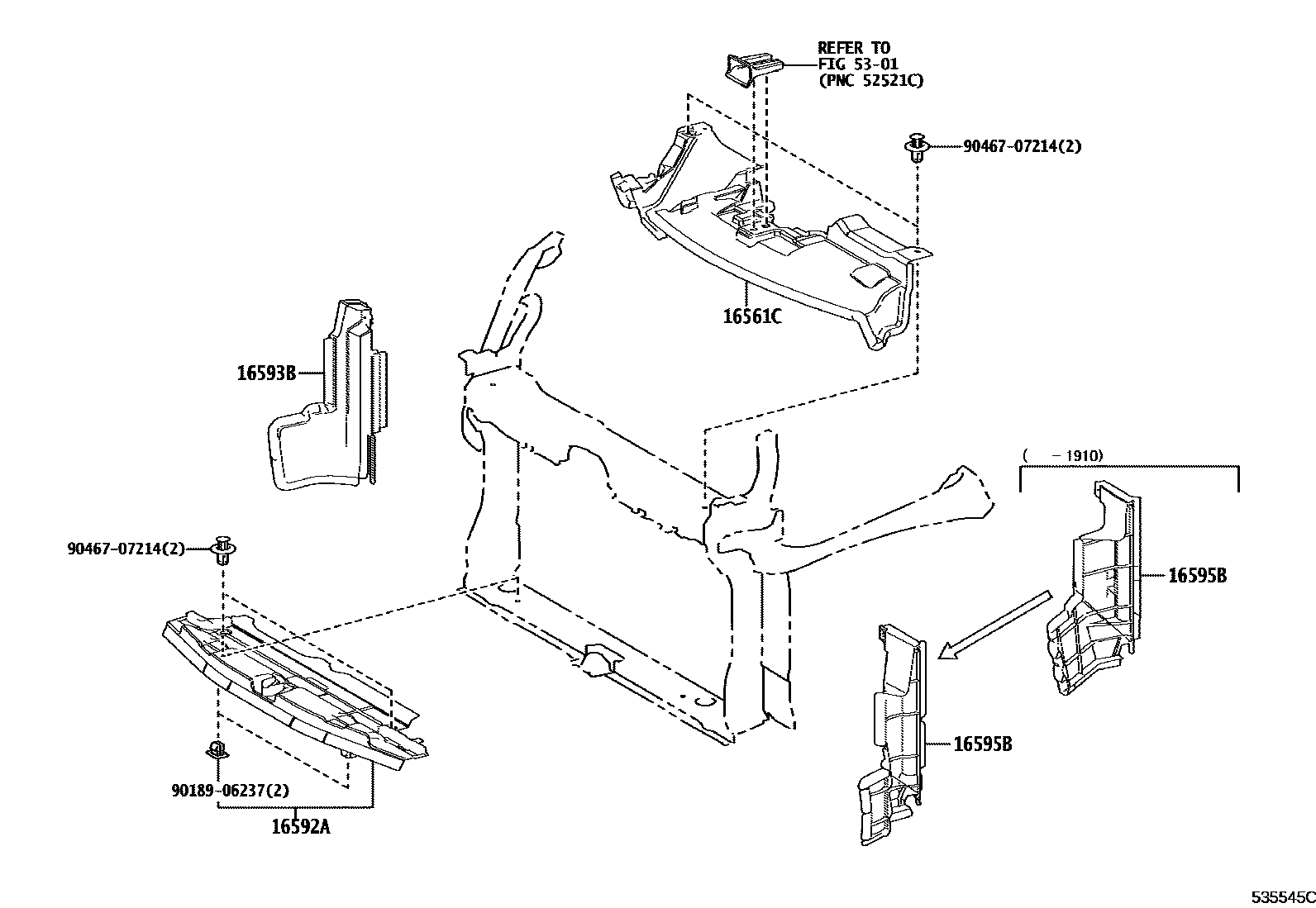

FRONT FENDER APRON & DASH PANEL

0001 1AIR GUIDE 0002 1RADIATOR SUPPORT & FENDER APR0003 1DASH PANEL

16561CSEAL, RADIATOR TO SUPPORT, NO.1

main16561-37110i3ZRFAE..ZGX10201801-201910

main16561-37120i3ZRFAE..ZGX10201910-202212

16592AGUIDE, RADIATOR AIR, NO.3

main16592-37060i3ZRFAE..ZGX10201801-202212

16593BGUIDE, RADIATOR AIR, NO.1 RH

main16593-0T040i3ZRFAE..ZGX10201801-201806

main16593-37180i3ZRFAE..ZGX10201806-201910

main16593-37240i3ZRFAE..ZGX10201910-202212

16595BGUIDE, RADIATOR AIR, NO.1 LH

main16595-37190i3ZRFAE..ZGX10201801-201910

main16595-37220i3ZRFAE..ZGX10201910-202212

5301

9018906237

main90189-06237

9046707214

main90467-07214

7 parts on this diagram · 3 diagrams in section
