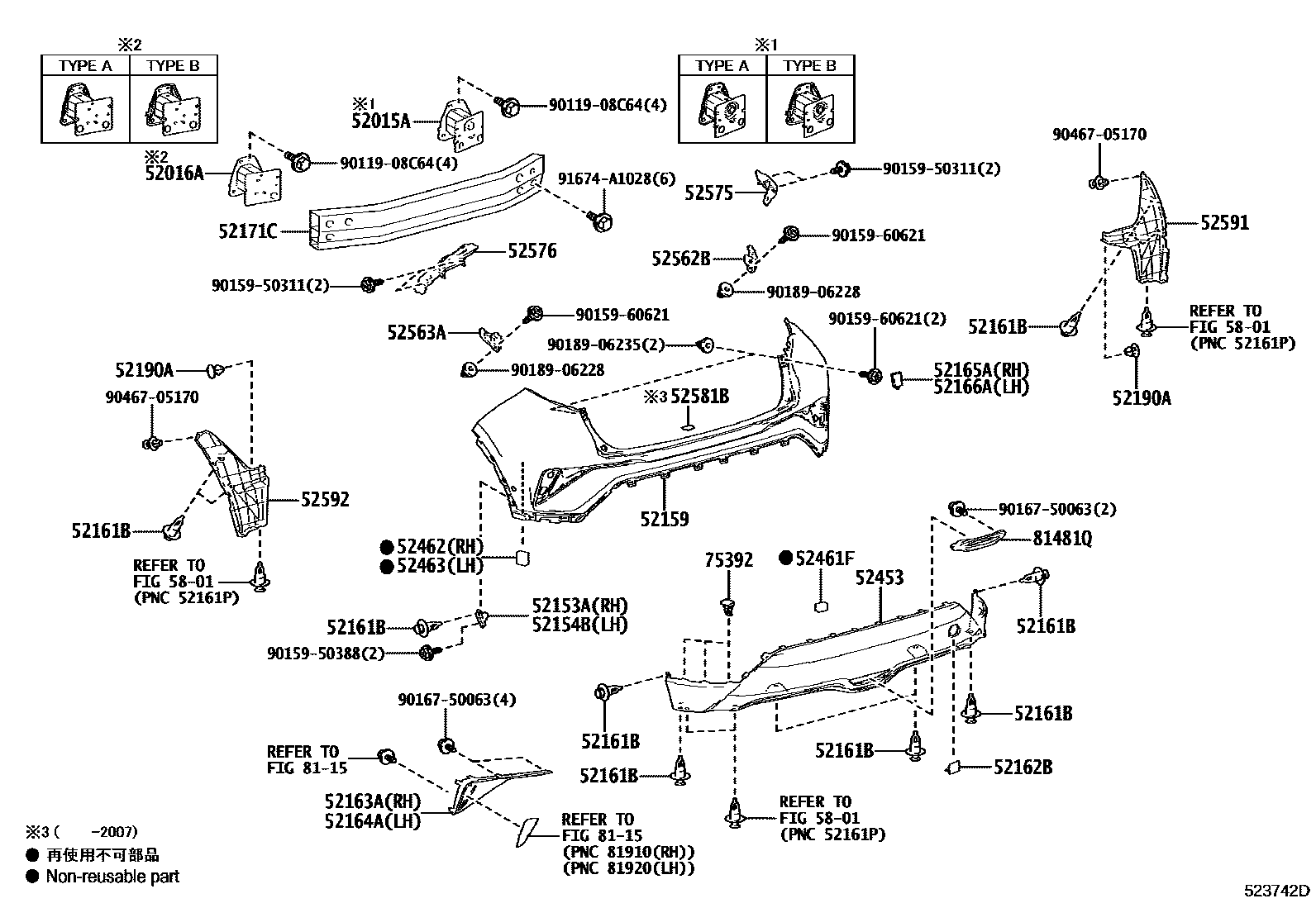

REAR BUMPER & BUMPER STAY
52015AARM SUB-ASSY, REAR BUMPER, RH
TYPE A:REFER ILLUST.
TYPE B:REFER ILLUST.
52016AARM SUB-ASSY, REAR BUMPER, LH
TYPE A:REFER ILLUST.
TYPE B:REFER ILLUST.
52153ASTAY, REAR BUMPER SIDE, RH
52154BSTAY, REAR BUMPER SIDE, LH
52159COVER, REAR BUMPER
52161BPIECE, REAR BUMPER
52162BPLATE, REAR BUMPER, NO.1
52163APLATE, REAR BUMPER, RH
52164APLATE, REAR BUMPER, LH
52165ACOVER, REAR BUMPER, UPR RH
52166ACOVER, REAR BUMPER, UPR LH
52171CREINFORCEMENT, REAR BUMPER
52190ACLIP
BLACK
52453GUARD, REAR BUMPER, CENTER
52461FPAD, REAR BUMPER
52462PAD, REAR BUMPER, RH
52463PAD, REAR BUMPER, LH
52562BRETAINER, REAR BUMPER, UPPER RH
52563ARETAINER, REAR BUMPER, UPPER LH
52575RETAINER, REAR BUMPER SIDE, RH
52576RETAINER, REAR BUMPER SIDE, LH
52581BPROTECTOR, REAR BUMPER
52591SEAL, REAR BUMPER SIDE, RH
52592SEAL, REAR BUMPER SIDE, LH
5801FLOOR PAN & LOWER BACK PANEL
75392RETAINER, OUTSIDE MOULDING
8115REFLEX REFLECTOR
81481QBRACKET, FOG LAMP
9011908C64
main90119-08C64
9015950311
main90159-50311
9015950388
main90159-50388
9015960621
main90159-60621
9016750063
main90167-50063
9018906228
main90189-06228
9018906235
main90189-06235
9046705170
main90467-05170
91674A1028
main91674-A1028
37 parts on this diagram · 1 diagram in section
