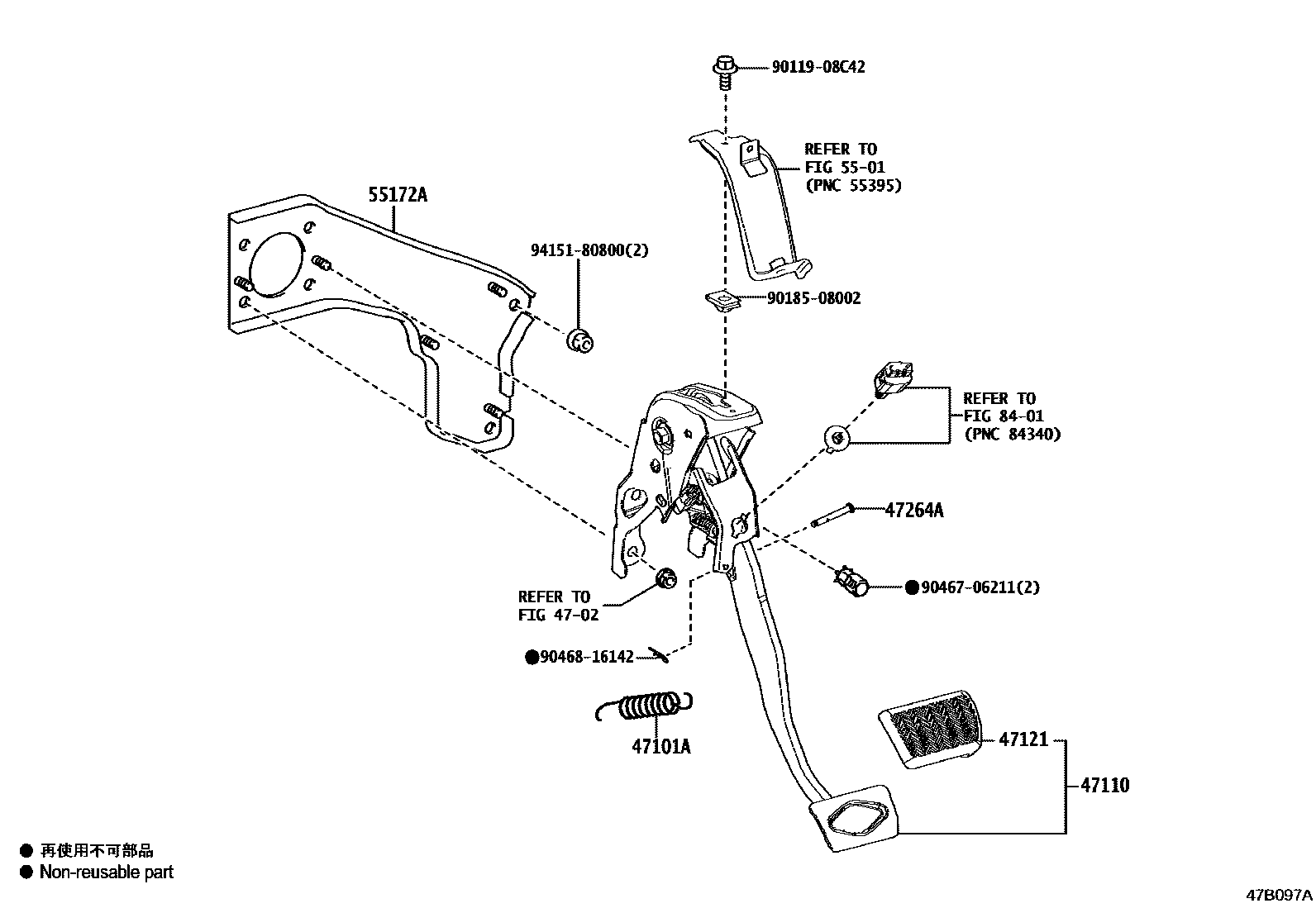

BRAKE PEDAL & BRACKET

4702BRAKE MASTER CYLINDER

→ Go to FIG 47-02

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90507-15010iZGX10201910-202212

47110SUPPORT ASSY, BRAKE PEDAL

main47110-10060iZGX10201801-201805

main47110-10061iZGX10201806-201910

47121PAD, BRAKE PEDAL

main47121-47010iZGX10201910-202212

47264APIN(FOR PUSH ROD)

main90249-06187iZGX10201801-201910

5501INSTRUMENT PANEL & GLOVE COMPARTMENT

→ Go to FIG 55-01

55172ABASE, BRAKE PEDAL SUPPORT

main55172-10050iZGX10201801-201910

(J)

main55172-F4010iZGX10201801-201910

(L)

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9011908C42

main90119-08C42

9018508002

main90185-08002

9046706211

main90467-06211

9046816142

main90468-16142

9415180800

main94151-80800

13 parts on this diagram · 1 diagram in section
