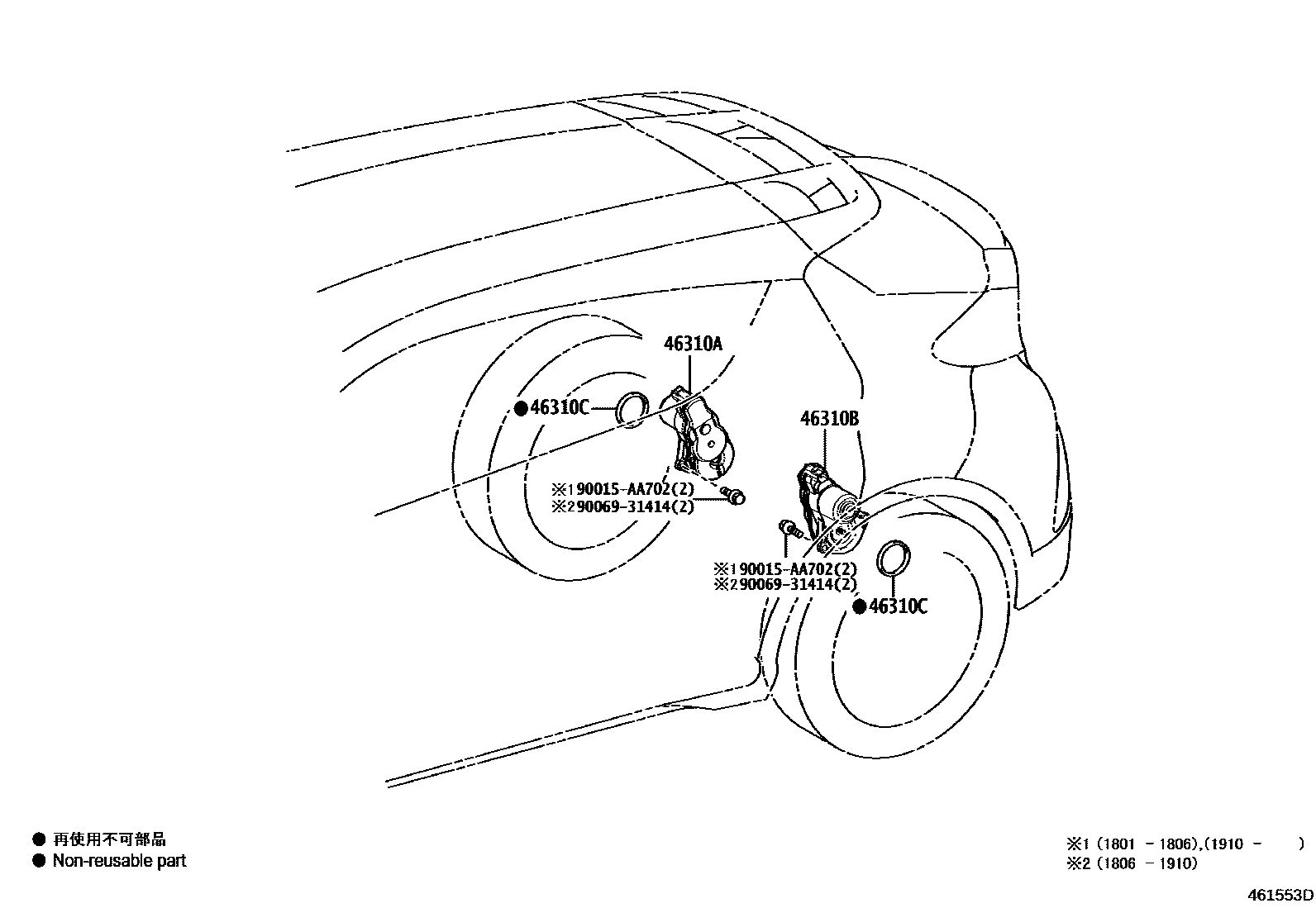

PARKING BRAKE & CABLE

46310AACTUATOR ASSY, PARKING BRAKE, RH

main46310-33010iZGX10201910-202212

main46310-78010iZGX10201801-201806

main46310-F4011iZGX10201806-201910

46310BACTUATOR ASSY, PARKING BRAKE, LH

main46310-33010iZGX10201910-202212

main46310-78010iZGX10201801-201806

main46310-F4011iZGX10201806-201910

46310CSEAL(FOR PARKING BRAKE ACTUATOR)

main90015-AH005×2iZGX10201801-201806

main90069-38055×2iZGX10201806-201910

90015AA702

main90015-AA702

9006931414

main90069-31414

5 parts on this diagram · 1 diagram in section
