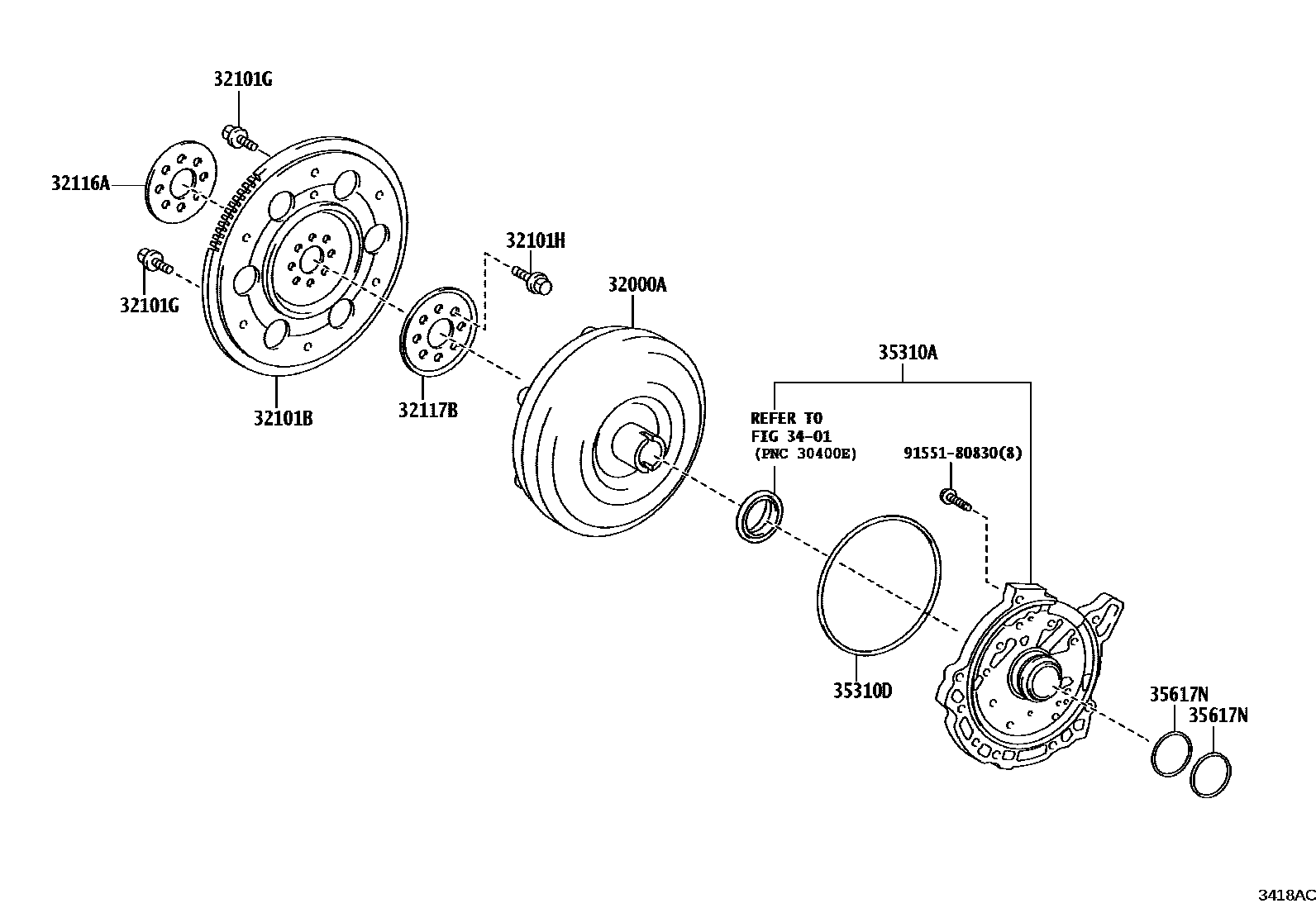

TORQUE CONVERTER, FRONT OIL PUMP(CVT)

32000ACONVERTER ASSY, TORQUE

main32000-28191iZGX10201801-202212

32101BGEAR SUB-ASSY, DRIVE PLATE & RING

main32101-28050iZGX10201801-202212

32101GBOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)

main90109-09001iZGX10201801-202212

*9-1.25PX12.4-7.3,BLACK

main90119-09025iZGX10201801-202212

*9-1.25PX12.4-8.4,SILVER WHITE

32101HBOLT, HEXAGON(FOR DRIVE PLATE SETTING)

main90105-10048iZGX10201801-202212

32116ASPACER, DRIVE PLATE, FRONT

main32116-12030iZGX10201801-202212

32117BSPACER, DRIVE PLATE, REAR

main32117-12040iZGX10201801-202212

3401

35310APUMP ASSY, FRONT OIL

main35310-28040iZGX10201801-201803

sub35310-28041

main35310-28041iZGX10201804-202212

35310DRING, O (FOR FRONT OIL PUMP)

main35697-28010iZGX10201801-202212

35617NRING, CLUTCH DRUM OIL SEAL

main35617-28020iZGX10201801-202212

9155180830

main91551-80830

11 parts on this diagram · 1 diagram in section
