MIRROR
8106SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP
87810MIRROR ASSY, INNER REAR VIEW
EUROPE SPEC(EXCEPT EU); FRENCH GUIANA SPEC; GUADELOUPE SPEC; MARTINIQUE SPEC; REUNION SPEC
LIGHT GRADE
ACTIVE SAFETY PACKAGE- TOYOTA SAFETY SENSE; WIRELESS DOOR LOCK-WITH(SMART ENTRY(*DRP DOOR & BACK DOOR))
main87810-K0060supersedes 87810-0WQ40iMAXH10,ZYX11..N;NGX10..LHD..CVT..N; NGX50..E..EUR;MAXH10,ZYX11..E,G,K;NGX10..LHD..CVT..(E,G,K)202008-202010
WIRELESS DOOR LOCK-WITH(SMART ENTRY(*DRP DOOR & BACK DOOR))
87834COVER, INNER REAR VIEW MIRROR STAY HOLDER
EUROPE SPEC(EXCEPT EU); FRENCH GUIANA SPEC; GUADELOUPE SPEC; MARTINIQUE SPEC; REUNION SPEC
87910MIRROR ASSY, OUTER REAR VIEW, RH
NO PAINT REQ.
main87910-F4020supersedes 87910-F4010iMAXH10,NGX10,50,ZYX1#..LHD..(K,N)..EUR; NGX50..G..EUR;NGX50,ZGX10..E..RUS;MAXH10,NGX10,ZYX1#..LHD..(E,G)..EUR201909
NO PAINT REQ.; NO PAINT REQ.,WIRELESS DOOR LOCK-WITH(SMART ENTRY(*DRP DOOR & BACK DOOR))
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.; NO PAINT REQ.,WIRELESS DOOR LOCK-WITH(SMART ENTRY(*DRP DOOR & BACK DOOR))
main87910-F4030iNGX10,50,ZGX10..E..RUS; NGX10,50,ZGX10..G..RUS; NGX10,50,ZYX10..LHD..(G,N)..EUR; NGX10,50,ZYX10..LHD..E..EUR201610-201802
NO PAINT REQ.,BLIND SPOT MONITOR-WITH; NO PAINT REQ.,RUSSIA SPEC&BLIND SPOT MONITOR-WITH; NO PAINT REQ.,RUSSIA SPEC&WIRELESS DOOR LOCK-WITH(SMART ENTRY(*DRP DOOR & BACK DOOR))&BLIND SPOT MONITOR-WITH; NO PAINT REQ.,UKRAINE SPEC&BLIND SPOT MONITOR-WITH; NO PAINT REQ.,UKRAINE SPEC&WIRELESS DOOR LOCK-WITH(SMART ENTRY(*DRP DOOR & BACK DOOR))&BLIND SPOT MONITOR-WITH; NO PAINT REQ.,WIRELESS DOOR LOCK-WITH(SMART ENTRY(*DRP DOOR & BACK DOOR))&BLIND SPOT MONITOR-WITH
main87910-F4031iNGX10,50,ZGX10..E..RUS; NGX10,50,ZGX10..G..RUS; NGX10,50,ZYX10..LHD..(G,N)..EUR; NGX10,50,ZYX10..LHD..E..EUR201803-201805
NO PAINT REQ.,BLIND SPOT MONITOR-WITH; NO PAINT REQ.,RUSSIA SPEC&BLIND SPOT MONITOR-WITH; NO PAINT REQ.,RUSSIA SPEC&WIRELESS DOOR LOCK-WITH(SMART ENTRY(*DRP DOOR & BACK DOOR))&BLIND SPOT MONITOR-WITH; NO PAINT REQ.,UKRAINE SPEC&BLIND SPOT MONITOR-WITH; NO PAINT REQ.,UKRAINE SPEC&WIRELESS DOOR LOCK-WITH(SMART ENTRY(*DRP DOOR & BACK DOOR))&BLIND SPOT MONITOR-WITH; NO PAINT REQ.,WIRELESS DOOR LOCK-WITH(SMART ENTRY(*DRP DOOR & BACK DOOR))&BLIND SPOT MONITOR-WITH
NO PAINT REQ.,MEXICO SPEC
NO PAINT REQ.,MEXICO SPEC; NO PAINT REQ.,MEXICO SPEC&WIRELESS DOOR LOCK-WITH(SMART ENTRY(*DRP DOOR & BACK DOOR))
NO PAINT REQ.,BLIND SPOT MONITOR-WITH; NO PAINT REQ.,WIRELESS DOOR LOCK-WITH(SMART ENTRY(*DRP DOOR & BACK DOOR))&BLIND SPOT MONITOR-WITH
NO PAINT REQ.,BLIND SPOT MONITOR-WITH; NO PAINT REQ.,WIRELESS DOOR LOCK-WITH(SMART ENTRY(*DRP DOOR & BACK DOOR))&BLIND SPOT MONITOR-WITH
NO PAINT REQ.,BLIND SPOT MONITOR-WITH; NO PAINT REQ.,WIRELESS DOOR LOCK-WITH(SMART ENTRY(*DRP DOOR & BACK DOOR))&BLIND SPOT MONITOR-WITH
87915COVER, OUTER MIRROR, RH
PAINT REQ.
8791ACOVER, OUTER MIRROR, RH NO.2
87931OUTER MIRROR, RH
MEXICO SPEC; MEXICO SPEC&WIRELESS DOOR LOCK-WITH(SMART ENTRY(*DRP DOOR & BACK DOOR))
87939COVER, OUTER MIRROR HOLE, RH
87940MIRROR ASSY, OUTER REAR VIEW, LH
NO PAINT REQ.
main87940-F4020supersedes 87940-F4010iMAXH10,NGX10,50,ZYX1#..LHD..(K,N)..EUR; NGX50..G..EUR;NGX50,ZGX10..E..RUS;MAXH10,NGX10,ZYX1#..LHD..(E,G)..EUR201909
NO PAINT REQ.; NO PAINT REQ.,WIRELESS DOOR LOCK-WITH(SMART ENTRY(*DRP DOOR & BACK DOOR))
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.; NO PAINT REQ.,WIRELESS DOOR LOCK-WITH(SMART ENTRY(*DRP DOOR & BACK DOOR))
main87940-F4030iNGX10,50,ZGX10..E..RUS; NGX10,50,ZGX10..G..RUS; NGX10,50,ZYX10..LHD..(G,N)..EUR; NGX10,50,ZYX10..LHD..E..EUR201610-201802
NO PAINT REQ.,BLIND SPOT MONITOR-WITH; NO PAINT REQ.,RUSSIA SPEC&BLIND SPOT MONITOR-WITH; NO PAINT REQ.,RUSSIA SPEC&WIRELESS DOOR LOCK-WITH(SMART ENTRY(*DRP DOOR & BACK DOOR))&BLIND SPOT MONITOR-WITH; NO PAINT REQ.,UKRAINE SPEC&BLIND SPOT MONITOR-WITH; NO PAINT REQ.,UKRAINE SPEC&WIRELESS DOOR LOCK-WITH(SMART ENTRY(*DRP DOOR & BACK DOOR))&BLIND SPOT MONITOR-WITH; NO PAINT REQ.,WIRELESS DOOR LOCK-WITH(SMART ENTRY(*DRP DOOR & BACK DOOR))&BLIND SPOT MONITOR-WITH
main87940-F4031iNGX10,50,ZGX10..E..RUS; NGX10,50,ZGX10..G..RUS; NGX10,50,ZYX10..LHD..(G,N)..EUR; NGX10,50,ZYX10..LHD..E..EUR201803-201805
NO PAINT REQ.,BLIND SPOT MONITOR-WITH; NO PAINT REQ.,RUSSIA SPEC&BLIND SPOT MONITOR-WITH; NO PAINT REQ.,RUSSIA SPEC&WIRELESS DOOR LOCK-WITH(SMART ENTRY(*DRP DOOR & BACK DOOR))&BLIND SPOT MONITOR-WITH; NO PAINT REQ.,UKRAINE SPEC&BLIND SPOT MONITOR-WITH; NO PAINT REQ.,UKRAINE SPEC&WIRELESS DOOR LOCK-WITH(SMART ENTRY(*DRP DOOR & BACK DOOR))&BLIND SPOT MONITOR-WITH; NO PAINT REQ.,WIRELESS DOOR LOCK-WITH(SMART ENTRY(*DRP DOOR & BACK DOOR))&BLIND SPOT MONITOR-WITH
NO PAINT REQ.,MEXICO SPEC
NO PAINT REQ.,MEXICO SPEC; NO PAINT REQ.,MEXICO SPEC&WIRELESS DOOR LOCK-WITH(SMART ENTRY(*DRP DOOR & BACK DOOR))
main87940-F4090supersedes 87940-F4080iNGX10,50,ZYX10..RHD..(G,N); NGX10,50,ZYX10..RHD..E201610-201802
NO PAINT REQ.,BLIND SPOT MONITOR-WITH; NO PAINT REQ.,WIRELESS DOOR LOCK-WITH(SMART ENTRY(*DRP DOOR & BACK DOOR))&BLIND SPOT MONITOR-WITH
main87940-F4091supersedes 87940-F4080iNGX10,50,ZYX10..RHD..(G,N); NGX10,50,ZYX10..RHD..E201803-201805
NO PAINT REQ.,BLIND SPOT MONITOR-WITH; NO PAINT REQ.,WIRELESS DOOR LOCK-WITH(SMART ENTRY(*DRP DOOR & BACK DOOR))&BLIND SPOT MONITOR-WITH
main87940-F4092supersedes 87940-F4080iNGX10,50,ZYX10..RHD..(G,N); NGX10,50,ZYX10..RHD..E201808-201909
NO PAINT REQ.,BLIND SPOT MONITOR-WITH; NO PAINT REQ.,WIRELESS DOOR LOCK-WITH(SMART ENTRY(*DRP DOOR & BACK DOOR))&BLIND SPOT MONITOR-WITH
87945COVER, OUTER MIRROR, LH
PAINT REQ.
87948COVER, OUTER MIRROR HOLE, LH
8794ACOVER, OUTER MIRROR, LH NO.2
87961MIRROR OUTER, LH
MEXICO SPEC; MEXICO SPEC&WIRELESS DOOR LOCK-WITH(SMART ENTRY(*DRP DOOR & BACK DOOR))
90119W0030
main90119-W0030

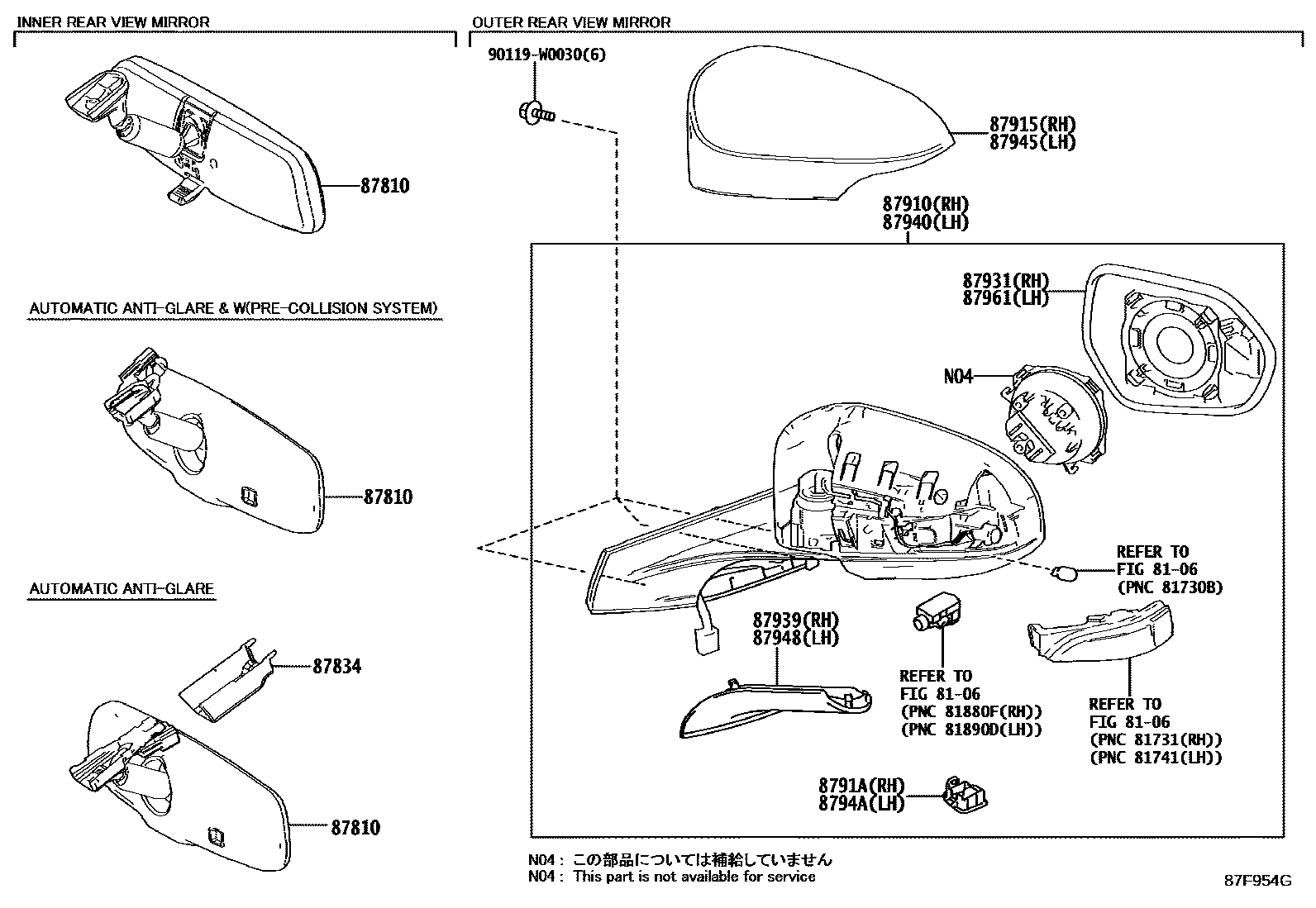

14 parts on this diagram · 1 diagram in section
