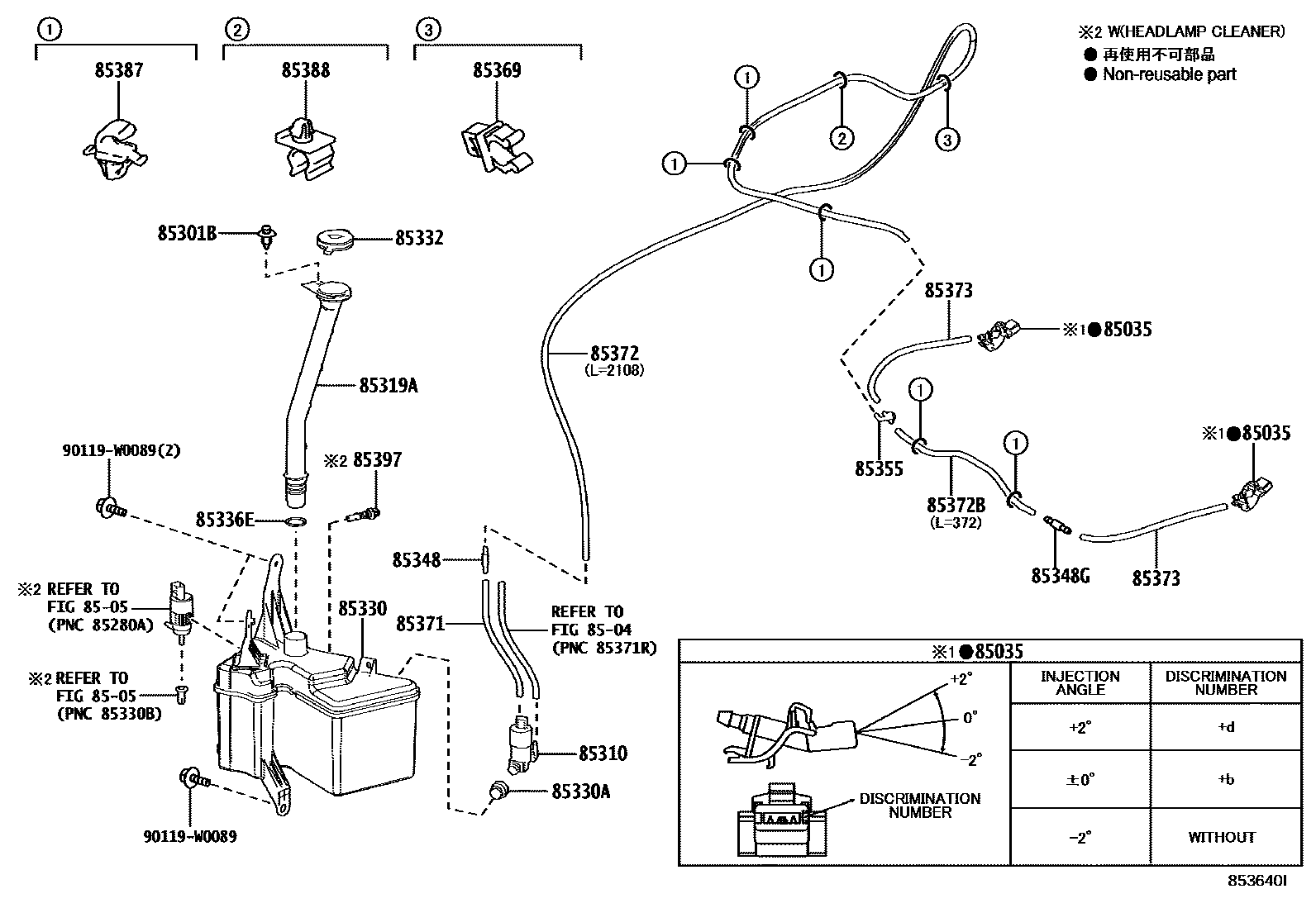

WINDSHIELD WASHER

85035NOZZLE SUB-ASSY, WASHER

main85381-30220iNGX50,ZGX10;MAXH10,NGX10,ZYX1#..EUR201610-202112

ANGLE 0

main85381-30230iNGX50,ZGX10;MAXH10,NGX10,ZYX1#..EUR201610-202112

ANGLE -2

main85381-30240iNGX10,50,ZGX10,ZYX10201610-202112

ANGLE +2

8504REAR WASHER

→ Go to FIG 85-04

8505HEADLAMP CLEANER

→ Go to FIG 85-05

85301BCLIP, WASHER

main90467-07076-C0iNGX10,50,ZGX10,ZYX10201610-201703

BLACK

main90467-07076-C7iNGX10,50,ZGX10,ZYX10201703-202112

BLACK

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-F4010iNGX10,50,ZGX10,ZYX10201610-201701

main85330-F4011iNGX10,50,ZGX10,ZYX10201702-202112

85319AHOSE, INLET

main85319-F4040iNGX50,ZGX10;MAXH10,NGX10,ZYX1#..EUR201610-202112

85330JAR ASSY, WINDSHIELD WASHER

main85315-F4040iNGX10,50,ZYX10..EUR201610-201909

main85355-F4010iNGX10,50,ZGX10..RUS201610-201909

COLD AREA SPEC&HEAD LAMP CLEANER-WITH

main85355-F4010iNGX50,ZGX10..RUS201909

COLD AREA SPEC&HEADLAMP CLEANER-WITH

main85355-F4010iNGX10..RUS201909-202112

85330ABUSH, WINDSHIELD WASHER JAR

main90069-50009iNGX50,ZGX10;MAXH10,NGX10,ZYX1#..EUR201610-202112

85332CAP, WINDSHIELD WASHER JAR

main85316-F4010iNGX10,50,ZGX10,ZYX10201610-202112

85336EPACKING, WINDSHIELD WASHER INLET HOSE

main90069-38045iNGX10,50,ZGX10,ZYX10201610-202112

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85357-0F020iNGX10,50,ZGX10,ZYX10201610-202112

85348GJOINT, WINDSHIELD WASHER HOSE, NO.2

main85357-0F020iNGX50,ZGX10;MAXH10,NGX10,ZYX1#..EUR201610-202112

85355VALVE, WINDSHIELD WASHER HOSE

main85376-0F040iNGX10,50,ZGX10,ZYX10201610-202112

85369CLAMP

main85371-52110iNGX10,50,ZGX10,ZYX10201610-202112

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90069-46076iNGX10,50,ZGX10,ZYX10201610-202112

L=173

main90069-46076iNGX10,50,ZGX10,ZYX10201610-201909

L=173,MEXICO SPEC&WITHOUT(COLD AREA SPEC)

main90069-46076iNGX10,50,ZGX10,ZYX10201610-201909

L=173,COLD AREA SPEC&HEAD LAMP CLEANER-WITH

main90069-46076iNGX50,ZGX10;MAXH10,NGX10,ZYX1#..EUR201909

L=173,COLD AREA SPEC&HEADLAMP CLEANER-WITH

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90069-16010iNGX10,50,ZGX10,ZYX10201610-202112

*318:REFER ILLUST.

85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2

main90069-16009iNGX10,50,ZGX10,ZYX10201610-202112

*318:REFER ILLUST.

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90099-33080iNGX10,50,ZGX10,ZYX10201610-202112

L=1450(*H,L=210)

85387CLAMP NO.1 (FOR WINDSEIELD WASHER)

main85371-12040iNGX10,50,ZGX10,ZYX10201610-202112

85388CLAMP NO.2 (FOR WINDSEIELD WASHER)

main85371-32020iNGX10,50,ZGX10,ZYX10201610-202112

85397SWITCH ASSY,LEVEL WARNING

main85397-F4010iNGX10,50,ZGX10..RUS201610-201909

COLD AREA SPEC&HEAD LAMP CLEANER-WITH

main85397-F4010iNGX10..RUS201909-202112

main85397-F4010iNGX50,ZGX10..RUS201909

COLD AREA SPEC&HEADLAMP CLEANER-WITH

90119W0089

main90119-W0089

22 parts on this diagram · 1 diagram in section
