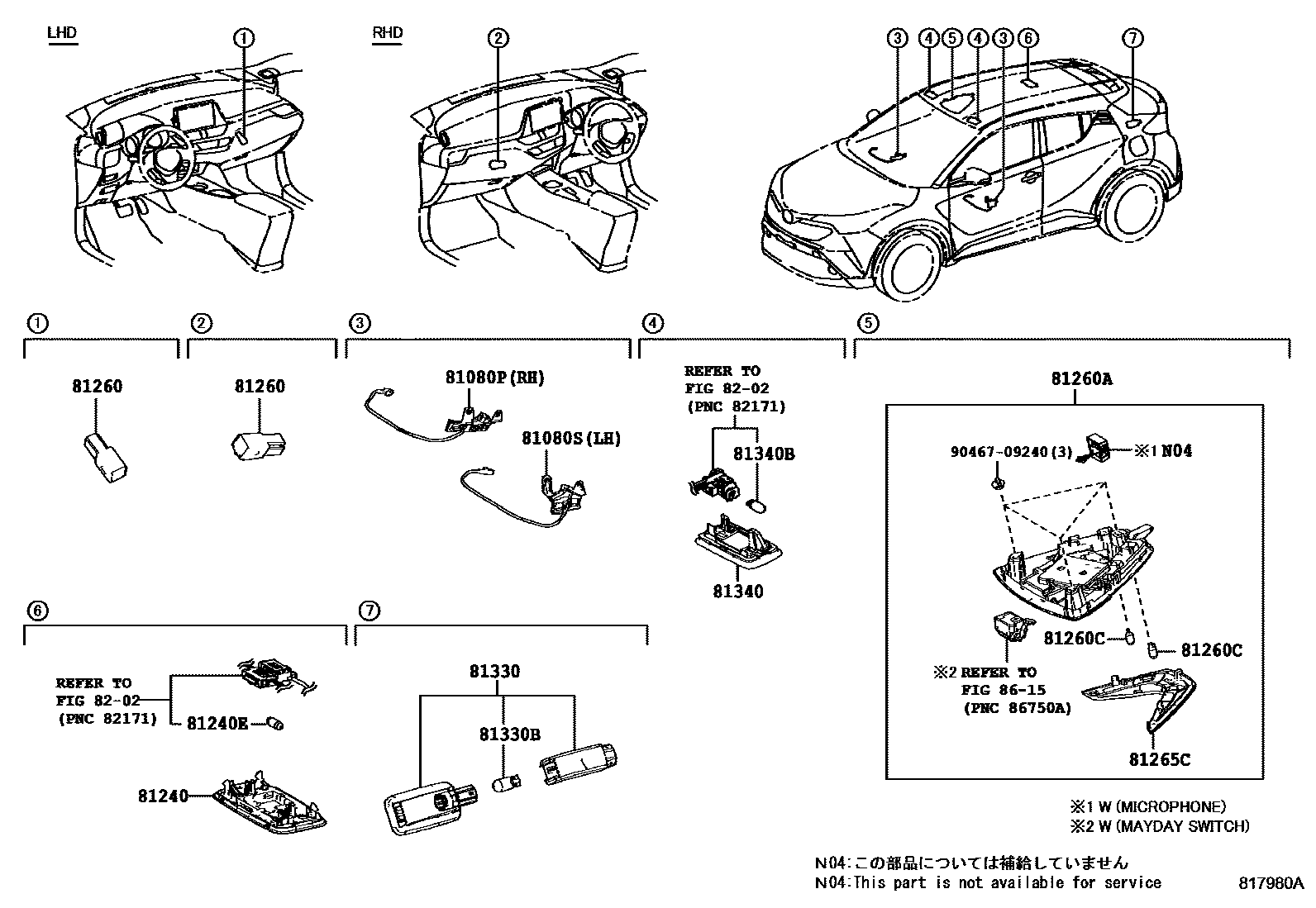

INTERIOR LAMP
81080PLAMP ASSY, INTERIOR ILLUMINATION, NO.1 RH
EU BLACK,TRIM2#
BLACK,TRIM2#,4#,8#
EU BLACK,TRIM2#
main81080-F4020-C1iNGX10..G..EUR;NGX50,ZGX10..G;MAXH10,ZYX11..G,K;ZYX10..LHD..(G,K); NGX10..K..EUR;NGX50,ZGX10..K; ZYX10..RHD..G201909
BLACK,TRIM2#; BLACK,TRIM2#,4#,8#; BLACK,TRIM2#,8#
81080SLAMP ASSY, INTERIOR ILLUMINATION, NO.1 LH
EU BLACK,TRIM2#
BLACK,TRIM2#,4#,8#
EU BLACK,TRIM2#
main81090-F4020-C1iNGX10..G..EUR;NGX50,ZGX10..G;MAXH10,ZYX11..G,K;ZYX10..LHD..(G,K); NGX10..K..EUR;NGX50,ZGX10..K; ZYX10..RHD..G201909
BLACK,TRIM2#; BLACK,TRIM2#,4#,8#; BLACK,TRIM2#,8#
81240LAMP ASSY, ROOM, NO.1
main81240-02080-B0iNGX10..(E,G)..EUR;ZYX10..LHD..(E,G);MAXH10,NGX50,ZGX10,ZYX11..E,G; NGX10..K..EUR;MAXH10,NGX50,ZGX10,ZYX1#..K; NGX10..N..EUR;MAXH10,NGX50,ZGX10,ZYX1#..N; ZYX10..RHD..G201909
LT.GRAY,TRIM21; LT.GRAY,TRIM21,23; LT.GRAY,TRIM21,23,41; LT.GRAY,TRIM21,41
EU BLACK,TRIM2#; LIGHT GRADE,EU BLACK,TRIM2#
main81240-02080-C1iNGX10..(E,G)..EUR;ZYX10..LHD..(E,G);MAXH10,NGX50,ZGX10,ZYX11..E,G; NGX10..K..EUR;MAXH10,NGX50,ZGX10,ZYX1#..K; NGX10..N..EUR;MAXH10,NGX50,ZGX10,ZYX1#..N; ZYX10..RHD..G201909
BLACK,TRIM20; BLACK,TRIM20,22,24,40,8#; BLACK,TRIM20,22,24,8#; BLACK,TRIM20,40,8#
81240EBULB, ROOM LAMP, NO.2
12V 8W; 12V 8W,LIGHT GRADE
81260LAMP ASSY, GLOVE BOX
LIGHT GRADE
81260ALAMP ASSY, MAP
LT.GRAY,TRIM21; LT.GRAY,TRIM21,23,41
main81260-F4040-C1iMAXH10,NGX10,ZYX1#..RHD..(K,N); MAXH10,NGX10,ZYX1#..RHD..G; MAXH10,ZYX11..RHD..E; NGX10..RHD..E201909-202001
BLACK,TRIM20,21; BLACK,TRIM20,22,24,4#; BLACK,TRIM20,22,24,40; BLACK,TRIM20,22,24,8#
LT.GRAY,TRIM21; LT.GRAY,TRIM23,41
BLACK,TRIM2#,8#; BLACK,TRIM20
main81260-F4060-B0iMAXH10,NGX10,50,ZGX10,ZYX1#..LHD..(K,N); NGX10,50..E..RUS;MAXH10,NGX10,ZGX10,ZYX1#..LHD..CVT..E201909-202001
LT.GRAY,TRIM21; LT.GRAY,TRIM23,41
EU BLACK,TRIM2#; LIGHT GRADE,EU BLACK,TRIM2#
main81260-F4060-C1iMAXH10,NGX10,50,ZGX10,ZYX1#..LHD..(K,N); MAXH10,NGX10,50,ZGX10,ZYX1#..LHD..G; NGX10,50..E..RUS;MAXH10,NGX10,ZGX10,ZYX1#..LHD..CVT..E; NGX50..E..EUR;NGX10..LHD..6F..E..EUR201909-202001
BLACK,TRIM2#,4#; BLACK,TRIM2#,8#; BLACK,TRIM20; BLACK,TRIM22,40
main81260-F4061-B0supersedes 81260-F4152-B0iMAXH10,ZYX11..LHD..N;NGX10..LHD..(K,N)..EUR;NGX50,ZGX10,ZYX10..LHD..(K,N); NGX50..E..RUS;NGX10,ZGX10,ZYX10..LHD..CVT..E202002
LT.GRAY,TRIM21; LT.GRAY,TRIM23,41
main81260-F4061-C1supersedes 81260-F4152-C1iMAXH10,ZYX11..LHD..N;NGX10..LHD..(K,N)..EUR;NGX50,ZGX10,ZYX10..LHD..(K,N); NGX10..LHD..G..EUR;NGX50,ZGX10,ZYX10..LHD..G; NGX50..E..EUR;NGX10..LHD..6F..E..EUR; NGX50..E..RUS;NGX10,ZGX10,ZYX10..LHD..CVT..E202002
BLACK,TRIM2#,4#; BLACK,TRIM2#,8#; BLACK,TRIM20; BLACK,TRIM22,40
LT.GRAY,TRIM21
main81260-F4231-C0supersedes 81260-F4270-C0iMAXH10,ZYX11..RHD..E; MAXH10,ZYX11..RHD..G; MAXH10,ZYX11..RHD..K202010-202201
BLACK,TRIM2#,8#; BLACK,TRIM20; BLACK,TRIM22,40
RUSSIA SPEC,EU BLACK,TRIM2#
RUSSIA SPEC,EU BLACK,TRIM2#
RUSSIA SPEC,BLACK,TRIM2#
main81260-F4012-B0iMAXH10,ZYX11..LHD..(G,K); MAXH10,ZYX11..LHD..(G,K,N); MAXH10,ZYX11..LHD..E; NGX10,50,ZGX10..(K,N)..RUS; NGX10,50,ZGX10..E..RUS; NGX10,50,ZGX10..G..RUS201909-202001
ANTENNA-AM & FM & DAB & GPS & TELEPHONE,LT.GRAY,TRIM21; ANTENNA-AM & FM & DAB & GPS & TELEPHONE,LT.GRAY,TRIM21,23,41; ANTENNA-AM & FM & GPS & TELEPHONE,LT.GRAY,TRIM21; ANTENNA-AM & FM & GPS & TELEPHONE,LT.GRAY,TRIM21,23,41; ANTENNA-DIVERSITY & DAB & GPS & TELEPHONE,LT.GRAY,TRIM21; ANTENNA-DIVERSITY & DAB & GPS & TELEPHONE,LT.GRAY,TRIM21,23,41; ANTENNA-DIVERSITY & GPS & TELEPHONE,LT.GRAY,TRIM21; ANTENNA-DIVERSITY & GPS & TELEPHONE,LT.GRAY,TRIM21,23,41; RUSSIA SPEC,LT.GRAY,TRIM21; RUSSIA SPEC,LT.GRAY,TRIM21,23; RUSSIA SPEC,LT.GRAY,TRIM21,23,41
main81260-F4012-C1iMAXH10,ZYX11..LHD..(K,N); MAXH10,ZYX11..LHD..E; MAXH10,ZYX11..LHD..G; MAXH10,ZYX11..LHD..K; NGX10,50,ZGX10..(K,N)..RUS; NGX10,50,ZGX10..E..RUS; NGX10,50,ZGX10..G..RUS201909-202001
ANTENNA-AM & FM & DAB & GPS & TELEPHONE,BLACK,TRIM20,21; ANTENNA-AM & FM & DAB & GPS & TELEPHONE,BLACK,TRIM20,22,24,40; ANTENNA-AM & FM & DAB & GPS & TELEPHONE,BLACK,TRIM20,22,24,8#; ANTENNA-AM & FM & GPS & TELEPHONE,BLACK,TRIM20,21; ANTENNA-AM & FM & GPS & TELEPHONE,BLACK,TRIM20,22,24,40; ANTENNA-AM & FM & GPS & TELEPHONE,BLACK,TRIM20,22,24,8#; ANTENNA-DIVERSITY & DAB & GPS & TELEPHONE,BLACK,TRIM20,21; ANTENNA-DIVERSITY & DAB & GPS & TELEPHONE,BLACK,TRIM20,22,24,40; ANTENNA-DIVERSITY & DAB & GPS & TELEPHONE,BLACK,TRIM20,22,24,8#; ANTENNA-DIVERSITY & GPS & TELEPHONE,BLACK,TRIM20,21; ANTENNA-DIVERSITY & GPS & TELEPHONE,BLACK,TRIM20,22,24,40; ANTENNA-DIVERSITY & GPS & TELEPHONE,BLACK,TRIM20,22,24,8#; RUSSIA SPEC,BLACK,TRIM20,21; RUSSIA SPEC,BLACK,TRIM20,22,24,40; RUSSIA SPEC,BLACK,TRIM20,22,24,8#
ANTENNA-AM & FM & DAB & GPS & TELEPHONE,LT.GRAY,TRIM21; ANTENNA-AM & FM & GPS & TELEPHONE,LT.GRAY,TRIM21; RUSSIA SPEC,LT.GRAY,TRIM21; RUSSIA SPEC,LT.GRAY,TRIM23,41
main81260-F4013-C1supersedes 81260-F4061-C1iMAXH10,ZYX11..LHD..E; MAXH10,ZYX11..LHD..G; MAXH10,ZYX11..LHD..K202002-202201
ANTENNA-AM & FM & DAB & GPS & TELEPHONE,BLACK,TRIM2#,8#; ANTENNA-AM & FM & DAB & GPS & TELEPHONE,BLACK,TRIM20; ANTENNA-AM & FM & DAB & GPS & TELEPHONE,BLACK,TRIM22,40; ANTENNA-AM & FM & GPS & TELEPHONE,BLACK,TRIM2#,8#; ANTENNA-AM & FM & GPS & TELEPHONE,BLACK,TRIM20; ANTENNA-AM & FM & GPS & TELEPHONE,BLACK,TRIM22,40; ANTENNA-DIVERSITY & DAB & GPS & TELEPHONE,BLACK,TRIM2#,8#; ANTENNA-DIVERSITY & DAB & GPS & TELEPHONE,BLACK,TRIM20; ANTENNA-DIVERSITY & DAB & GPS & TELEPHONE,BLACK,TRIM22,40; ANTENNA-DIVERSITY & GPS & TELEPHONE,BLACK,TRIM2#,8#; ANTENNA-DIVERSITY & GPS & TELEPHONE,BLACK,TRIM20; ANTENNA-DIVERSITY & GPS & TELEPHONE,BLACK,TRIM22,40
EU BLACK,TRIM2#; LIGHT GRADE,EU BLACK,TRIM2#; UNITED KINGDOM SPEC&LIGHT GRADE,EU BLACK,TRIM2#
UNITED KINGDOM SPEC,EU BLACK,TRIM2#
main81260-F4070-C1iMAXH10,NGX10,ZYX11..RHD..E; MAXH10,NGX10,ZYX11..RHD..G; NGX10..RHD..6F..N;MAXH10,ZYX11..RHD..N; NGX10..RHD..CVT..N;MAXH10,NGX10,ZYX11..RHD..K201909-202002
ANTI-THEFT SYSTEM-WITH(*IM & SIREN & *INC & *GBS),BLACK,TRIM2#; UNITED KINGDOM SPEC,BLACK,TRIM2#; UNITED KINGDOM SPEC,BLACK,TRIM2#,4#; UNITED KINGDOM SPEC,BLACK,TRIM2#,8#
main81260-F4071-C1iMAXH10,NGX10,ZYX11..RHD..E; MAXH10,NGX10,ZYX11..RHD..G; NGX10..RHD..6F..N;MAXH10,ZYX11..RHD..N; NGX10..RHD..CVT..N;MAXH10,NGX10,ZYX11..RHD..K202003-202010
ANTI-THEFT SYSTEM-WITH(*IM & SIREN & *INC & *GBS),TRIM2#; UNITED KINGDOM SPEC,TRIM2#; UNITED KINGDOM SPEC,TRIM2#,4#; UNITED KINGDOM SPEC,TRIM2#,8#
UNITED KINGDOM SPEC&AUDIO-*DA, FOR EU,BLACK,TRIM2#; UNITED KINGDOM SPEC&AUDIO-*DA, FOR EU,BLACK,TRIM2#,4#; UNITED KINGDOM SPEC&AUDIO-*DA, FOR EU,BLACK,TRIM2#,8#
main81260-F4280-C0supersedes 81260-F4270-C0iMAXH10,ZYX11..RHD..E; MAXH10,ZYX11..RHD..G; MAXH10,ZYX11..RHD..K202201
UNITED KINGDOM SPEC,BLACK,TRIM2#; UNITED KINGDOM SPEC,BLACK,TRIM2#,4#; UNITED KINGDOM SPEC,BLACK,TRIM2#,8#
81260CBULB(FOR MAP LAMP)
12V 5W
81265CLENS, MAP LAMP, NO.1
81330LAMP ASSY, LUGGAGE COMPARTMENT, NO.1
LIGHT GRADE
81330BBULB, LUGGAGE COMPARTMENT LAMP
12V 5W; 12V 5W,LIGHT GRADE
12V 5W; 12V 5W,LIGHT GRADE
81340LAMP ASSY, VANITY
SUN VISOR-WITH(*DRP MIRROR & LAMP)
81340BBULB (FOR VANITY LAMP)
12V 8W; 12V 8W,SUN VISOR-WITH(*DRP MIRROR & LAMP)
8202WIRING & CLAMP
8615TELEPHONE & MAYDAY
9046709240
main90467-09240
15 parts on this diagram · 1 diagram in section
