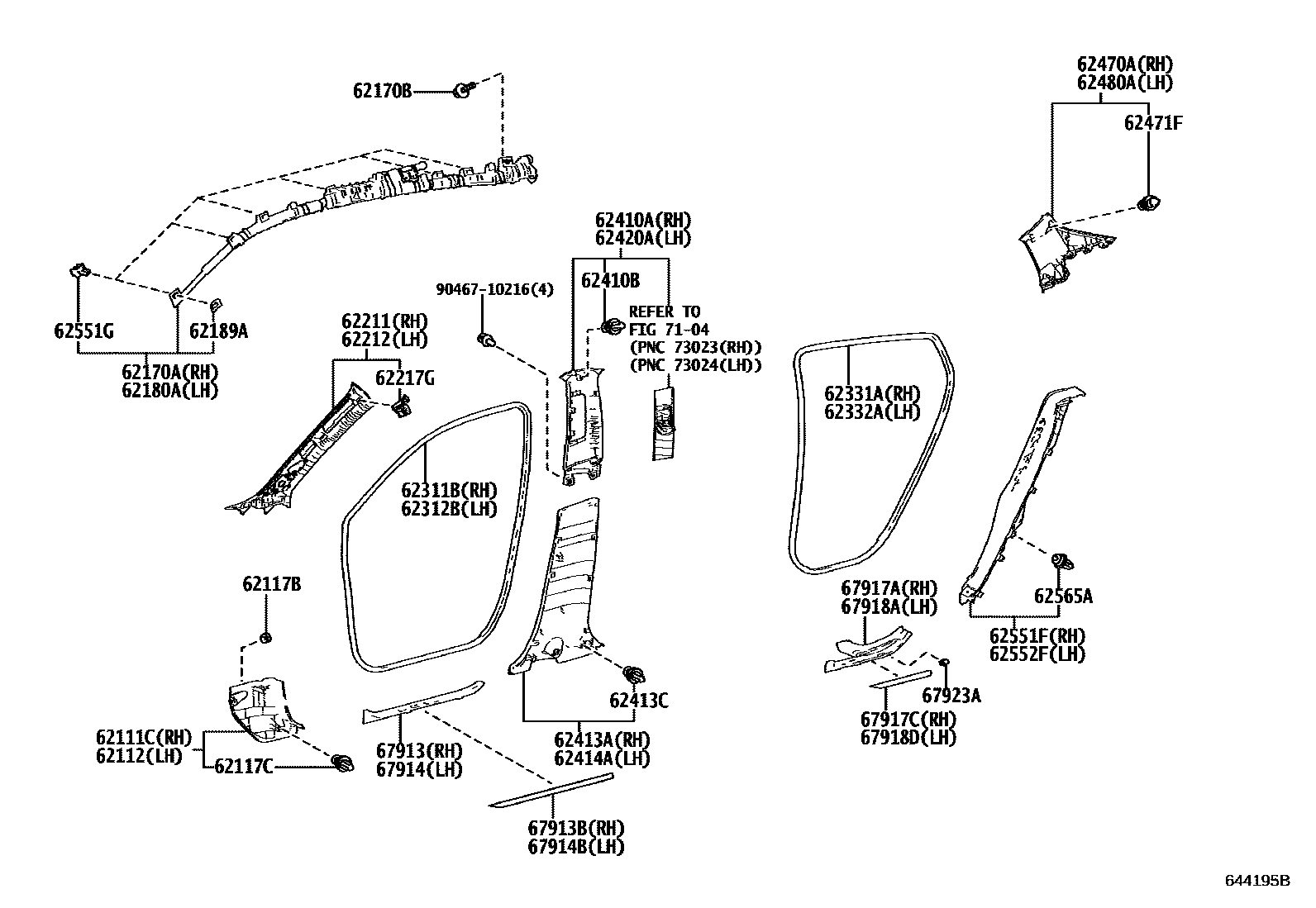

INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING

62111CBOARD, COWL SIDE TRIM, RH

main62111-F4010-C0iNGX10,50,ZGX10,ZYX10201610-201805

EU BLACK,TRIM2#

main62111-F4010-C1iNGX10..N..EUR;MAXH10,NGX50,ZGX10,ZYX1#..N201909-202112

BLACK,TRIM2#,4#,8#

main62111-F4010-C1iNGX10..N..EUR;MAXH10,NGX50,ZGX10,ZYX1#..N201909

BLACK,TRIM2#,8#

main62111-F4010-C1iNGX10..(E,G,K)..EUR;ZYX10..LHD..(E,G,K);MAXH10,NGX50,ZGX10,ZYX11..E,G,K201805-202112

BLACK,TRIM2#

62112BOARD, COWL SIDE TRIM, LH

main62112-F4010-C0iNGX10,50,ZGX10,ZYX10201610-201805

EU BLACK,TRIM2#

main62112-F4010-C1iNGX10..(E,G,K)..RUS201909-202112

BLACK,TRIM2#,4#,8#

main62112-F4010-C1iNGX10,50,ZGX10,ZYX10201805-202112

BLACK,TRIM2#

main62112-F4010-C1iZYX10..RHD..G201909

BLACK,TRIM2#,8#

62117BCLIP, NO.1(FOR COWL SIDE TRIM)

main90467-06147iNGX50,ZGX10;MAXH10,NGX10,ZYX1#..EUR201610-202112

62117CCLIP, NO.2(FOR COWL SIDE TRIM)

main90467-W0005iNGX10..RUS201610-202112

62170AAIRBAG ASSY, CURTAIN SHIELD, RH

main62170-F4010iNGX10..EUR;NGX50,ZYX10;NGX10,ZGX10..(E,G)..RUS201610-201909

MEXICO SPEC

sub62170-F4011

main62170-F4010iNGX10..(E,G,K)..RUS201909-202207

sub62170-F4011

main62170-F4011iZGX10..E,G,K;MAXH10,NGX10,50,ZYX1#..CVT202208

62170BBOLT, W/WASHER

main90119-W0037iNGX10..EUR;NGX50,ZYX10;NGX10,ZGX10..(E,G)..RUS201610-202112

(L)

main90119-W0037iNGX10..EUR;NGX50,ZYX10;NGX10,ZGX10..(E,G)..RUS201610-201909

MEXICO SPEC,(L)

main91673-80616iNGX10..EUR;NGX50,ZYX10;NGX10,ZGX10..(E,G)..RUS201610-201909

MEXICO SPEC,(J)

main91673-80616iNGX10..EUR;NGX50,ZYX10;NGX10,ZGX10..(E,G)..RUS201610-202112

(J)

62180AAIRBAG ASSY, CURTAIN SHIELD, LH

main62180-F4010iNGX10..EUR;NGX50,ZYX10;NGX10,ZGX10..(E,G)..RUS201610-201909

MEXICO SPEC

sub62180-F4011

main62180-F4010iNGX10..(E,G,K)..RUS201909-202207

sub62180-F4011

main62180-F4011iZGX10..E,G,K;MAXH10,NGX10,50,ZYX1#..CVT202208

62189ASPACER, CURTAIN SHIELD AIRBAG CLIP

main62189-42010iNGX10..EUR;NGX50,ZYX10;NGX10,ZGX10..(E,G)..RUS201610-201909

MEXICO SPEC

main62189-42010iNGX10..(E,G,K)..RUS201909-202112

62211GARNISH, FRONT PILLAR, RH

main62210-F4010-B0iNGX10..K..EUR;MAXH10,NGX50,ZGX10,ZYX1#..K201909-202112

LT.GRAY,TRIM21,41

sub62210-F4010

main62210-F4010-B0iZYX10..RHD..G201909

LT.GRAY,TRIM21

sub62210-F4010

main62210-F4010-B0iZYX10..RHD..G201909-202112

LT.GRAY,TRIM21,23,41

sub62210-F4010

main62210-F4010-B0iNGX10..N..EUR;MAXH10,NGX50,ZYX1#..N201909

LT.GRAY,TRIM21,23

sub62210-F4010

main62210-F4010-C0iNGX10..EUR;NGX50,ZYX10;NGX10,ZGX10..(E,G)..RUS201610-201805

MEXICO SPEC&AUDIO-RADIO LESS & 6SPEAKER,EU BLACK,TRIM2#

sub62210-F4010

main62210-F4010-C0iNGX10..EUR;NGX50,ZYX10;NGX10,ZGX10..(E,G)..RUS201610-201805

MEXICO SPEC&AUDIO-CD & 6SPEAKER & USB & *BT,FOR MEXICO,EU BLACK,TRIM2#

sub62210-F4010

main62210-F4010-C0iZGX10..N201610-201805

EU BLACK,TRIM2#

sub62210-F4010

main62210-F4010-C1iNGX10..K..EUR;MAXH10,NGX50,ZGX10,ZYX1#..K201909

BLACK,TRIM20

sub62210-F4010

main62210-F4010-C1iNGX10..EUR;NGX50,ZYX10;NGX10,ZGX10..(E,G)..RUS201805-201909

BLACK,TRIM2#

sub62210-F4010

main62210-F4010-C1iNGX10..EUR;NGX50,ZYX10;NGX10,ZGX10..(E,G)..RUS201805-201909

MEXICO SPEC&AUDIO-RADIO LESS & 6SPEAKER,BLACK,TRIM2#

sub62210-F4010

main62210-F4010-C1iNGX10..EUR;NGX50,ZYX10;NGX10,ZGX10..(E,G)..RUS201805-201909

MEXICO SPEC&AUDIO-CD & 6SPEAKER & USB & *BT,FOR MEXICO,BLACK,TRIM2#

sub62210-F4010

main62210-F4010-C1iNGX10..(E,G)..RUS201909-202112

BLACK,TRIM20,22,24,40,8#

sub62210-F4010

main62210-F4010-C1iNGX10..(E,G)..RUS201909-202112

BLACK,TRIM20,40,8#

sub62210-F4010

main62210-F4010-C1iZYX10..RHD..G201909

BLACK,TRIM20,22,24,8#

sub62210-F4010

main62210-F4030-B0iNGX10..N..RUS201909-202112

LT.GRAY,TRIM21

sub62210-F4030

main62210-F4030-C0iNGX10,ZGX10..(D,N)..RUS201610-201805

EU BLACK,TRIM2#

sub62210-F4030

main62210-F4030-C1iZGX10..N201909-202112

BLACK,TRIM20

sub62210-F4030

main62210-F4030-C1iNGX10,ZGX10..(D,N)..RUS201805-201909

BLACK,TRIM2#

sub62210-F4030

62212GARNISH, FRONT PILLAR, LH

main62220-F4010-B0iZYX10..RHD..G201909

LT.GRAY,TRIM21

sub62220-F4010

main62220-F4010-B0iZYX10..RHD..G201909-202112

LT.GRAY,TRIM21,41

sub62220-F4010

main62220-F4010-B0iZYX10..RHD..G201909-202112

LT.GRAY,TRIM21,23,41

sub62220-F4010

main62220-F4010-B0iNGX10..N..EUR;MAXH10,NGX50,ZYX1#..N201909

LT.GRAY,TRIM21,23

sub62220-F4010

main62220-F4010-C0iZGX10..N201610-201805

EU BLACK,TRIM2#

sub62220-F4010

main62220-F4010-C0iZGX10..N201610-201805

MEXICO SPEC&AUDIO-RADIO LESS & 6SPEAKER,EU BLACK,TRIM2#

sub62220-F4010

main62220-F4010-C0iZGX10..N201610-201805

MEXICO SPEC&AUDIO-CD & 6SPEAKER & USB & *BT,FOR MEXICO,EU BLACK,TRIM2#

sub62220-F4010

main62220-F4010-C1iZYX10..RHD..G201909-202112

BLACK,TRIM20,22,24,40,8#

sub62220-F4010

main62220-F4010-C1iNGX10..EUR;NGX50,ZYX10;NGX10,ZGX10..(E,G)..RUS201805-201909

BLACK,TRIM2#

sub62220-F4010

main62220-F4010-C1iNGX10..EUR;NGX50,ZYX10;NGX10,ZGX10..(E,G)..RUS201805-201909

MEXICO SPEC&AUDIO-RADIO LESS & 6SPEAKER,BLACK,TRIM2#

sub62220-F4010

main62220-F4010-C1iNGX10..EUR;NGX50,ZYX10;NGX10,ZGX10..(E,G)..RUS201805-201909

MEXICO SPEC&AUDIO-CD & 6SPEAKER & USB & *BT,FOR MEXICO,BLACK,TRIM2#

sub62220-F4010

main62220-F4010-C1iNGX10..(E,G)..RUS201909-202112

BLACK,TRIM20,40,8#

sub62220-F4010

main62220-F4010-C1iZYX10..RHD..G201909

BLACK,TRIM20

sub62220-F4010

main62220-F4010-C1iNGX10..N..EUR;MAXH10,NGX50,ZYX1#..N201909

BLACK,TRIM20,22,24,8#

sub62220-F4010

main62220-F4030-B0iZGX10..N201909-202112

LT.GRAY,TRIM21

main62220-F4030-C0iNGX10,ZGX10..(D,N)..RUS201610-201805

EU BLACK,TRIM2#

main62220-F4030-C1iZGX10..N201909-202112

BLACK,TRIM20

main62220-F4030-C1iNGX10,ZGX10..(D,N)..RUS201805-201909

BLACK,TRIM2#

62217GCLIP, FRONT PILLAR GARNISH

main62217-24020iNGX10..RUS201610-202112

62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH

main62311-F4010iNGX50,ZGX10;MAXH10,NGX10,ZYX1#..EUR201610-202112

62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH

main62312-F4010iNGX50,ZGX10;MAXH10,NGX10,ZYX1#..EUR201610-202112

62331AWEATHERSTRIP, REAR DOOR OPENING TRIM, RH

main62331-F4010iNGX10..RUS201610-202112

62332AWEATHERSTRIP, REAR DOOR OPENING TRIM, LH

main62332-F4010iNGX10..RUS201610-202112

62410AGARNISH ASSY, CENTER PILLAR, RH

main62410-F4020-C0iNGX10,50,ZGX10,ZYX10201610-201805

EU BLACK,TRIM2#

sub62410-F4020

main62410-F4020-C1iMAXH10..K,N;NGX10..N..EUR;NGX50,ZGX10,ZYX1#..N201909

BLACK,TRIM2#,8#

sub62410-F4020

main62410-F4020-C1iMAXH10..K,N;NGX10..N..EUR;NGX50,ZGX10,ZYX1#..N201805-202112

BLACK,TRIM2#

sub62410-F4020

main62410-F4020-C1iMAXH10..K,N;NGX10..N..EUR;NGX50,ZGX10,ZYX1#..N201909-202112

BLACK,TRIM2#,4#,8#

sub62410-F4020

62410BCLIP

main90467-10167iNGX50,ZGX10;MAXH10,NGX10,ZYX1#..EUR201610-202112

62413AGARNISH, CENTER PILLAR, LOWER RH

main62413-F4010-C0iNGX10,50,ZGX10,ZYX10201610-201805

EU BLACK,TRIM2#

sub62413-F4010

main62413-F4010-C1iNGX10..N..EUR;MAXH10,NGX50,ZGX10,ZYX1#..N201909-202112

BLACK,TRIM2#,4#,8#

sub62413-F4010

main62413-F4010-C1iNGX10,50,ZGX10,ZYX10201805-202112

BLACK,TRIM2#

sub62413-F4010

main62413-F4010-C1iZYX10..RHD..G201909

BLACK,TRIM2#,8#

sub62413-F4010

main62413-F4070-C0iMAXH10..K201909

BLACK,TRIM2#

main62413-F4070-C0iMAXH10..K201909

BLACK,TRIM2#,4#,8#

62413CCLIP (FOR CENTER LOWER GARNISH)

main90467-W0005iNGX10,50,ZGX10,ZYX10201610-202112

62414AGARNISH, CENTER PILLAR, LOWER LH

main62414-F4010-C0iNGX10,50,ZGX10,ZYX10201610-201805

EU BLACK,TRIM2#

sub62414-F4010

main62414-F4010-C1iNGX10,50,ZGX10,ZYX10201805-202112

BLACK,TRIM2#

sub62414-F4010

main62414-F4010-C1iNGX10..N..RUS201909-202112

BLACK,TRIM2#,4#,8#

sub62414-F4010

main62414-F4010-C1iZYX10..RHD..G201909

BLACK,TRIM2#,8#

sub62414-F4010

main62414-F4070-C0iMAXH10..K201909

BLACK,TRIM2#

main62414-F4070-C0iMAXH10..K201909

BLACK,TRIM2#,4#,8#

62420AGARNISH ASSY, CENTER PILLER, LH

main62420-F4020-C0iNGX10,50,ZGX10,ZYX10201610-201805

EU BLACK,TRIM2#

sub62420-F4020

main62420-F4020-C1iNGX10,50,ZGX10,ZYX10201805-202112

BLACK,TRIM2#

sub62420-F4020

main62420-F4020-C1iNGX10..N..RUS201909-202112

BLACK,TRIM2#,4#,8#

sub62420-F4020

main62420-F4020-C1iZYX10..RHD..G201909

BLACK,TRIM2#,8#

sub62420-F4020

62470AGARNISH ASSY, ROOF SIDE, INNER RH

main62470-F4030-C0iNGX10..EUR;NGX50,ZYX10;NGX10,ZGX10..(E,G)..RUS201610-201805

EU BLACK,TRIM2#

sub62470-F4030

main62470-F4030-C0iNGX10..EUR;NGX50,ZYX10;NGX10,ZGX10..(E,G)..RUS201610-201805

MEXICO SPEC,EU BLACK,TRIM2#

sub62470-F4030

main62470-F4030-C1iNGX10..EUR;NGX50,ZYX10;NGX10,ZGX10..(E,G)..RUS201805-201909

MEXICO SPEC,BLACK,TRIM2#

sub62470-F4030

main62470-F4030-C1iNGX10..EUR;NGX50,ZYX10;NGX10,ZGX10..(E,G)..RUS201805-201909

BLACK,TRIM2#

sub62470-F4030

main62470-F4030-C1iNGX10..(E,G,K)..RUS201909-202112

BLACK,TRIM2#,4#,8#

sub62470-F4030

main62470-F4030-C1iZYX10..RHD..G201909

BLACK,TRIM2#,8#

sub62470-F4030

main62470-F4040-C0iNGX10,ZGX10..(D,N)..RUS201610-201805

EU BLACK,TRIM2#

sub62470-F4040

main62470-F4040-C1iNGX10..N..RUS201805-202112

BLACK,TRIM2#

sub62470-F4040

62471FCLIP (FOR ROOF SIDE, INNER UPPER GARNISH)

main90467-A0033iNGX10,50,ZGX10,ZYX10201610-202112

62480AGARNISH ASSY, ROOF SIDE, INNER LH

main62480-F4030-C0iNGX10..EUR;NGX50,ZYX10;NGX10,ZGX10..(E,G)..RUS201610-201805

EU BLACK,TRIM2#

main62480-F4030-C0iNGX10..EUR;NGX50,ZYX10;NGX10,ZGX10..(E,G)..RUS201610-201805

MEXICO SPEC,EU BLACK,TRIM2#

main62480-F4030-C1iZYX10..RHD..G201805-201909

BLACK,TRIM2#

main62480-F4030-C1iNGX10..EUR;NGX50,ZYX10;NGX10,ZGX10..(E,G)..RUS201805-201909

MEXICO SPEC,BLACK,TRIM2#

main62480-F4030-C1iZYX10..RHD..G201909

BLACK,TRIM2#,8#

main62480-F4030-C1iZYX10..RHD..G201909-202112

BLACK,TRIM2#,4#,8#

main62480-F4040-C0iNGX10,ZGX10..(D,N)..RUS201610-201805

EU BLACK,TRIM2#

sub62480-F4040

main62480-F4040-C1iNGX10..N..RUS201805-202112

BLACK,TRIM2#

sub62480-F4040

62551FGARNISH, REAR SEAT SIDE, RH

main62551-F4010-C0iNGX10,50,ZGX10201610-201805

EU BLACK,TRIM2#

sub62551-F4010

sub62551-F4160

main62551-F4010-C1iNGX10,50,ZGX10201805-201809

BLACK,TRIM2#

sub62551-F4010

sub62551-F4160

main62551-F4040-C0iZYX10201610-201805

EU BLACK,TRIM2#

sub62551-F4040

sub62551-F4120

main62551-F4040-C1iZYX10201805-201809

BLACK,TRIM2#

sub62551-F4040

sub62551-F4120

main62551-F4120-C0iZYX10201809-201909

BLACK,TRIM2#

main62551-F4120-C0iMAXH10,ZYX1#..K,N201909

BLACK,TRIM2#,4#

main62551-F4120-C0iMAXH10,ZYX1#..K,N201909

BLACK,TRIM2#,8#

main62551-F4160-C0iNGX10..(K,N)..RUS201809-202112

BLACK,TRIM2#

main62551-F4160-C0iNGX10..G..EUR;NGX50,ZGX10..G201909-202112

BLACK,TRIM2#,8#

main62551-F4160-C0iNGX10..G..EUR;NGX50,ZGX10..G201909-202112

BLACK,TRIM2#,4#

62551GCLIP

main90467-18017iNGX10..EUR;NGX50,ZYX10;NGX10,ZGX10..(E,G)..RUS201610-201909

MEXICO SPEC

main90467-18017iNGX10..(E,G,K)..RUS201909-202112

62552FGARNISH, REAR SEAT SIDE, LH

main62552-F4010-C0iNGX10,50,ZGX10201610-201805

EU BLACK,TRIM2#

sub62552-F4010

main62552-F4010-C1iNGX10,50,ZGX10201805-202112

BLACK,TRIM2#

sub62552-F4010

main62552-F4010-C1iNGX10..G..RUS201909-202112

BLACK,TRIM2#,8#

sub62552-F4010

main62552-F4010-C1iNGX10..G..RUS201909-202112

BLACK,TRIM2#,4#

sub62552-F4010

main62552-F4030-C0iZYX10201610-201805

EU BLACK,TRIM2#

sub62552-F4030

main62552-F4030-C1iMAXH10,ZYX1#..K,N201909

BLACK,TRIM2#,8#

sub62552-F4030

main62552-F4030-C1iZYX10201805-201909

BLACK,TRIM2#

sub62552-F4030

main62552-F4030-C1iMAXH10,ZYX1#..K,N201909

BLACK,TRIM2#,4#

sub62552-F4030

62565ACLIP (FOR REAR SEAT SIDE GARNISH)

main62217-13010iNGX10,50,ZGX10,ZYX10201610-202112

67913PLATE, FRONT DOOR SCUFF, RH

main67913-F4010-C0iNGX10,50,ZGX10,ZYX10201610-201805

EU BLACK,TRIM2#

sub67913-F4010

main67913-F4010-C1iNGX10,50,ZGX10,ZYX10201805-202112

BLACK,TRIM2#

sub67913-F4010

main67913-F4010-C1iNGX10..N..RUS201909-202112

BLACK,TRIM2#,4#,8#

sub67913-F4010

main67913-F4010-C1iZYX10..RHD..G201909

BLACK,TRIM2#,8#

sub67913-F4010

67913BPLATE, FRONT DOOR SCUFF, RH

67914PLATE, FRONT DOOR SCUFF, LH

main67914-F4010-C0iNGX10,50,ZGX10,ZYX10201610-201805

EU BLACK,TRIM2#

sub67914-F4010

main67914-F4010-C1iNGX10..N..EUR;MAXH10,NGX50,ZGX10,ZYX1#..N201805-202112

BLACK,TRIM2#

sub67914-F4010

main67914-F4010-C1iNGX10..N..RUS201909-202112

BLACK,TRIM2#,4#,8#

sub67914-F4010

main67914-F4010-C1iZYX10..RHD..G201909

BLACK,TRIM2#,8#

sub67914-F4010

67914BPLATE, FRONT DOOR SCUFF, LH

67917APLATE, REAR DOOR SCUFF, RH

main67917-F4010-C0iNGX10,50,ZGX10201610-201805

EU BLACK,TRIM2#

sub67917-F4010

main67917-F4010-C1iNGX10..(E,G,K)..RUS201909-202112

BLACK,TRIM2#,4#,8#

sub67917-F4010

main67917-F4010-C1iNGX10..N..EUR;NGX50,ZGX10..N201805-202112

BLACK,TRIM2#

sub67917-F4010

main67917-F4020-C0iZYX10201610-201805

EU BLACK,TRIM2#

sub67917-F4020

main67917-F4020-C1iZYX10..RHD..G201909

BLACK,TRIM2#,8#

sub67917-F4020

main67917-F4020-C1iZYX10..RHD..G201805-201909

BLACK,TRIM2#

sub67917-F4020

main67917-F4020-C1iZYX10..RHD..G201909

BLACK,TRIM2#,4#,8#

sub67917-F4020

67917CPLATE, REAR DOOR SCUFF, RH

67918APLATE, REAR DOOR SCUFF, LH

main67918-F4010-C0iNGX10,50,ZGX10201610-201805

EU BLACK,TRIM2#

sub67918-F4010

main67918-F4010-C1iNGX10..N..EUR;NGX50,ZGX10..N201909-202112

BLACK,TRIM2#,4#,8#

sub67918-F4010

main67918-F4010-C1iNGX10,50,ZGX10201805-202112

BLACK,TRIM2#

sub67918-F4010

main67918-F4020-C0iZYX10201610-201805

EU BLACK,TRIM2#

sub67918-F4020

main67918-F4020-C1iMAXH10,ZYX11..E,G,K;ZYX10..LHD..(E,G,K)201909

BLACK,TRIM2#,4#,8#

sub67918-F4020

main67918-F4020-C1iZYX10..RHD..G201909

BLACK,TRIM2#,8#

sub67918-F4020

main67918-F4020-C1iZYX10..RHD..G201805-201909

BLACK,TRIM2#

sub67918-F4020

67918DPLATE, REAR DOOR SCUFF, LH

67923ACLAMP, DOOR SCUFF PLATE, NO.1

main67923-30030iNGX10,50,ZGX10,ZYX10201610-202112

7104

9046710216

main90467-10216

39 parts on this diagram · 1 diagram in section
