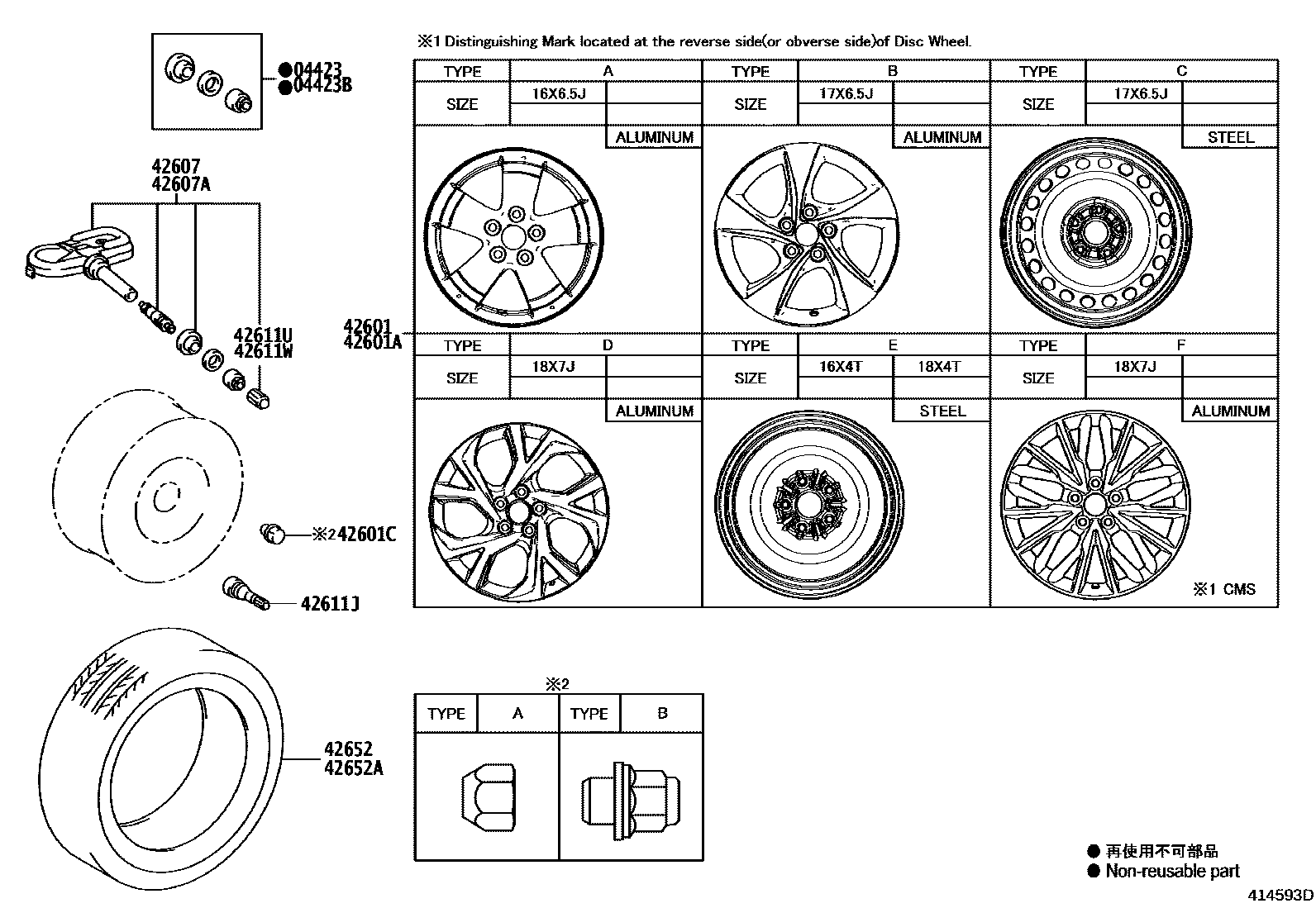

DISC WHEEL & WHEEL CAP
04423FITTING KIT, TIRE PRESSURE MONITOR OR BALANCER VALVE
04423BFITTING KIT, TIRE PRESSURE MONITOR OR BALANCER VALVE(SPARE)
TIRE & DISC WHEEL-215/60R17,ALUMINUM,ACCESSORY,*GEC&SPARE TIRE-GROUND TIRE
42601WHEEL, DISC
17X6.5J,#,TYPE C:REFER ILLUST.
17X6.5J, #,TIRE & DISC WHEEL-215/60R/17 ALUMINUM&SPARE TIRE-GROUND TIRE,TYPE B:REFER ILLUST.
main42611-F4040×4supersedes 42611-F4150iNGX10..RHD..G;ZYX10..LHD..G;NGX10..LHD..6F..G..EUR;MAXH10,NGX50,ZYX11..G..EUR201909-202201
18X7J, #,TIRE & DISC WHEEL-225/50R18,ALUMINUM,BLACK,TYPE D:REFER ILLUST.
17X6.5J, #,TYPE G:REFER ILLUST.
main42611-F4150×4supersedes 42611-F4040iNGX10..RHD..G;ZYX10..LHD..G;NGX10..LHD..6F..G..EUR;MAXH10,NGX50,ZYX11..G..EUR201909
18X7J, #,TIRE & DISC WHEEL-225/50R18,ALUMINUM,GRAY,TYPE H:REFER ILLUST.
18X7J,#,TYPE O:REFER ILLUST.
16X6.5J, #,TIRE & DISC WHEEL-215/65R16 ALUMINUM,TYPE A:REFER ILLUST.
19X7.5J, #,TIRE & DISC WHEEL-225/45R19,FOR GR SPORT,TYPE M:REFER ILLUST.
17X6.5J,#,GR SPORT&TIRE & DISC WHEEL-215/60R17,FOR GR SPORT,TYPE J:REFER ILLUST.
18X7J, #,TIRE & DISC WHEEL-225/50R18 ALUMINUM,TYPE F:REFER ILLUST.
18X7J, #,TIRE & DISC WHEEL-225/50R/18 AL ACC2,TYPE D:REFER ILLUST.
18X7J, #,TIRE & DISC WHEEL-225/50R18,ALUMINUM,ACCESSORY,TYPE N:REFER ILLUST.
17X6.5J, #,TIRE & DISC WHEEL-215/60R17,ALUMINUM,ACCESSORY,TYPE J:REFER ILLUST.
main42611-YYA80×4iNGX50..(G,K)..EUR;NGX10..RHD..(E,G,K);MAXH10,ZYX11..E,G,K;ZYX10..LHD..(E,G,K);NGX10..LHD..6F..(E,G,K)..EUR201909
18X7J, #,TIRE & DISC WHEEL-225/50R18,ALUMI,ACCESSORY(POWDER COAT),TYPE F:REFER ILLUST.
18X7J, #,TIRE & DISC WHEEL- 225/50R/18,ALUMINUM,ACCESSORY3,TYPE L:REFER ILLUST.
42601AWHEEL, DISC (FOR SPARE)
18X4T,TYPE E:REFER ILLUST.
18X4T,TYPE K:REFER ILLUST.
16X4T,SPARE TIRE-TEMPORARY(T145/90D16),TYPE E:REFER ILLUST.
17X6.5J,#,TIRE & DISC WHEEL-215/60R17,STEEL,GENERAL COUNTRIES&SPARE TIRE-GROUND TIRE,TYPE C:REFER ILLUST.
17X6.5J, #,TIRE & DISC WHEEL-215/60R/17 ALUMINUM GENERAL COUNTRIES&SPARE TIRE-GROUND TIRE,TYPE B:REFER ILLUST.
17X6.5J, #,TIRE & DISC WHEEL-215/60R17,ALUMINUM,GENERAL COUNTRIES&SPARE TIRE-GROUND TIRE,TYPE G:REFER ILLUST.
16X4T,HONG KONG, MACAU SPEC&SPARE TIRE-TEMPORARY(T145/90D16),TYPE K:REFER ILLUST.
42601CNUT, HUB (FOR AXLE)
TYPE A:REFER ILLUST.
TIRE & DISC WHEEL-215/60R/17 ALUMINUM GENERAL COUNTRIES,TYPE B:REFER ILLUST.
42607VALVE SUB-ASSY, TIRE PRESSURE MONITOR
TAIWAN SPEC&SPARE TIRE-WITHOUT(REPAIR KIT ONLY)
42607AVALVE SUB-ASSY, TIRE PRESSURE MONITOR (FOR SPARE)
MEXICO SPEC&SPARE TIRE-GROUND TIRE
UKRAINE SPEC&TIRE & DISC WHEEL-215/60R17,FOR GR SPORT&SPARE TIRE-GROUND TIRE
42611JVALVE (FOR TUBELESS TIRE SPARE)
42611UCAP, TIRE VALVE
42611WCAP, TIRE VALVE (FOR SPARE)
TIRE & DISC WHEEL-215/60R/17 ALUMINUM GENERAL COUNTRIES&SPARE TIRE-GROUND TIRE
42652TIRE
215/60R17,MICHELIN
215/60R17
215/60R17,*D/L
215/60R17,*D/L
42652ATIRE (FOR SPARE)
215/60R17,MICHELIN,SPARE TIRE-GROUND TIRE
215/60R17,SPARE TIRE-GROUND TIRE
215/60R17,*D/L,MEXICO SPEC&SPARE TIRE-GROUND TIRE
215/60R17,*D/L,MEXICO SPEC&SPARE TIRE-GROUND TIRE
T145/90D16,GOODYEAR,SPARE TIRE-TEMPORARY(T145/90D16)
12 parts on this diagram · 4 diagrams in section
