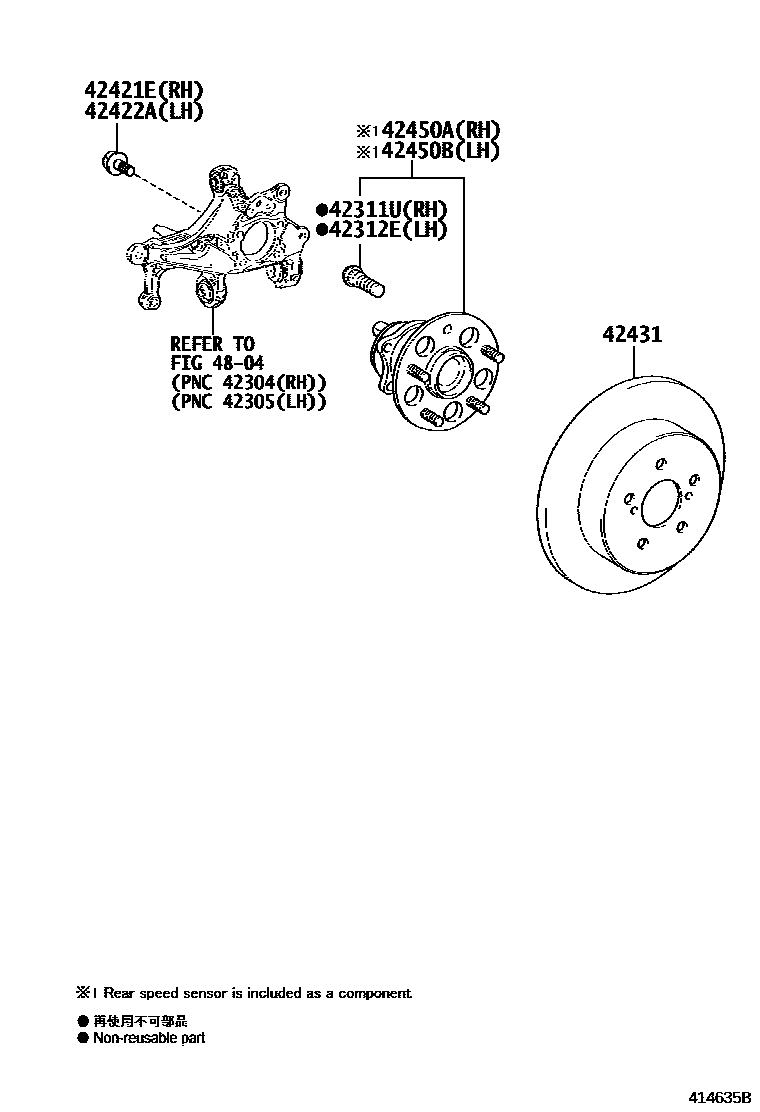

REAR AXLE SHAFT & HUB

0001 1 0002 1 0003 1

42311UBOLT, HUB(FOR REAR AXLE RH)

main90942-02082iNGX10,50,ZGX10,ZYX10201610-202112

42312EBOLT, HUB(FOR REAR AXLE LH)

main90942-02082iNGX10,50,ZGX10,ZYX10201610-202112

42421EBOLT (FOR REAR AXLE BEARING CASE RH)

main90105-12350iNGX10,50,ZGX10,ZYX10201610-202112

(J)

main90105-W0164iNGX10,50,ZGX10,ZYX10201610-202112

(L)

42422ABOLT (FOR REAR AXLE BEARING CASE LH)

main90105-12350iNGX10..RUS201610-202112

(J)

main90105-W0164iNGX50,ZGX10;MAXH10,NGX10,ZYX1#..EUR201610-202112

(L)

42431DISC, REAR

main42431-78010iNGX10,50,ZGX10,ZYX10201610-201805

main42431-F4020iNGX10,50,ZGX10,ZYX10201805-202112

42450AHUB & BEARING ASSY, REAR AXLE, RH

main42450-02270iNGX10,ZGX10,ZYX10201810-202112

main42450-F4010iNGX10,ZGX10,ZYX10201610-201809

42450BHUB & BEARING ASSY, REAR AXLE, LH

main42450-02270iZGX10;MAXH10,NGX10,ZYX1#..EUR201810-202112

main42450-F4010iNGX10,ZGX10,ZYX10201610-201810

4804REAR SPRING & SHOCK ABSORBER

→ Go to FIG 48-04

8 parts on this diagram · 3 diagrams in section
