TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (MTM)

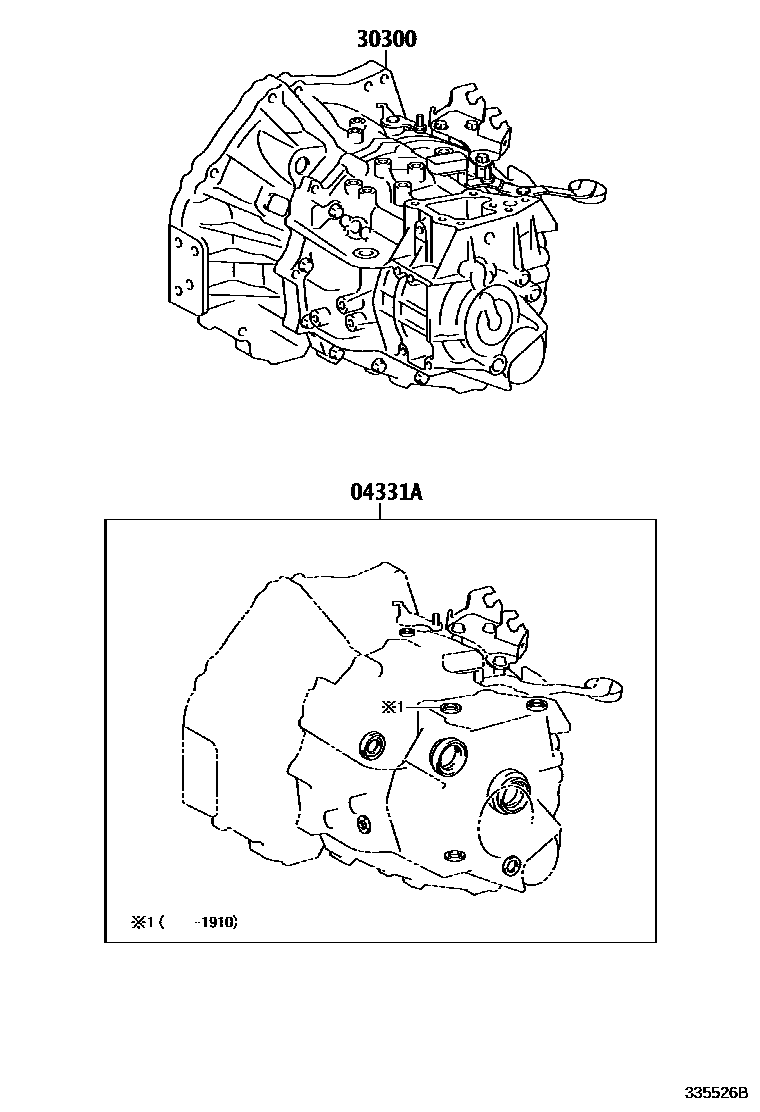

Parts diagram
04331AGASKET KIT, TRANSAXLE OVERHAUL(MTM)
main04331-0F010i201610-201612
main04331-0F011i201612-201909
main04331-0F020i201910-202112
30300TRANSAXLE ASSY, MANUAL
main30300-F4010i201610-201909
EC6A
sub35150-44010
main30300-F4012i201910-202112
EC6A
main30300-F4020i201610-201909
EC6A,ECO PACKAGE
sub30300-F4022
sub35150-44010

2 parts on this diagram · 1 diagram in section
