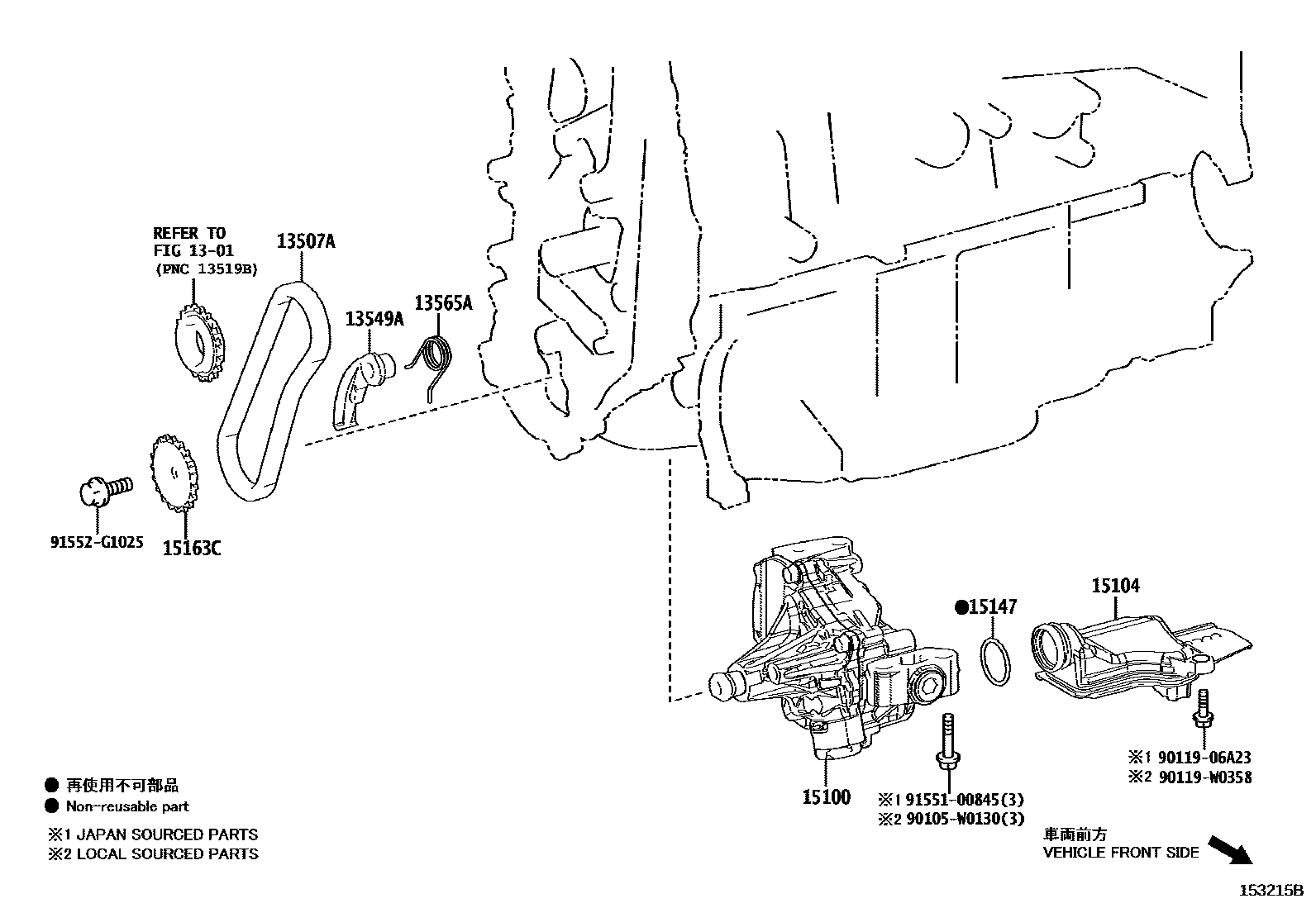

ENGINE OIL PUMP

0001 1 0002 1 0003 1 0004 1

1301CRANKSHAFT & PISTON

→ Go to FIG 13-01

13507ACHAIN SUB-ASSY, OIL PUMP DRIVE

main13507-24020iM20AFXS..MAXH10201909-202304

*132

main13507-F2030iM20AFXS..MAXH10201909

*613

13549APLATE, CHAIN TENSIONER

main13549-25020iM20AFXS..MAXH10201909-202304

*132

13565ASPRING, CHAIN DAMPER

main13565-25010iM20AFXS..MAXH10201909-202304

*132

15100PUMP ASSY, OIL

main15100-0T100i2ZRFXE..ZYX1#201909-202204

(L)

main15100-0T160i2ZRFXE..ZYX1#202205

(L)

main15100-24020iM20AFXS..MAXH10201909-202304

*132

main15100-37021i3ZRFAE..ZGX10201610-201909

main15100-37060i2ZRFXE..ZYX1#201909-202107

(J)

main15100-37070i2ZRFXE..ZYX1#202108

(J)

main15100-47050i8NRFTS..NGX10..RUS201909-202112

15104STRAINER SUB-ASSY, OIL

main15104-24010iM20AFXS..MAXH10201909

*613

15147GASKET, OIL STRAINER

main15147-25010iM20AFXS..MAXH10201909

*613

15163GEAR, OIL PUMP DRIVE SHAFT

main15163-0H010i2ZRFXE..ZYX10201610-201909

(L)

main15163-0T030i2ZRFXE..ZYX1#202301

(L)

main15163-28010i2ZRFXE..ZYX10; 3ZRFAE..ZGX10201610-201909

(J)

main15163-33010i8NRFTS..NGX10..RUS201909-202112

15163CSPROCKET, OIL PUMP DRIVE SHAFT

main15163-25010iM20AFXS..MAXH10201909-202301

*613

main15163-F2040iM20AFXS..MAXH10202301

(L),*613

90105W0130

main90105-W0130

9011906A23

main90119-06A23

90119W0358

main90119-W0358

9155100845

main91551-00845

91552G1025

main91552-G1025

14 parts on this diagram · 4 diagrams in section
