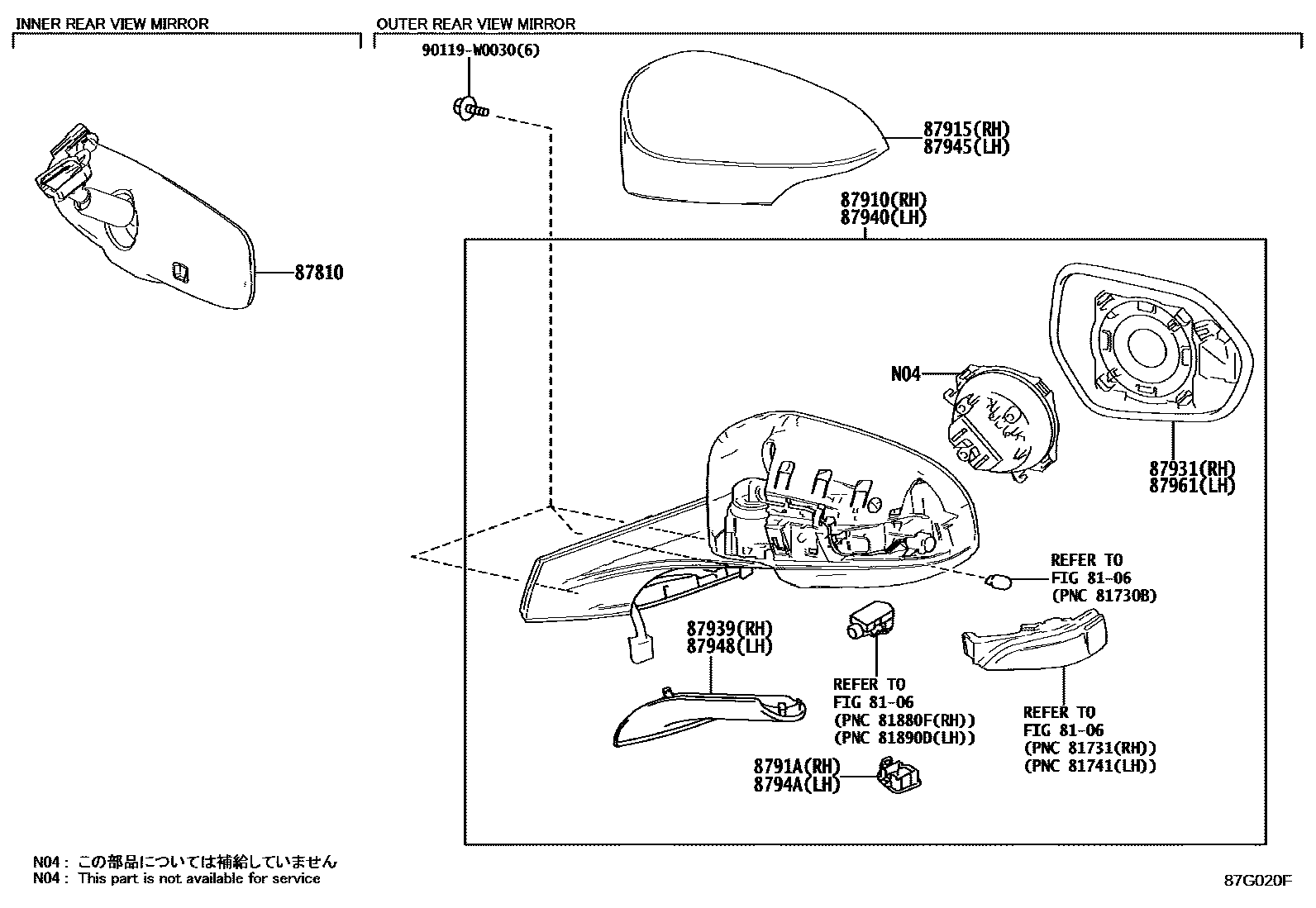

MIRROR
8106SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP
87810MIRROR ASSY, INNER REAR VIEW
87910MIRROR ASSY, OUTER REAR VIEW, RH
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.,WIRELESS DOOR LOCK-WITH(SMART ENTRY(*DRP DOOR & BACK DOOR))
NO PAINT REQ.,WIRELESS DOOR LOCK-WITH(SMART ENTRY(*DRP DOOR & BACK DOOR))&BLIND SPOT MONITOR-WITH
NO PAINT REQ.,LIMITED PACKAGE&BLIND SPOT MONITOR-WITH; NO PAINT REQ.,XLE PREMIUM PACKAGE&BLIND SPOT MONITOR-WITH
87915COVER, OUTER MIRROR, RH
PAINT REQ.
8791ACOVER, OUTER MIRROR, RH NO.2
87939COVER, OUTER MIRROR HOLE, RH
87940MIRROR ASSY, OUTER REAR VIEW, LH
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.,WIRELESS DOOR LOCK-WITH(SMART ENTRY(*DRP DOOR & BACK DOOR))
NO PAINT REQ.,WIRELESS DOOR LOCK-WITH(SMART ENTRY(*DRP DOOR & BACK DOOR))&BLIND SPOT MONITOR-WITH
NO PAINT REQ.,WIRELESS DOOR LOCK-WITH(SMART ENTRY(*DRP DOOR & BACK DOOR))&BLIND SPOT MONITOR-WITH
87945COVER, OUTER MIRROR, LH
PAINT REQ.
87948COVER, OUTER MIRROR HOLE, LH
8794ACOVER, OUTER MIRROR, LH NO.2
90119W0030
main90119-W0030
13 parts on this diagram · 1 diagram in section
