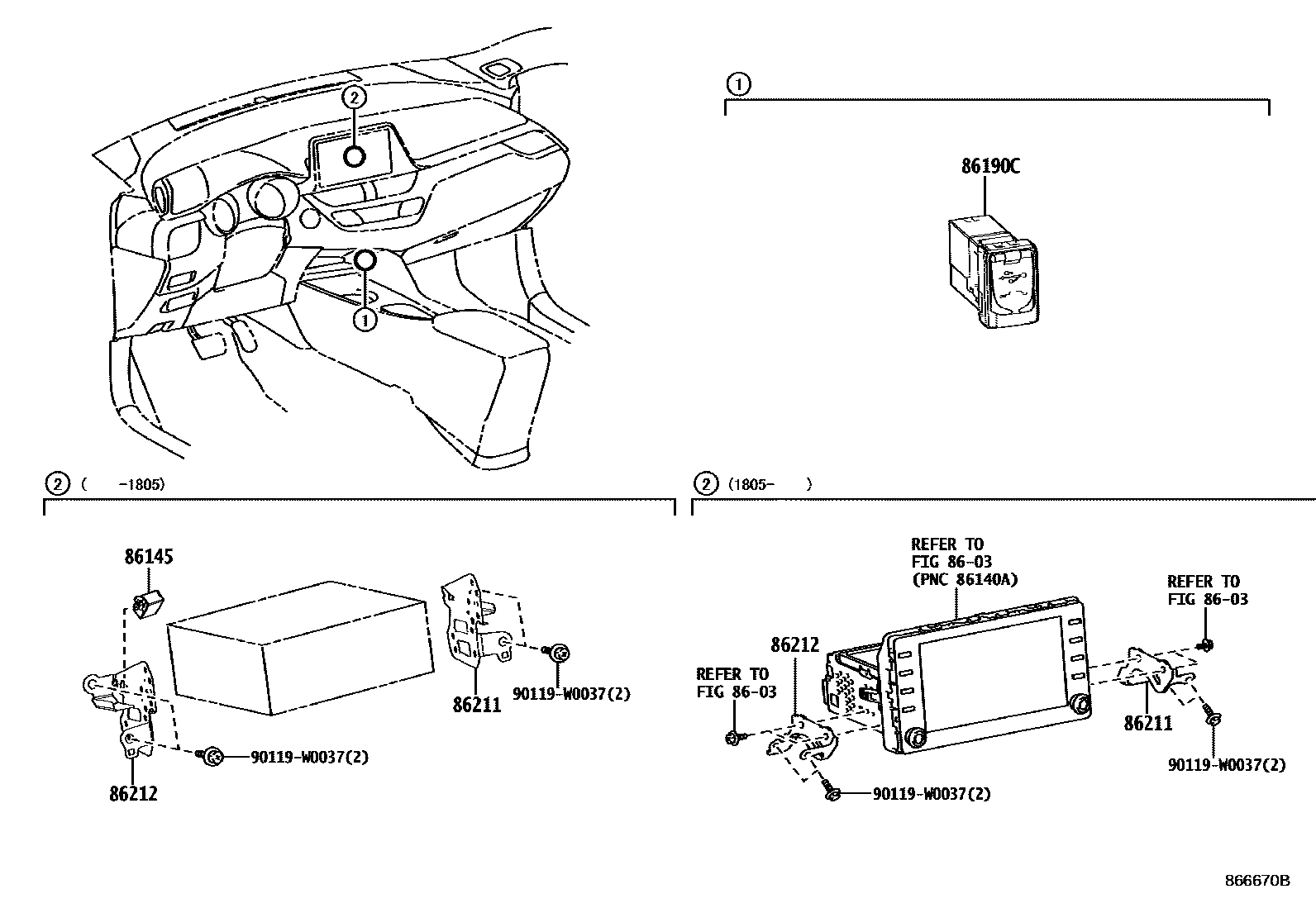

Toyota C-HR (TUP)528 — RADIO RECEIVER & AMPLIFIER & CONDENSER

8603NAVIGATION & FRONT MONITOR DISPLAY

→ Go to FIG 86-03

86145CONNECTOR, ANTENNA MALE

86145-52010

86190CADAPTER ASSY, STEREO JACK, NO.1

86211BRACKET, RADIO, NO.1

86211-F4010

86211-F4090

86212BRACKET, RADIO, NO.2

86212-F4010

86212-F4090

90119W0037

90119-W0037

6 parts on this diagram · 2 diagrams in section

RADIO RECEIVER & AMPLIFIER & CONDENSER for Toyota C-HR (TUP)528

This section contains 8 genuine Toyota parts for the RADIO RECEIVER & AMPLIFIER & CONDENSER system of the Toyota C-HR (TUP)528. Key components include: CONDENSER, RADIO SETTING, NAVIGATION & FRONT MONITOR DISPLAY, CONNECTOR, ANTENNA MALE, ADAPTER ASSY, STEREO JACK, NO.1, BRACKET, RADIO, NO.1.
