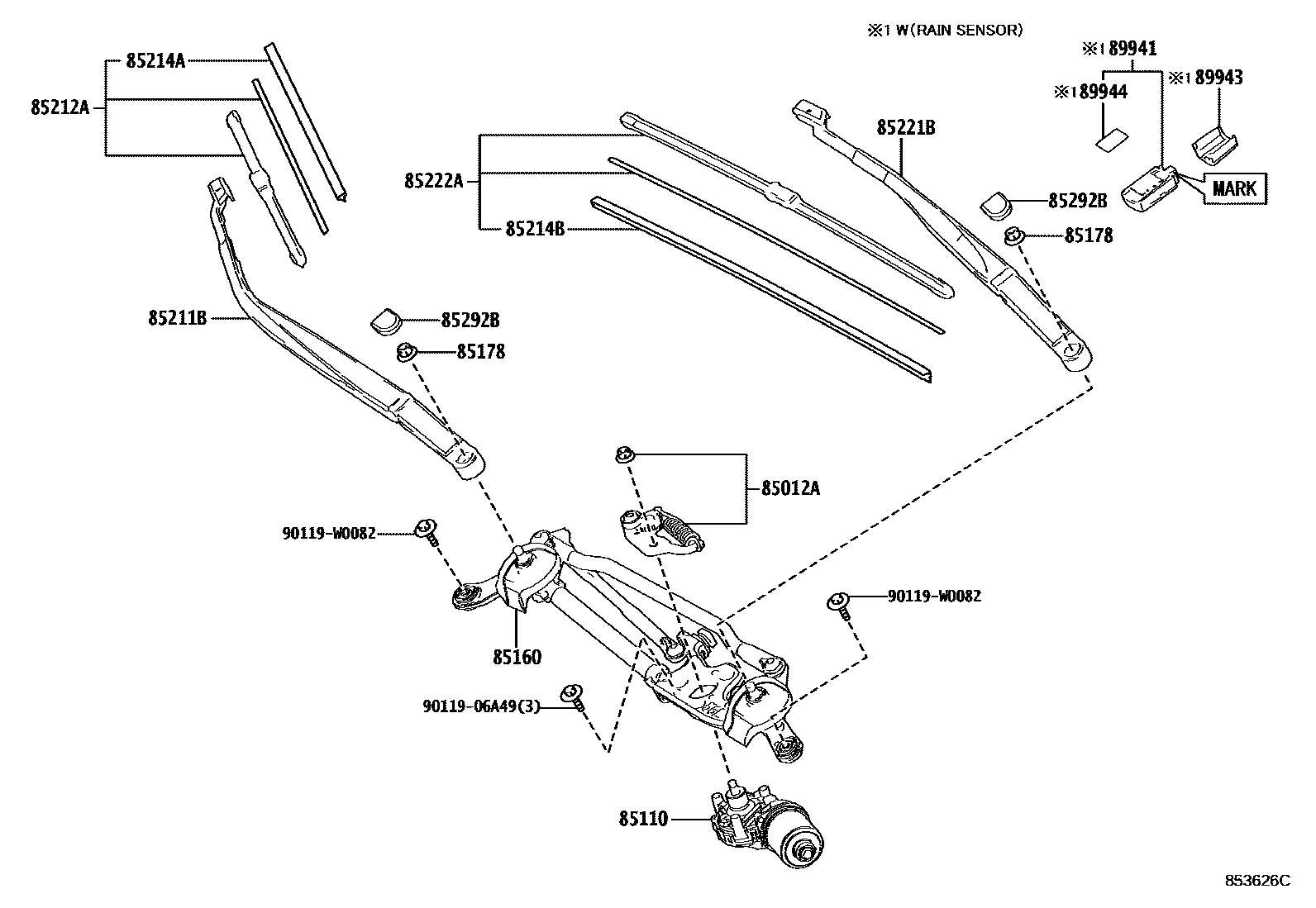

WINDSHIELD WIPER

85012ACRANK SUB-ASSY, FRONT WIPER

main85012-50010iZGX10201702-201909

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-F4050iZGX10201702-201909

85160LINK ASSY, WINDSHIELD WIPER

main85150-F4040iZGX10201702-201909

85178NUT (FOR FRONT WIPER ARM SETTING)

main90182-10006×2iZGX10201702-201909

85211BARM, FRONT WIPER, RH

main85211-F4040iZGX10201702-201712

main85211-F4041iZGX10201801-201909

85212ABLADE, FR WIPER, RH

main85212-F4010iZGX10201702-201807

main85212-F4011iZGX10201808-201909

85214ARUBBER, WIPER, RH

main85214-F4010iZGX10201702-201807

main85214-F4011iZGX10201808-201909

85214BRUBBER, WIPER, LH

main85214-F4020iZGX10201702-201807

main85214-F4021iZGX10201808-201909

85221BARM, FRONT WIPER, LH

main85221-F4040iZGX10201702-201909

85222ABLADE, FR WIPER, LH

main85222-F4030iZGX10201702-201807

main85222-F4031iZGX10201808-201909

85292BCAP, FRONT WIPER ARM HEAD

main85292-0F010×2iZGX10201702-201909

89941SENSOR, RAIN

main89941-F4010iZGX10201805-201907

LIMITED PACKAGE,MARK=89941-F4010

main89941-F4040iZGX10201907-201909

LIMITED PACKAGE,MARK=89941-F4040

89943COVER, RAIN SENSOR

main89943-F4011iZGX10201805-201907

LIMITED PACKAGE

main89943-F4040iZGX10201907-201909

LIMITED PACKAGE

89944TAPE, RAIN SENSOR

main89944-F4010iZGX10201805-201807

LIMITED PACKAGE

main89944-F4020iZGX10201808-201909

LIMITED PACKAGE

9011906A49

main90119-06A49

90119W0082

main90119-W0082

16 parts on this diagram · 1 diagram in section
